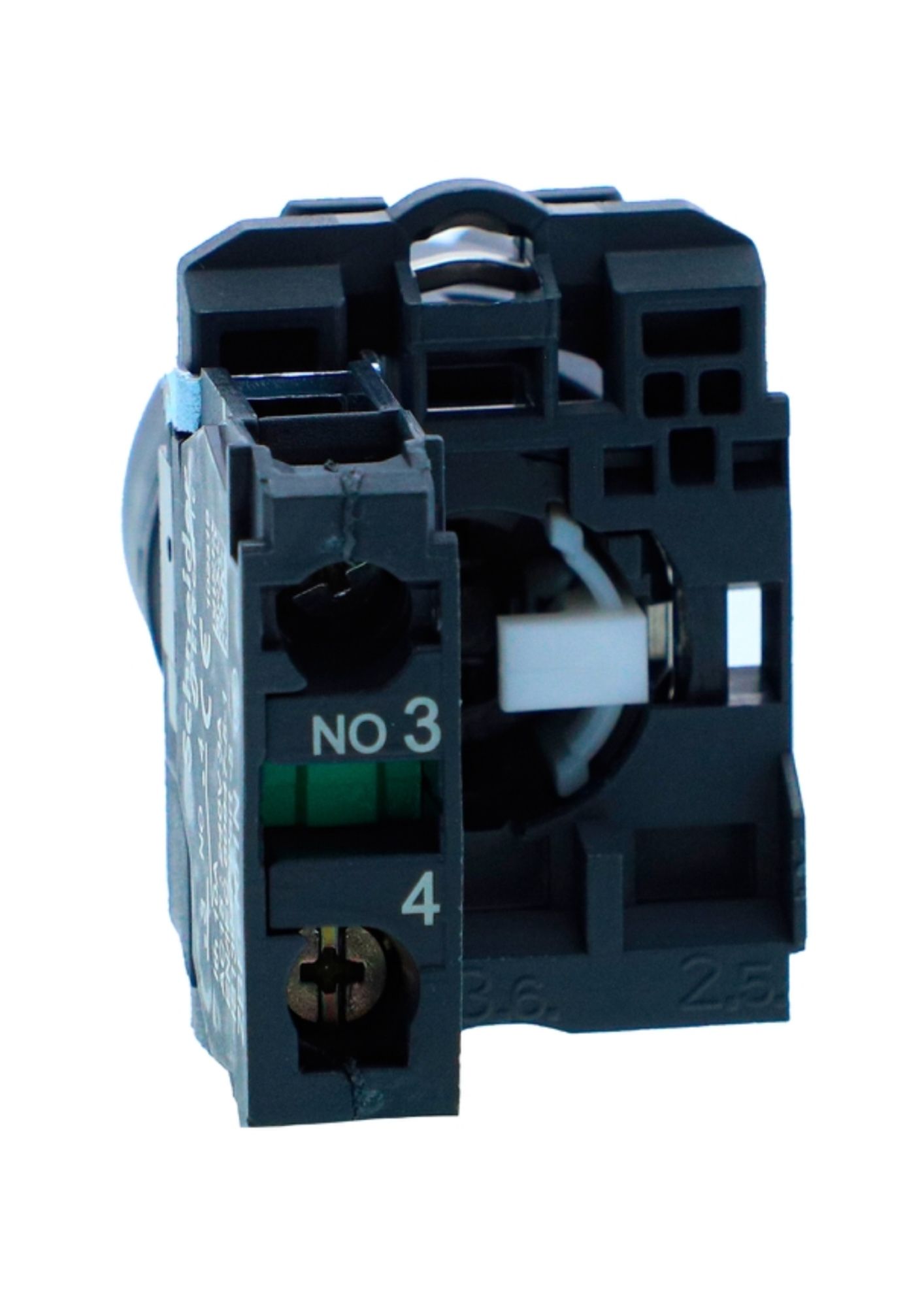

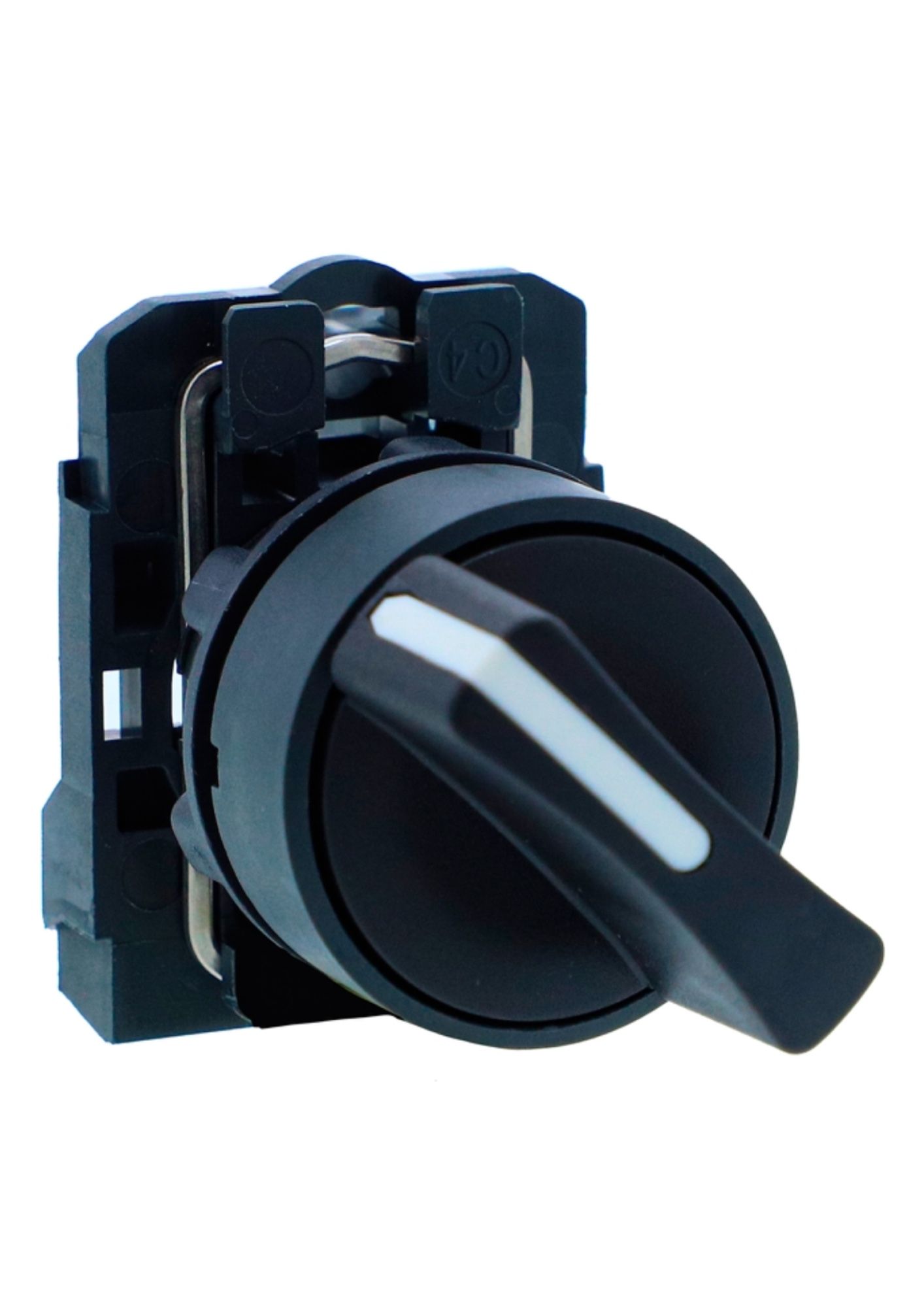

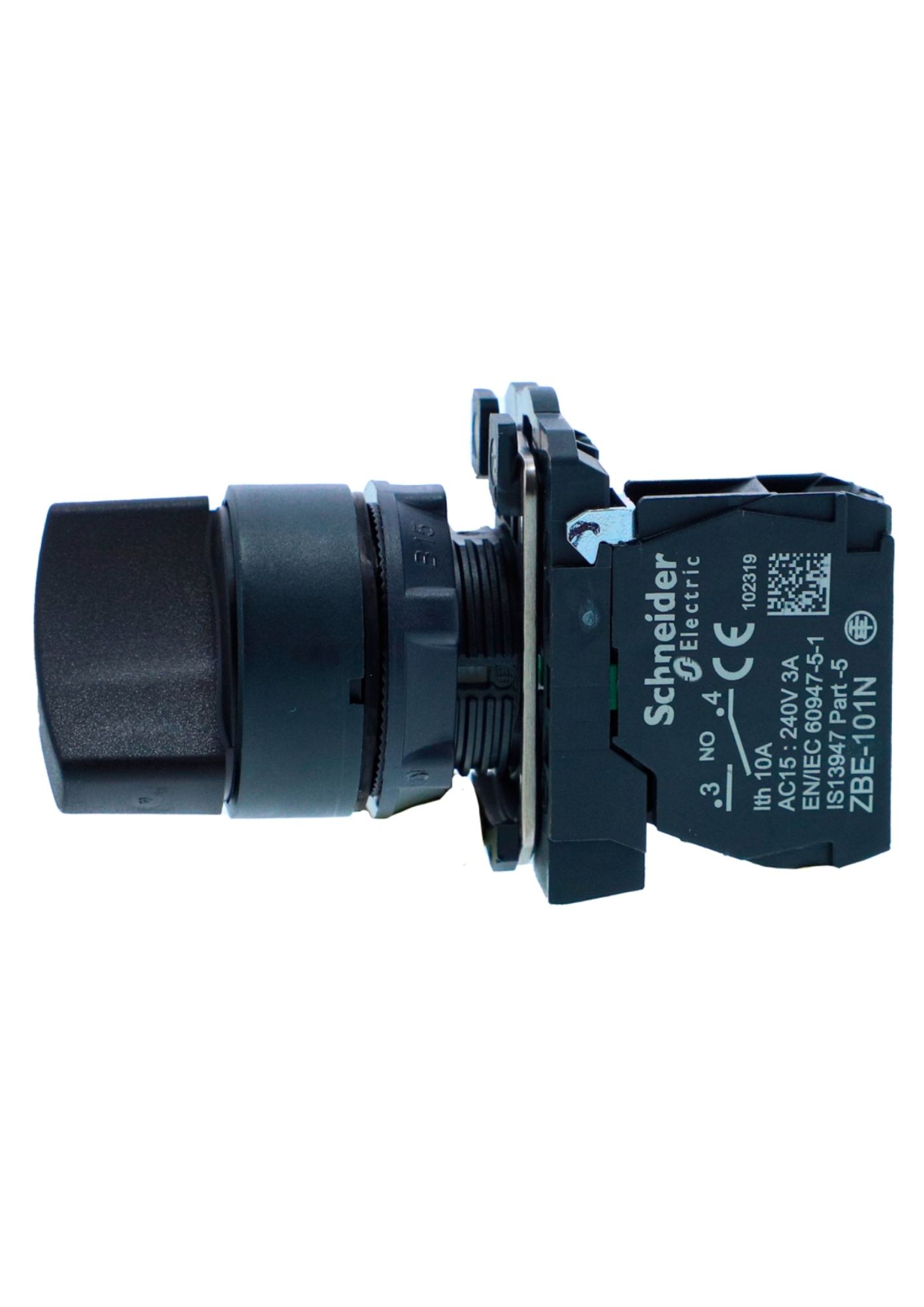

Schneider XB5AD21N, Selector switch, Harmony XB5, Plastic, Black, 22mm, Short handle, 2 position, Stay put, 1 NO
In stock
SKU
XB5AD21N
Special Price
₹291.00
Regular Price
₹485.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony XB5N |
| Product or component type | Selector switch |
| Device short name | XB5N |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Head type | Standard |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 20 |
| Shape of signaling unit head | Round |
| Type of operator | 2 stay put |
| Operator profile | Black standard handle |
| Operator position information | 2 positions 90° |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals |
Screw clamp terminals, ≤ 2 × 1.5 mm² with cable end (IEC 60947-1) Screw clamp terminals, ≥ 1 × 0.22 mm² without cable end (IEC 60947-1) |
| Complementary | |
| Height | 42 mm |
| Width | 30 mm |
| Depth | 70 mm |
| Terminals description ISO n°1 | (13-14) NO |

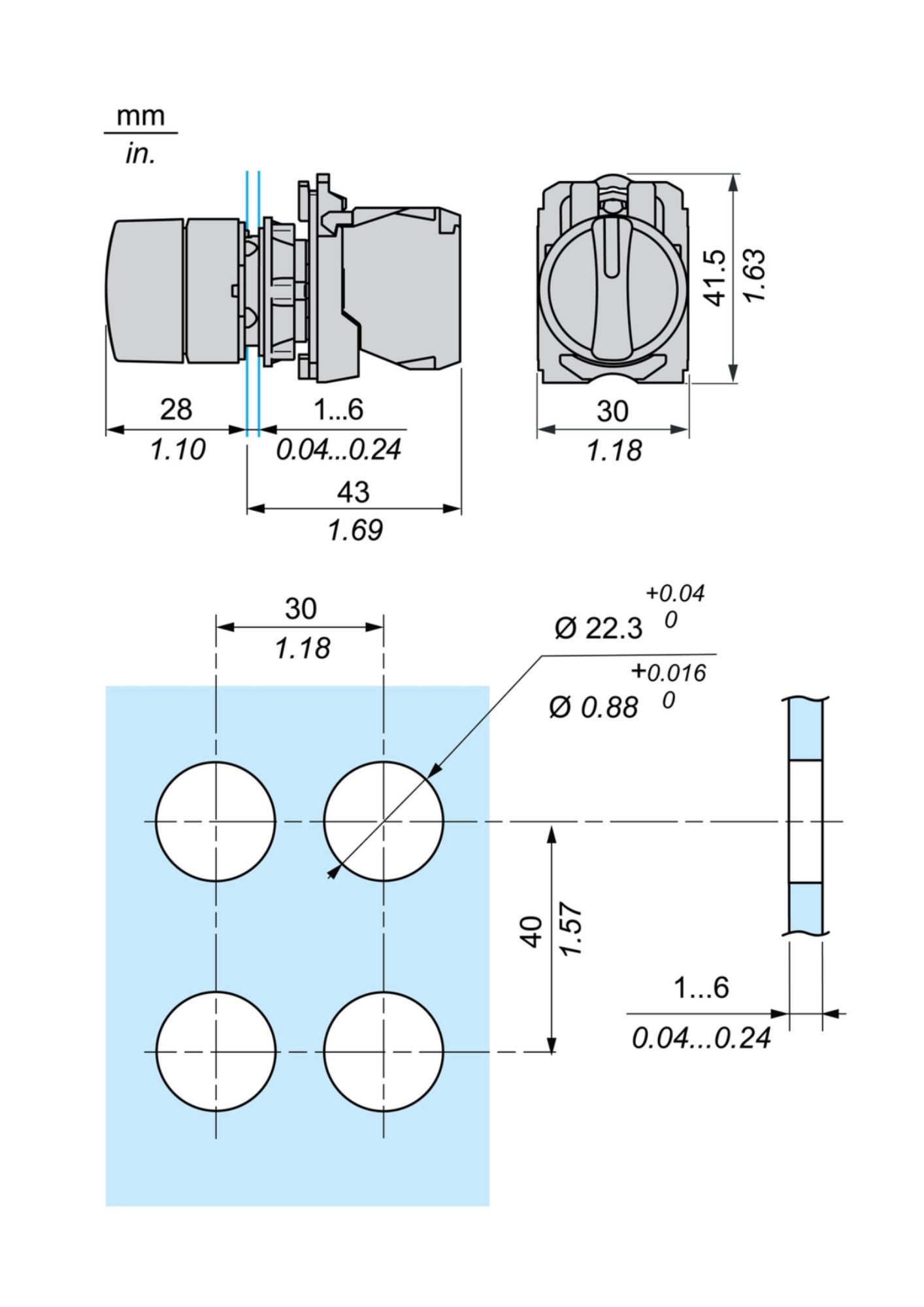

| Device mounting | Fixing hole Ø 22.5 mm (22.3 +0.4/0) IEC 60947-5-1 |
| Contacts usage | Standard contacts |
| Positive opening | Without |
| Torque value | 0.14 N·m NO changing electrical state |
| Mechanical durability | 1,000,000 cycles |
| Tightening torque | 0.8…1.2 N·m (IEC 60947-1) |
| Shape of screw head |
Cross (Philips No.1) Cross (Pozidriv No.1) Slotted (Flat Ø 4 mm) Slotted (Flat Ø 5.5 mm) |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG (IEC 60947-5-1) |
| [Ith] thermal current | 10 A (IEC 60947-5-1) |
| [Ui] insulation voltage | 600 V (pollution degree 3) |
| [Uimp] impulse withstand voltage | 6 kV |
| [Ie] rated operational current |
3 A at 240 V AC-15 A600 6 A at 120 V AC-15 A600 1.2 A at 600 V AC-15 A600 0.1 A at 600 V DC-13 Q600 0.27 A at 250 V DC-13 Q600 0.55 A at 125 V DC-13 Q600 |
| Electrical durability |
1,000,000 cycles (AC-15 2 A at 230 V) 1,000,000 cycles (AC-15 3 A at 120 V) 1,000,000 cycles (AC-15 4 A at 24 V) 1,000,000 cycles (DC-13 0.2 A at 110 V) 1,000,000 cycles (DC-13 0.5 A at 24 V) |
| Electrical reliability |
Λ < 10⁻⁶ at 5 V, 1 mA (clean environment) Λ < 10⁻⁸ at 17 V, 5 mA (clean environment) |
| Surge withstand | 1 kV (IEC 61000-4-5) |
| Device presentation | Complete product |
| Overvoltage category | Class II (IEC 60536) |
| Product compatibility | ZB5...N |
