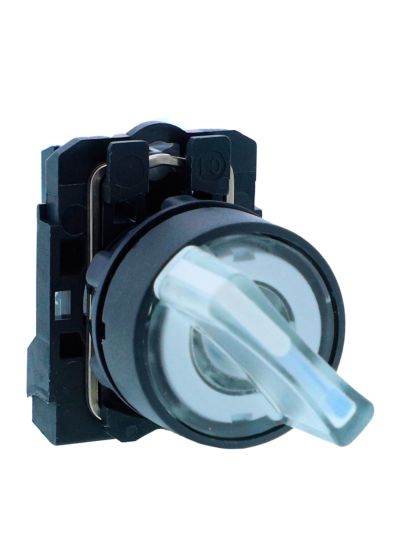

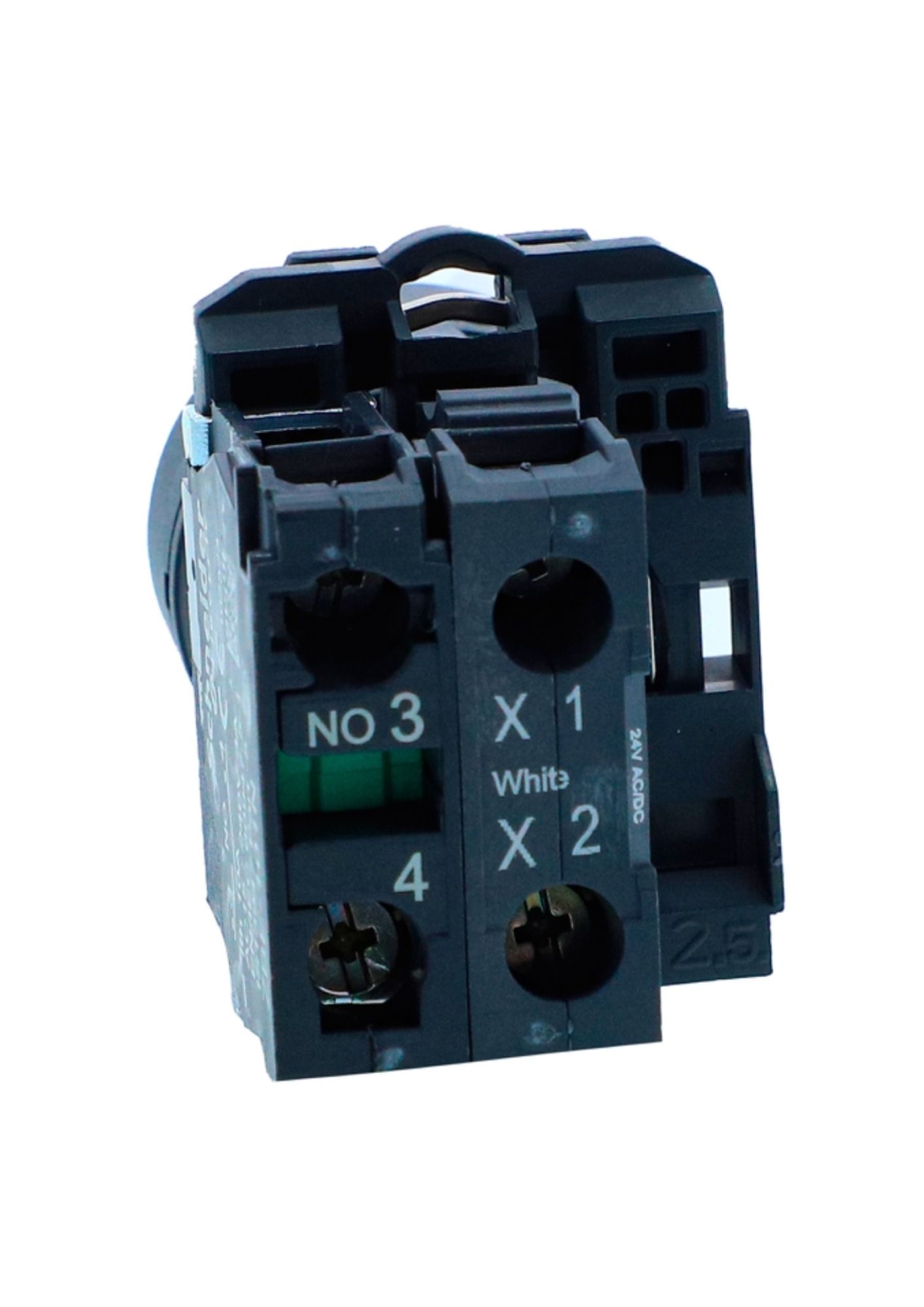

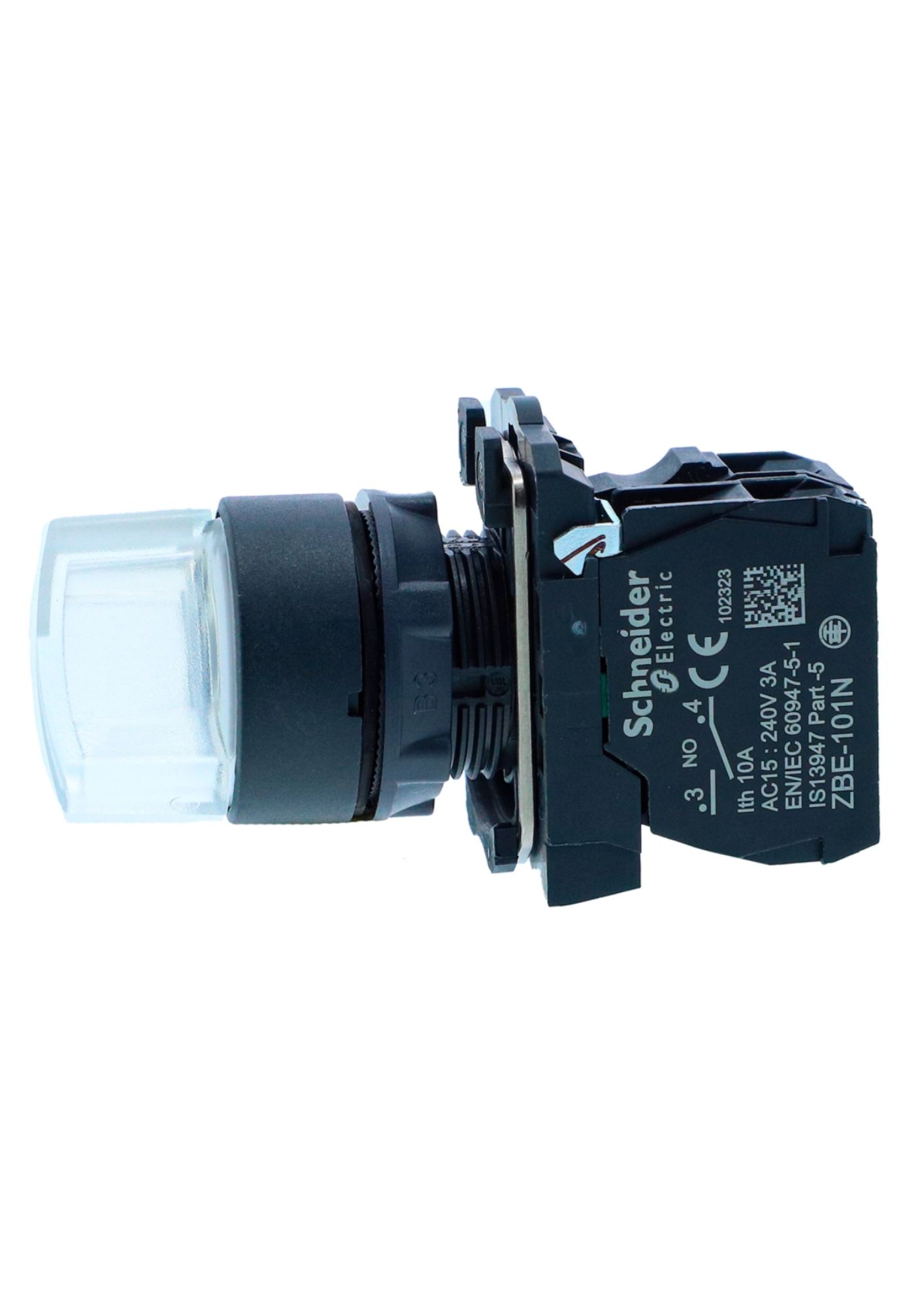

Schneider XB5AK121B1N, Ill selector switch, Harmony XB5, Plastic, White, 22mm, Short handle, 2 position, Stay put, 24V AC DC, 1 NO
In stock
SKU
XB5AK121B1N
Special Price
₹838.80
Regular Price
₹1,398.00
Schneider XB5AK121B1N, Ill selector switch, Harmony XB5, Plastic, White, 22mm, Short handle, 2 position, Stay put, 24V AC DC, 1 NO is available to buy in increments of 1
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony XB5N |
| Product or component type | Illuminated selector switch |
| Device short name | XB5N |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Head type | Standard |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 20 |
| Shape of signaling unit head | Round |
| Type of operator | 2 stay put |
| Operator profile | White standard handle (white) |
| Operator position information | 2 positions 90° |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals |
Screw clamp terminals, ≤ 2 × 1.5 mm² with cable end (IEC 60947-1) Screw clamp terminals, ≥ 1 × 0.22 mm² without cable end (IEC 60947-1) |

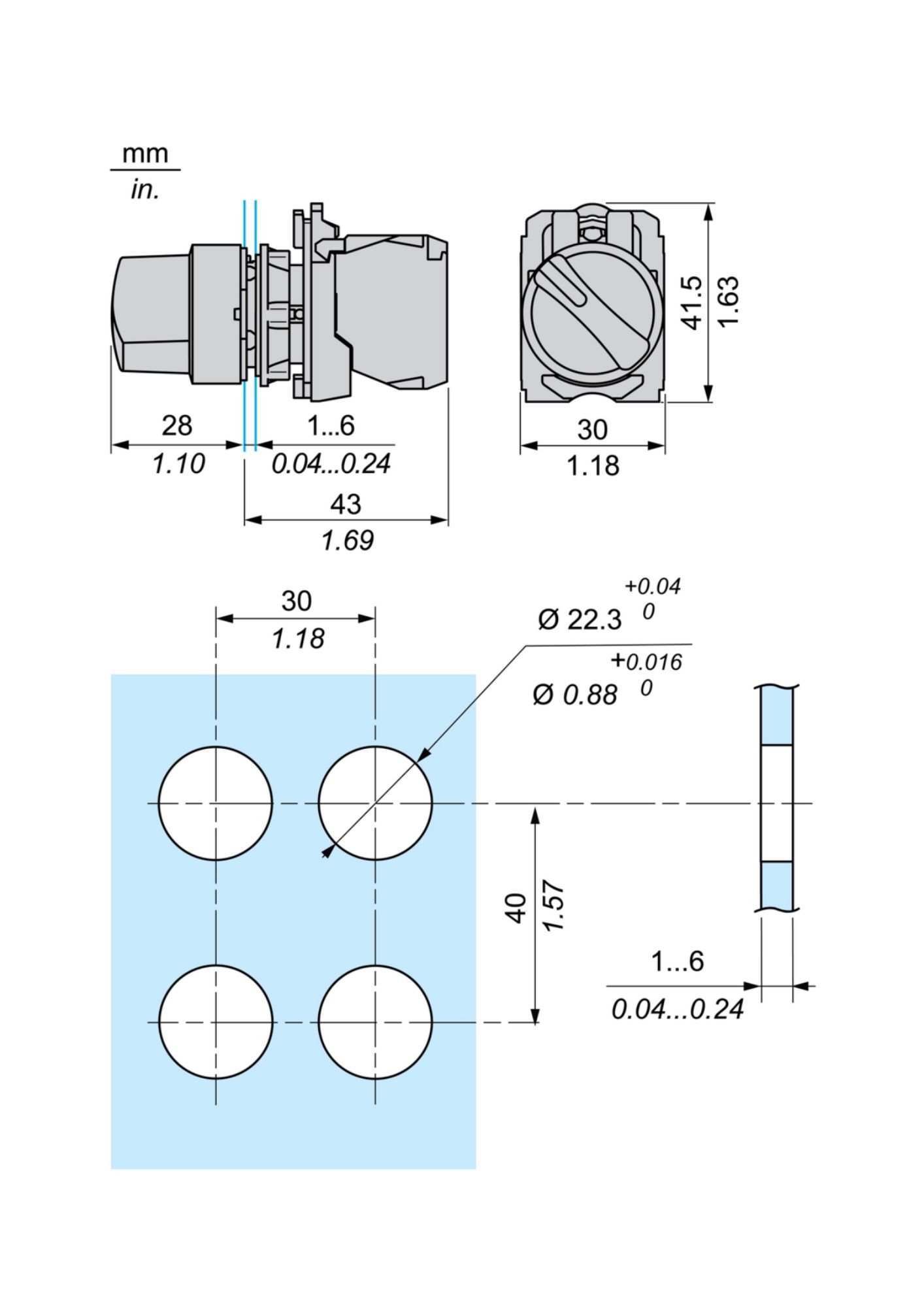

| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Complementary | |
| Height | 42 mm |
| Width | 30 mm |
| Depth | 70 mm |
| Terminals description ISO n°1 | (13-14) NO (23-24) NO |
| Device mounting | Fixing hole Ø 22.5 mm (22.3 +0.4/0) IEC 60947-5-1 |
| Fixing mode | Fixing nut, torque 2.2 N·m (±0.2 N·m) |
| Contacts usage | Standard contacts |
| Positive opening | Without |
| Torque value | 0.14 N·m (NO changing electrical state) |
| Mechanical durability | 500000 cycles |
| Tightening torque | 0.8…1.2 N·m (IEC 60947-1) |
| Shape of screw head |
Cross (Philips no.1) Cross (Pozidriv no.1) Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A gG fuse (IEC 60947-5-1) |
| [Ith] | 10 A (IEC 60947-5-1) |
| [Ui] | 600 V (pollution degree 3) IEC 60947-1 |
| [Uimp] | 6 kV (IEC 60947-1) |
| [Ie] rated operational current |
3 A at 240 V AC-15 A600 6 A at 120 V AC-15 A600 0.1 A at 600 V DC-13 Q600 0.27 A at 250 V DC-13 Q600 0.55 A at 125 V DC-13 Q600 1.2 A at 600 V AC-15 A600 |
| Electrical durability |
1,000,000 cycles (AC-15 2 A at 230 V) 1,000,000 cycles (AC-15 3 A at 120 V) 1,000,000 cycles (AC-15 4 A at 24 V) 1,000,000 cycles (DC-13 0.2 A at 110 V) 1,000,000 cycles (DC-13 0.5 A at 24 V) |
| Electrical reliability |
Λ < 10⁻⁶ at 5 V, 1 mA Λ < 10⁻⁸ at 17 V, 5 mA |
| Supply voltage limits | 19.2…30 V DC / 21.6…26.4 V AC |
| Current consumption | 18 mA |
| Service life | 100000 h at rated voltage and 25°C |
| Surge withstand | 1 kV (IEC 61000-4-5) |
| Device presentation | Complete product |
| Light source colour | White |
| Overvoltage category | Class II (IEC 60536) |
| Product compatibility | ZB5...N |
| Light block supply | Direct |
