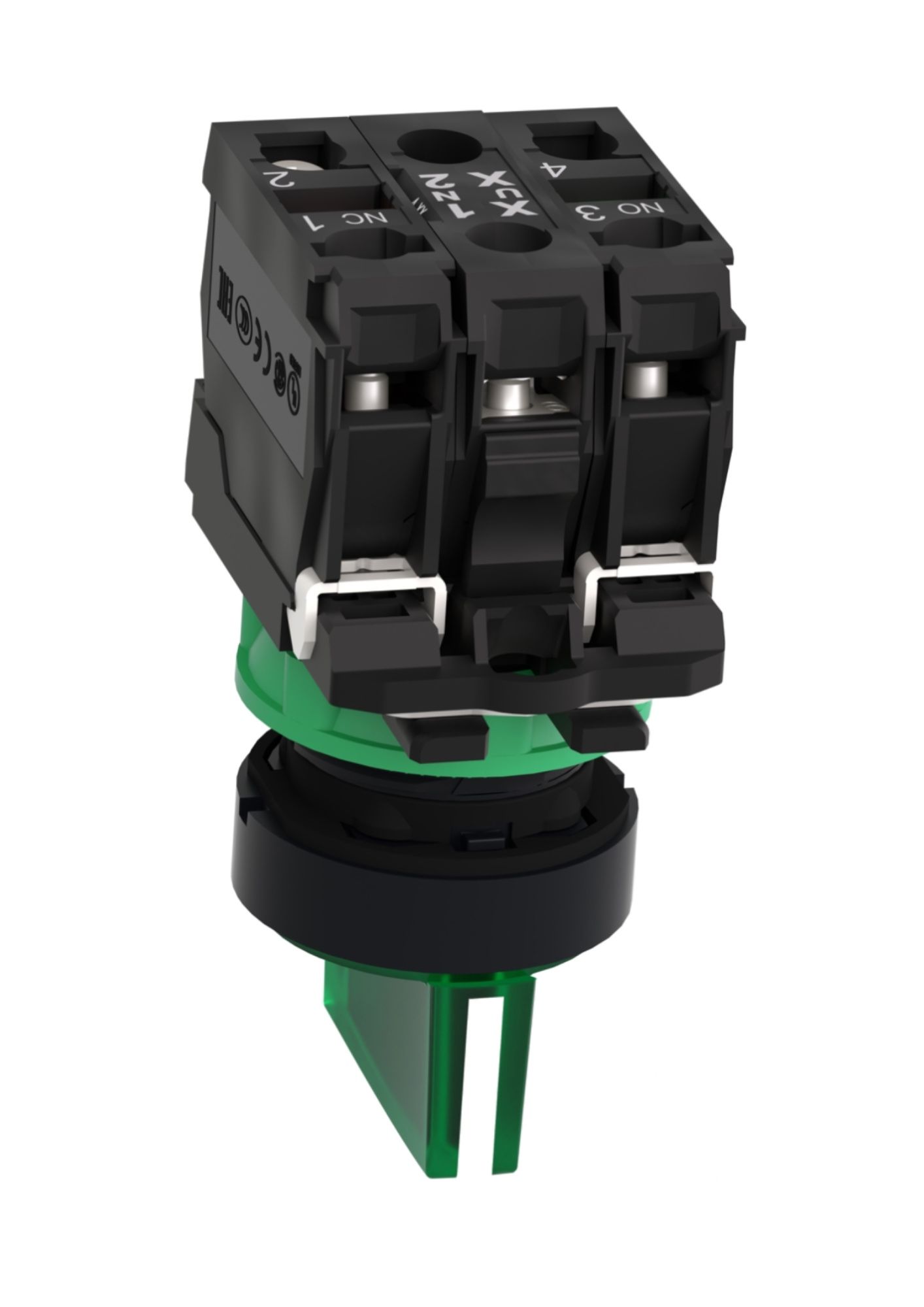

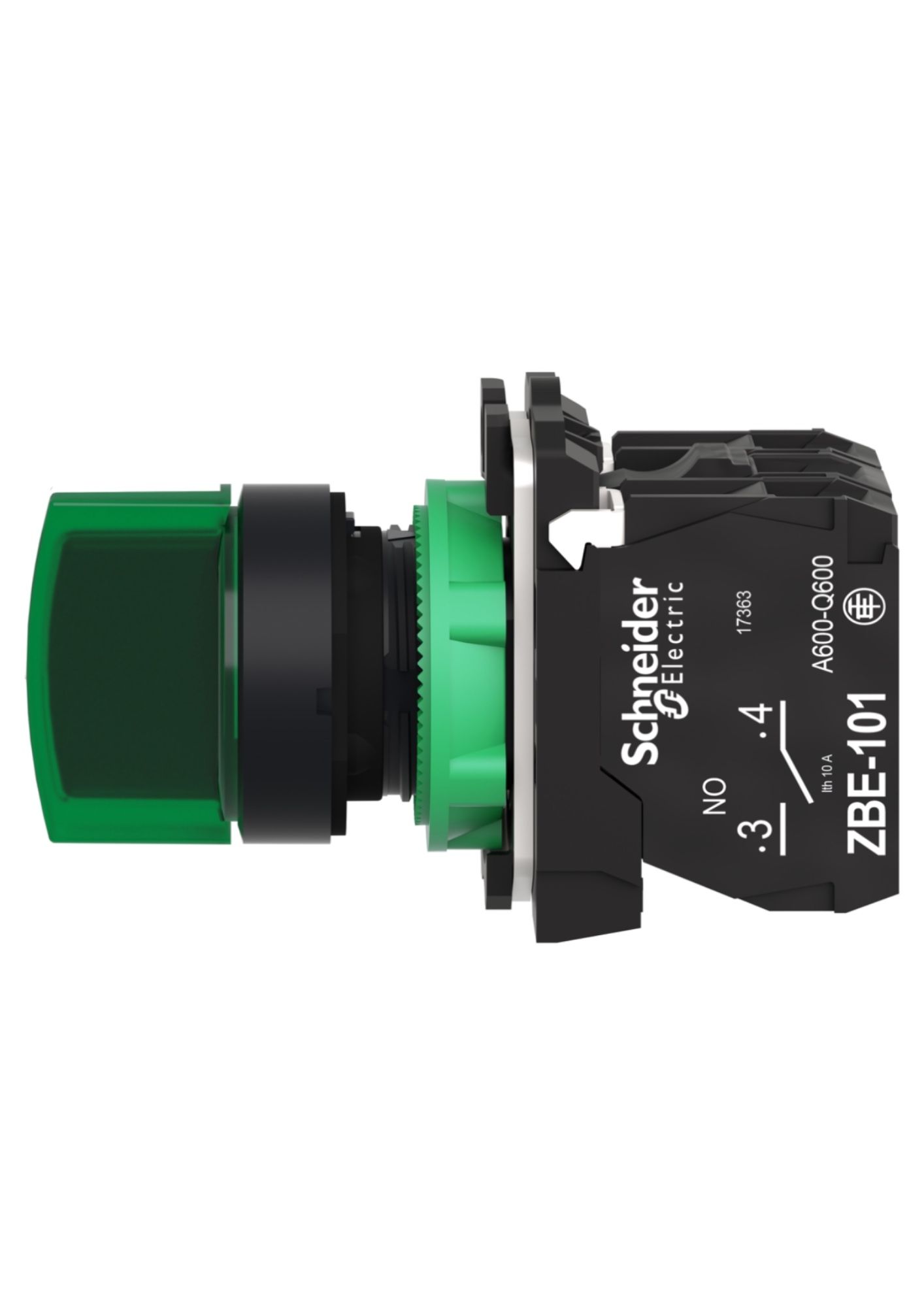

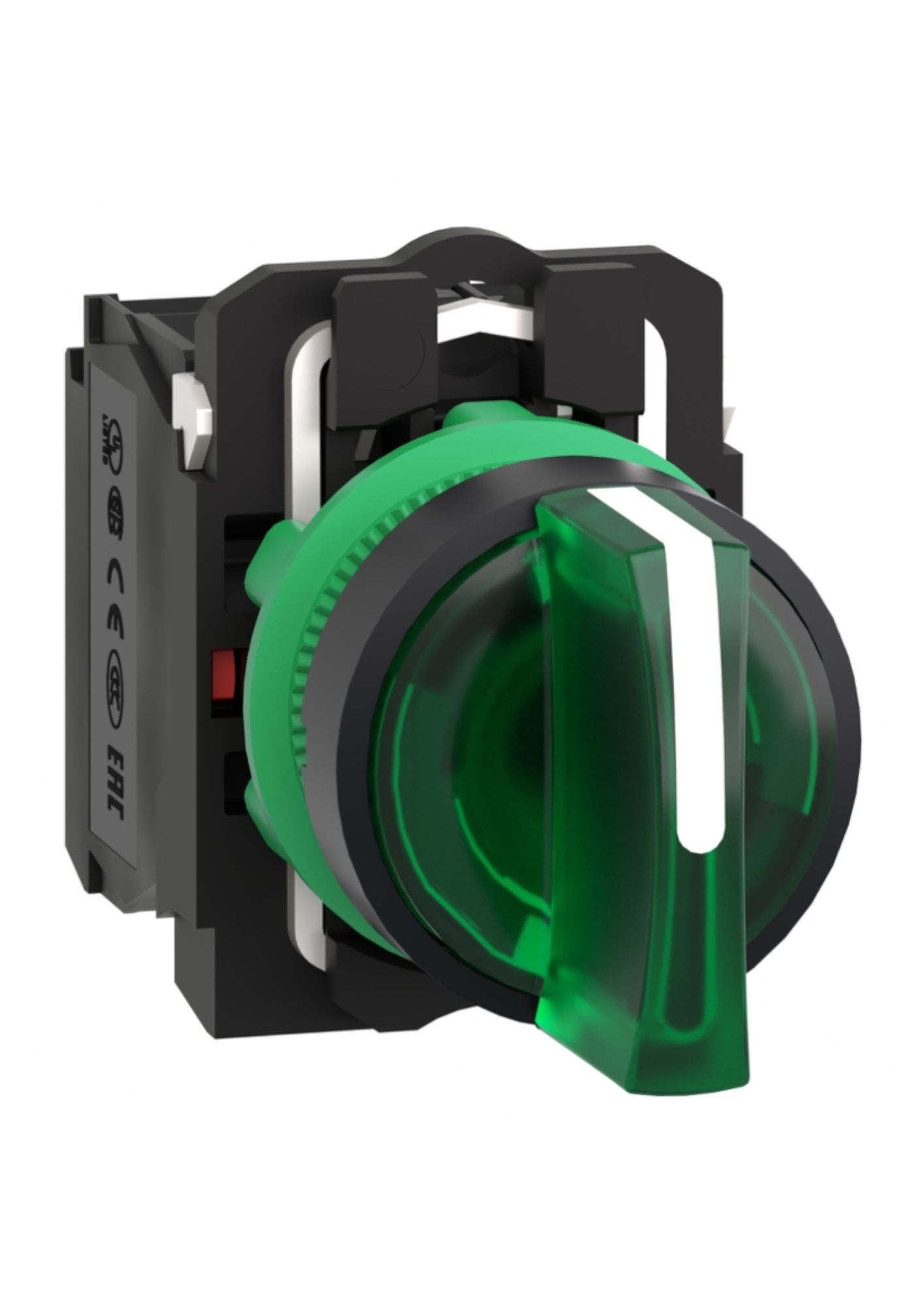

Schneider XB5AK133B3N, Illuminated selector switch, Harmony XB5, Grey plastic, Green handle, 22mm, 3 positions, Universal LED, 1NO + 1NC, 24V AC/DC
In stock
SKU
XB5AK133B3N
Special Price
₹520.80
Regular Price
₹868.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony XB5 |
| Product or component type | Illuminated selector switch |
| Device short name | XB5 |
| Bezel material | Dark grey plastic |
| Head type | Standard |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | Stay put |
| Operator profile | Green standard handle |
| Operator position information | 3 positions +/- 45° |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals |
Screw clamp terminals, ≤ 2 × 1.5 mm² with cable end (IEC 60947-1) Screw clamp terminals, ≥ 1 × 0.22 mm² without cable end (IEC 60947-1) |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| Complementary | |

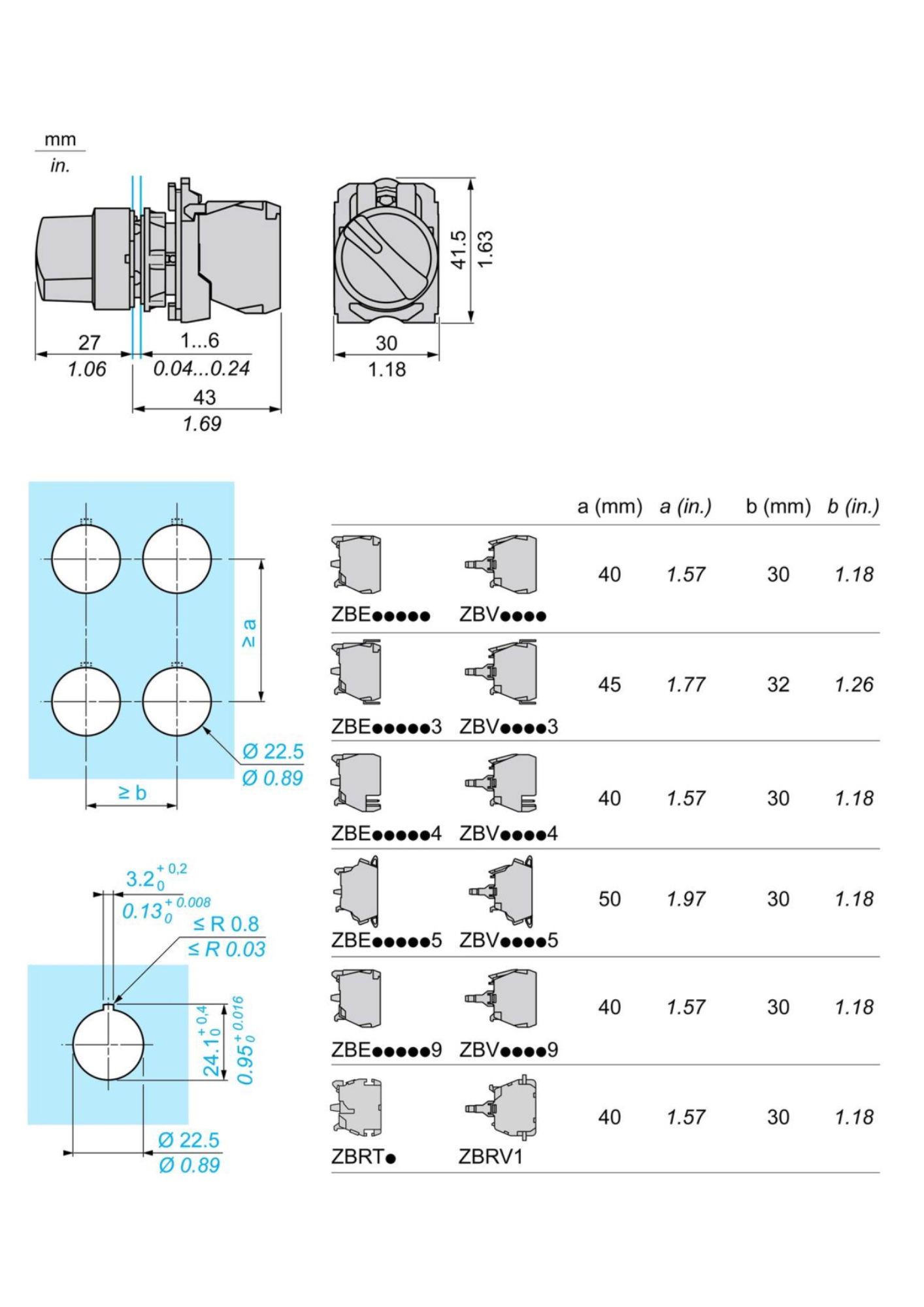

| Height | 42 mm |
| Width | 30 mm |
| Depth | 70 mm |

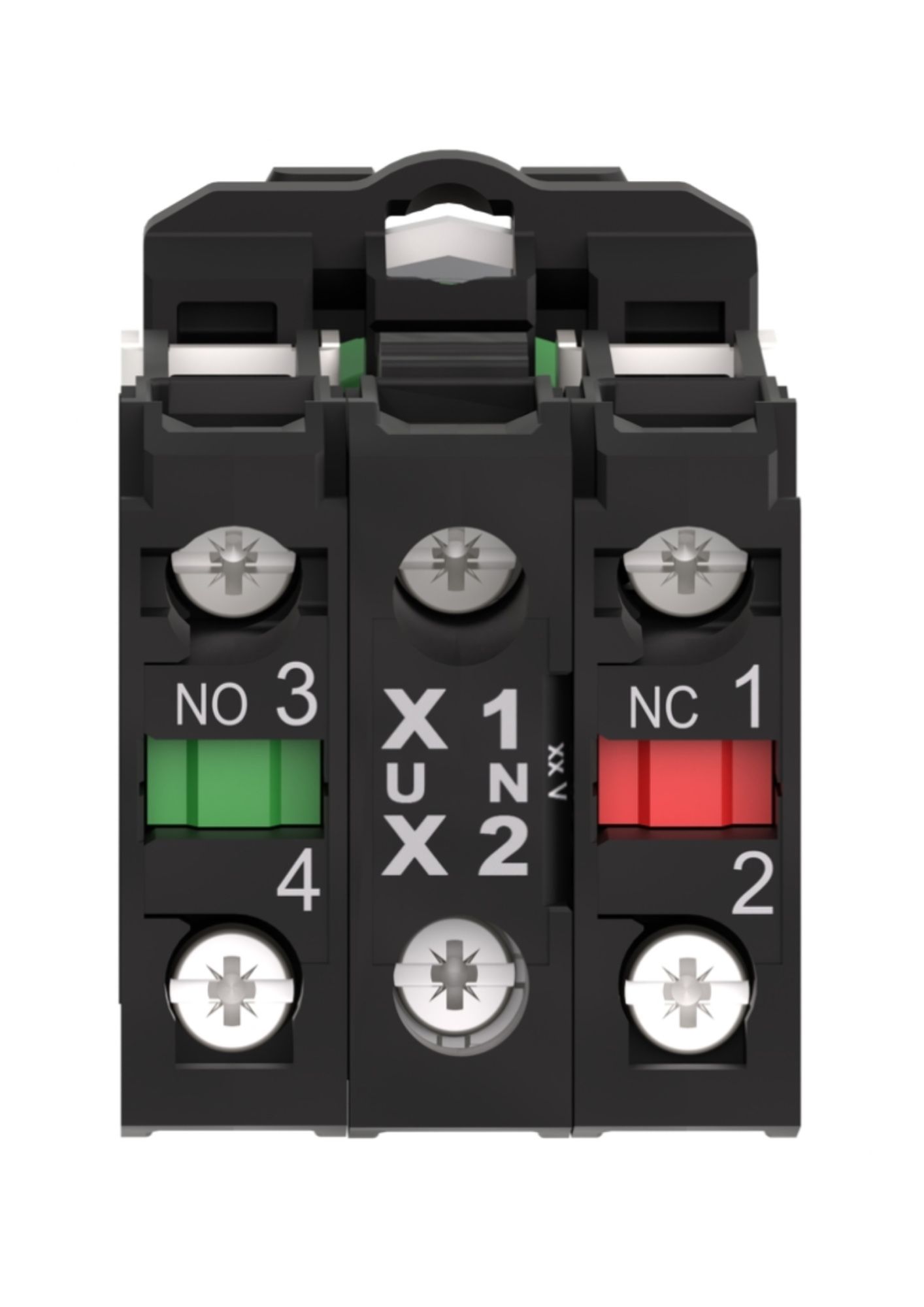

| Terminals description ISO n°1 | (11-12) NC (13-14) NO |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance: 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With (IEC 60947-5-1 Appendix K) |
| Operating torque | 0.14 N·m NO changing electrical state |
| Mechanical durability | 500000 cycles |
| Tightening torque | 0.8…1.2 N·m (IEC 60947-1) |
| Shape of screw head |
Cross Philips no.1 Cross Pozidriv no.1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG (IEC 60947-5-1) |
| [Ith] conventional free air thermal current | 10 A (IEC 60947-5-1) |
| [Ui] rated insulation voltage | 600 V, pollution degree 3 (IEC 60947-1) |
| [Uimp] rated impulse withstand voltage | 6 kV (IEC 60947-1) |
| [Ie] rated operational current |
3 A at 240 V AC-15 A600 6 A at 120 V AC-15 A600 1.2 A at 600 V AC-15 A600 0.1 A at 600 V DC-13 Q600 0.27 A at 250 V DC-13 Q600 0.55 A at 125 V DC-13 Q600 |
| Electrical durability |
1,000,000 cycles (AC-15, 230 V, 2 A) 1,000,000 cycles (AC-15, 120 V, 3 A) 1,000,000 cycles (AC-15, 24 V, 4 A) 1,000,000 cycles (DC-13, 110 V, 0.2 A) 1,000,000 cycles (DC-13, 24 V, 0.5 A) |
| Electrical reliability |
Λ < 10⁻⁶ at 5 V, 1 mA (IEC 60947-5-4) Λ < 10⁻⁸ at 17 V, 5 mA (IEC 60947-5-4) |
| Signalling type | Steady |
| Light source | Universal LED |
| Supply voltage limits | 19.2…30 V DC 21.6…26.4 V AC |
| Current consumption | 18 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV (IEC 61000-4-5) |
| Device presentation | Complete product |
