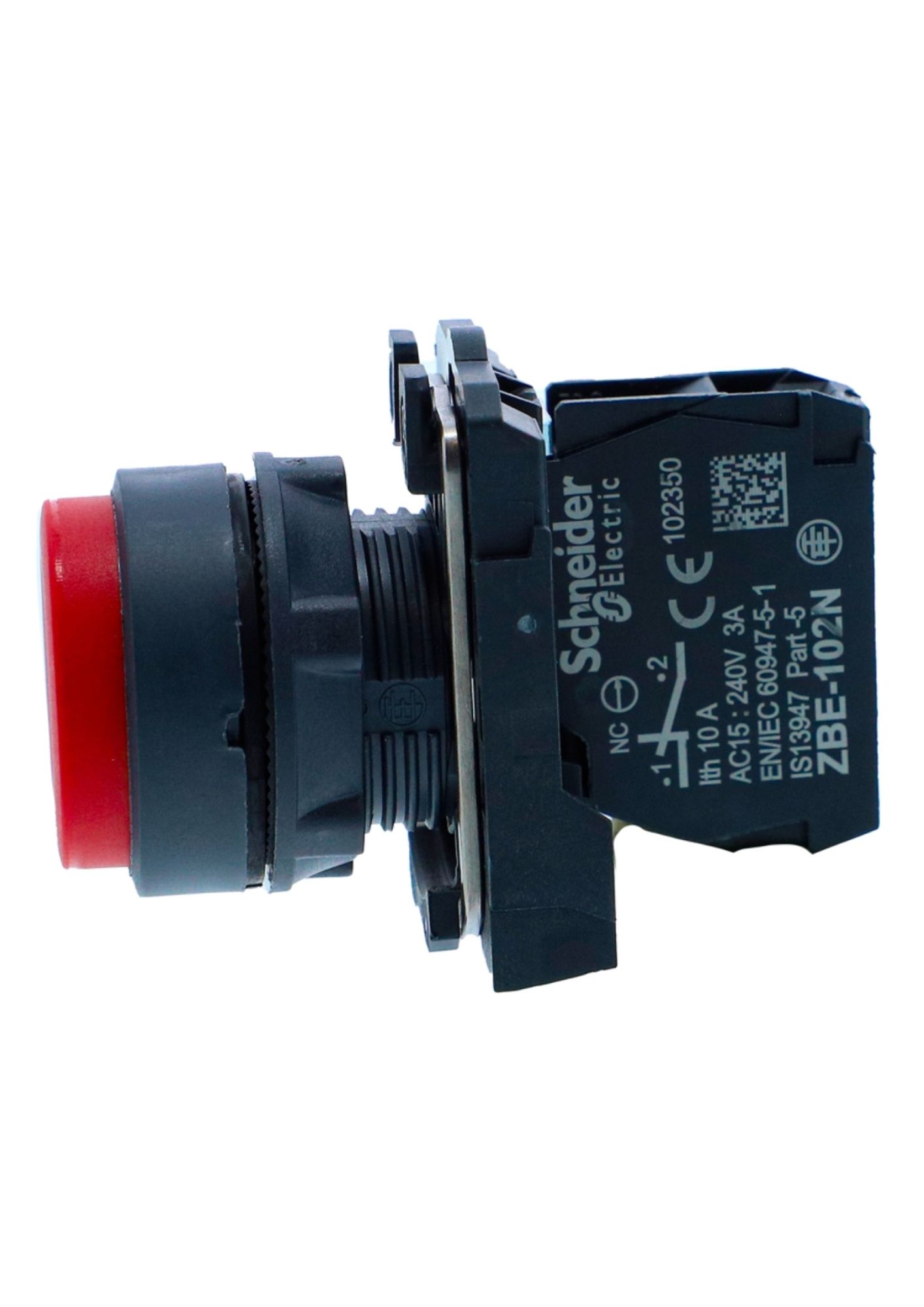

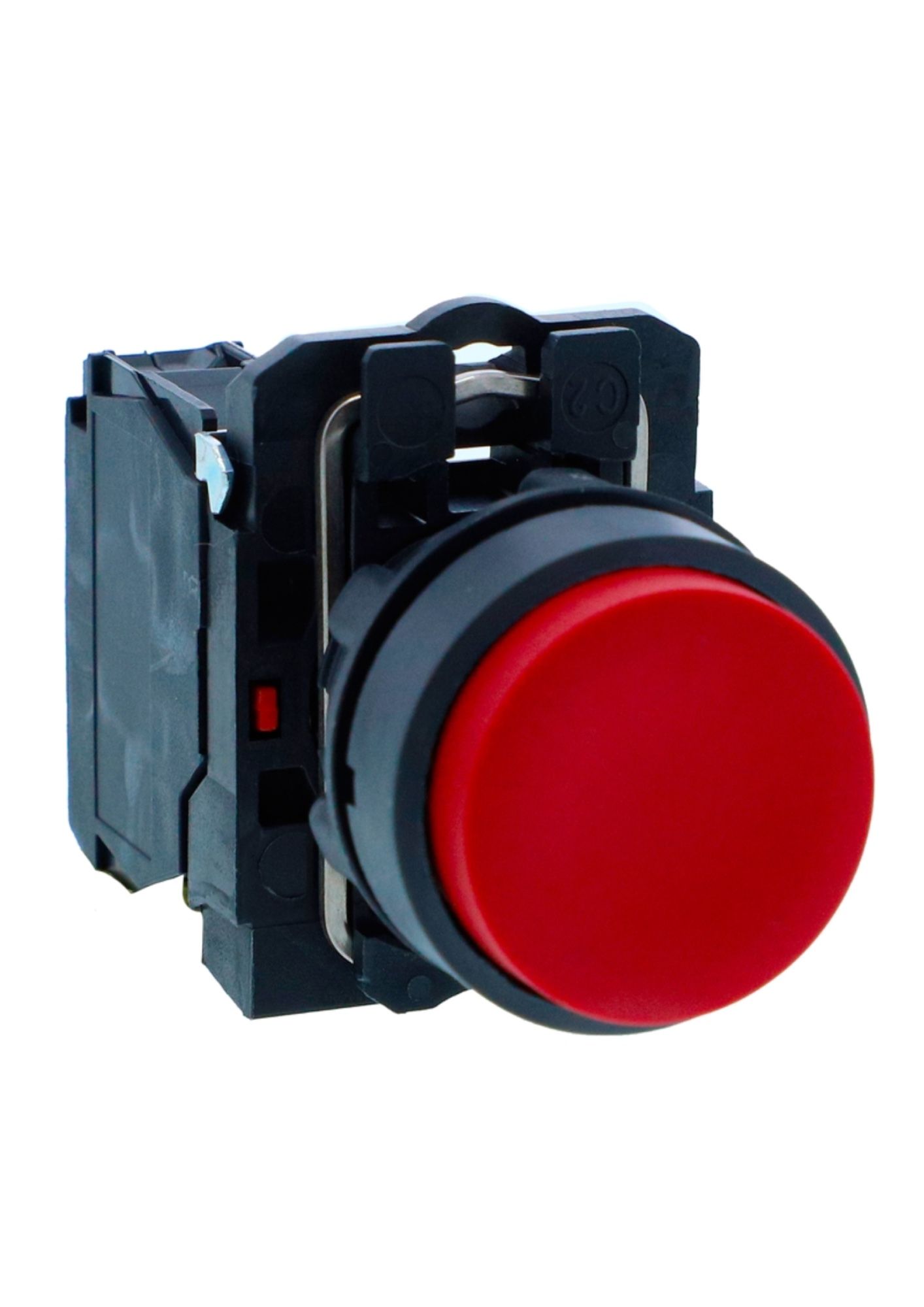

Schneider XB5AL42N, Push button, Harmony XB5, Plastic, Projecting, Red, 22mm, Spring Return, Unmarked, 1 NC
In stock
SKU
XB5AL42N
Special Price
₹114.24
Regular Price
₹238.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony XB5N |
| Product or component type | Push-button |
| Device short name | XB5N |
| Product compatibility | ZB5...N |
| Bezel material | Dark grey plastic |
| Head type | Standard |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 20 |
| Shape of signaling unit head | Round |
| Type of operator | Spring return |
| Operator profile | Red projecting, unmarked |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| Connections - terminals |
Screw clamp terminals, ≤ 2 × 1.5 mm² with cable end (IEC 60947-1) Screw clamp terminals, ≥ 1 × 0.22 mm² without cable end (IEC 60947-1) |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| Complementary | |
| Height | 42 mm |
| Width | 30 mm |
| Depth | 57 mm |
| Terminals description ISO no.1 | (11-12) NC |

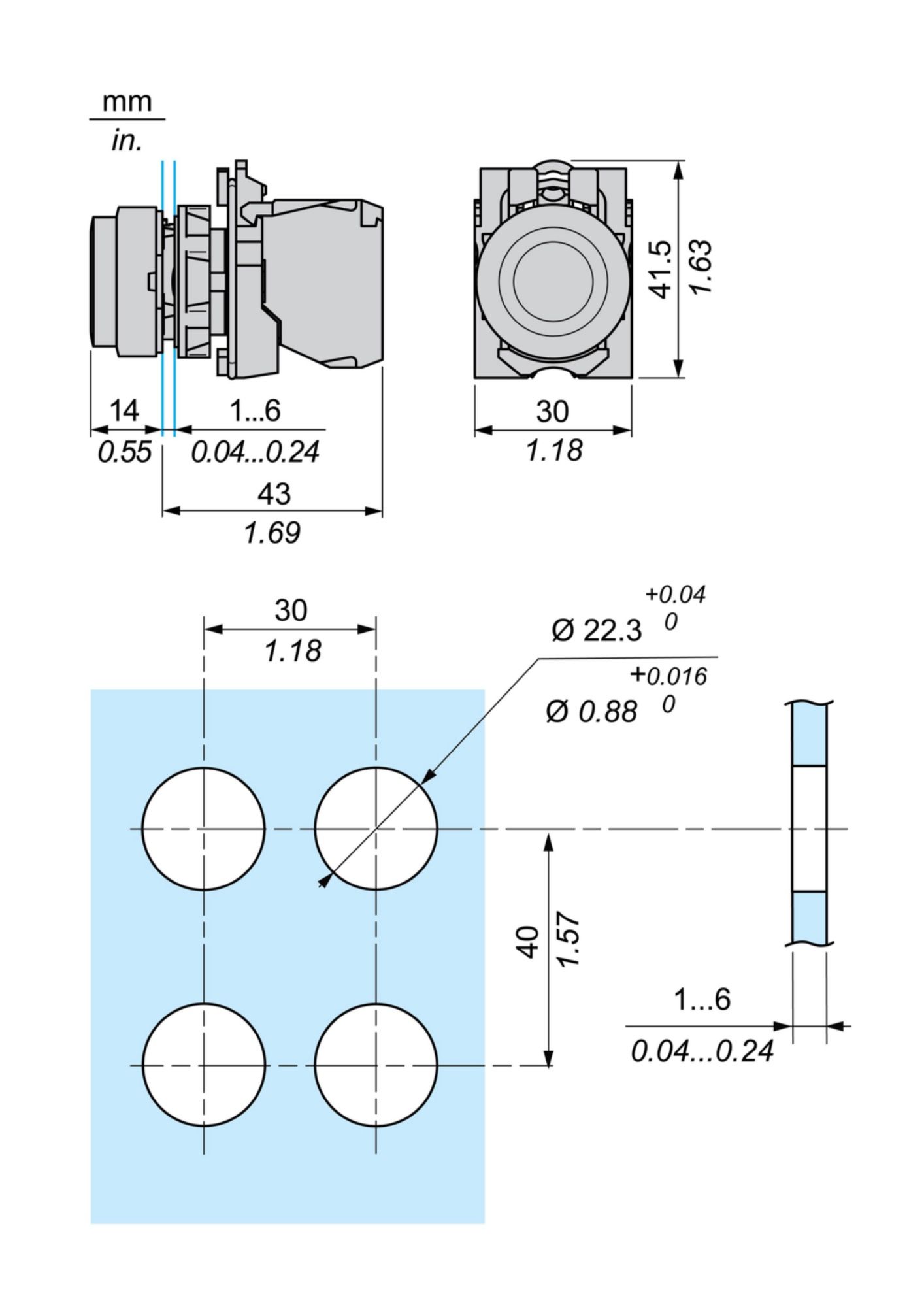

| Device mounting | Fixing hole – diameter: 22.5 mm 22.3 +0.4/0 (IEC 60957-5-1) |
| Fixing mode | Fixing nut recommended torque: 2.2 N·m (±0.2 N·m) |
| Contacts usage | Standard contacts |
| Positive opening | With (IEC 60947-5-1 appendix K) |
| Operating travel |
1.5 mm (NC electrical change) 2.6 mm (NO electrical change) 4.3 mm (total travel) |
| Operating force |
3.5 N (NC) 3.8 N (NO) |
| Mechanical durability | 5,000,000 cycles |
| Tightening torque | 0.8–1.2 N·m (IEC 60947-1) |
| Shape of screw head |
Cross – Philips no.1 Cross – Pozidriv no.1 Slotted – flat Ø 4 mm Slotted – flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG (IEC 60947-5-1) |
| [Ith] thermal current | 10 A (IEC 60947-5-1) |
| [Ui] insulation voltage | 600 V (pollution degree 3, IEC 60947-1) |
| [Uimp] impulse withstand voltage | 6 kV |
| [Ie] rated operational current |
3 A at 240 V AC-15 (A600) 0.55 A at 125 V DC-13 (Q600) 0.1 A at 600 V DC-13 (Q600) 0.27 A at 250 V DC-13 (Q600) 1.2 A at 600 V AC-15 (A600) 6 A at 120 V AC-15 (A600) |
| Electrical durability |
1,000,000 cycles AC-15, 2 A at 230 V 1,000,000 cycles AC-15, 3 A at 120 V 1,000,000 cycles AC-15, 4 A at 24 V 1,000,000 cycles DC-13, 0.2 A at 110 V 1,000,000 cycles AC-13, 0.5 A at 24 V |
| Electrical reliability |
Λ < 10⁻⁶ at 5 V, 1 mA (IEC 60947-5-4) Λ < 10⁻⁸ at 17 V, 5 mA (IEC 60947-5-4) |
| Device presentation | Complete product |
| Customizable | No |
| Compatibility code | XB5 |
