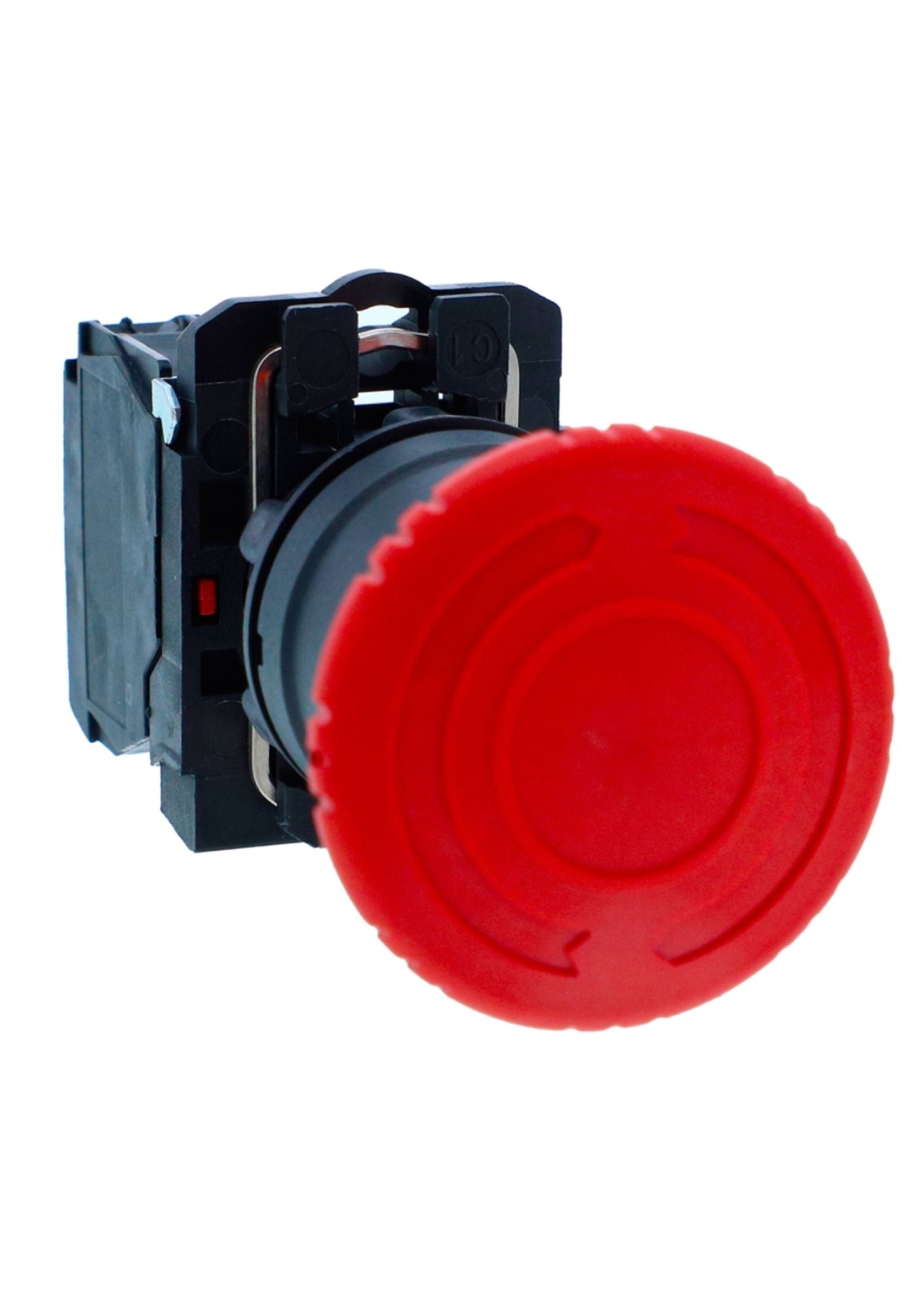

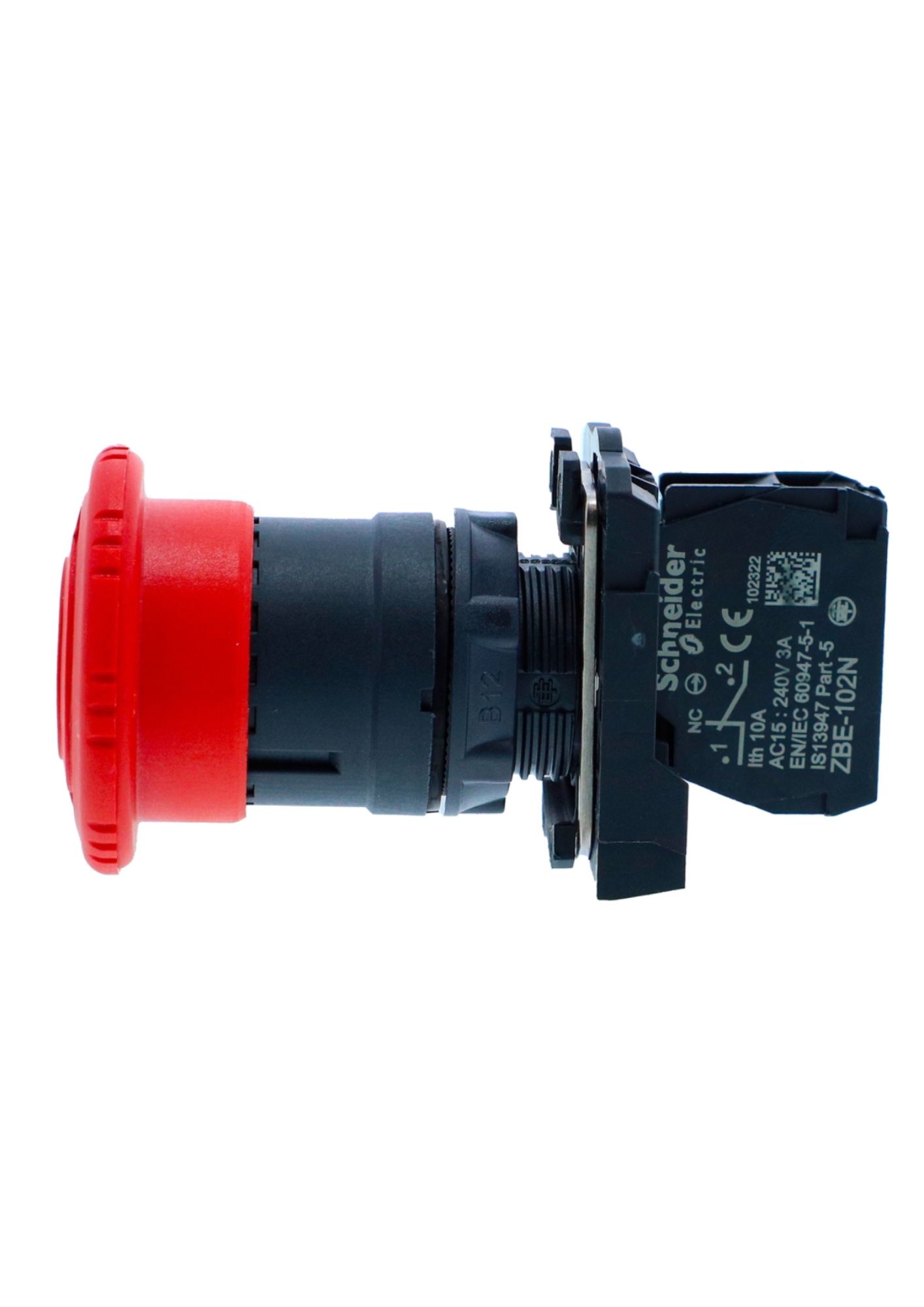

Schneider XB5AS542N, Emergency switching off push button, Harmony XB5, Plastic, Red, 40mm, Turn to Release, 1 NC
In stock
SKU
XB5AS542N
Special Price
₹179.04
Regular Price
₹373.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
| Range of product | Harmony XB5 |
| Product or component type | Emergency switching off push-button |
| Device short name | XB5N |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Head type | Mushroom |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 20 |
| Shape of signaling unit head | Round |
| Type of operator | Turn to release mechanical latching |
| Reset | Turn to release |
| Operator profile | Red mushroom Ø 40 mm, unmarked |
| Contact operation | Slow-break |
| Connections - terminals |
Screw clamp terminals, ≤ 2 × 1.5 mm² with cable end (IEC 60947-1) Screw clamp terminals, ≥ 1 × 0.22 mm² without cable end (IEC 60947-1) |
| Device presentation | Complete product |
| Contacts type and composition | 1 NC |
| Complementary | |

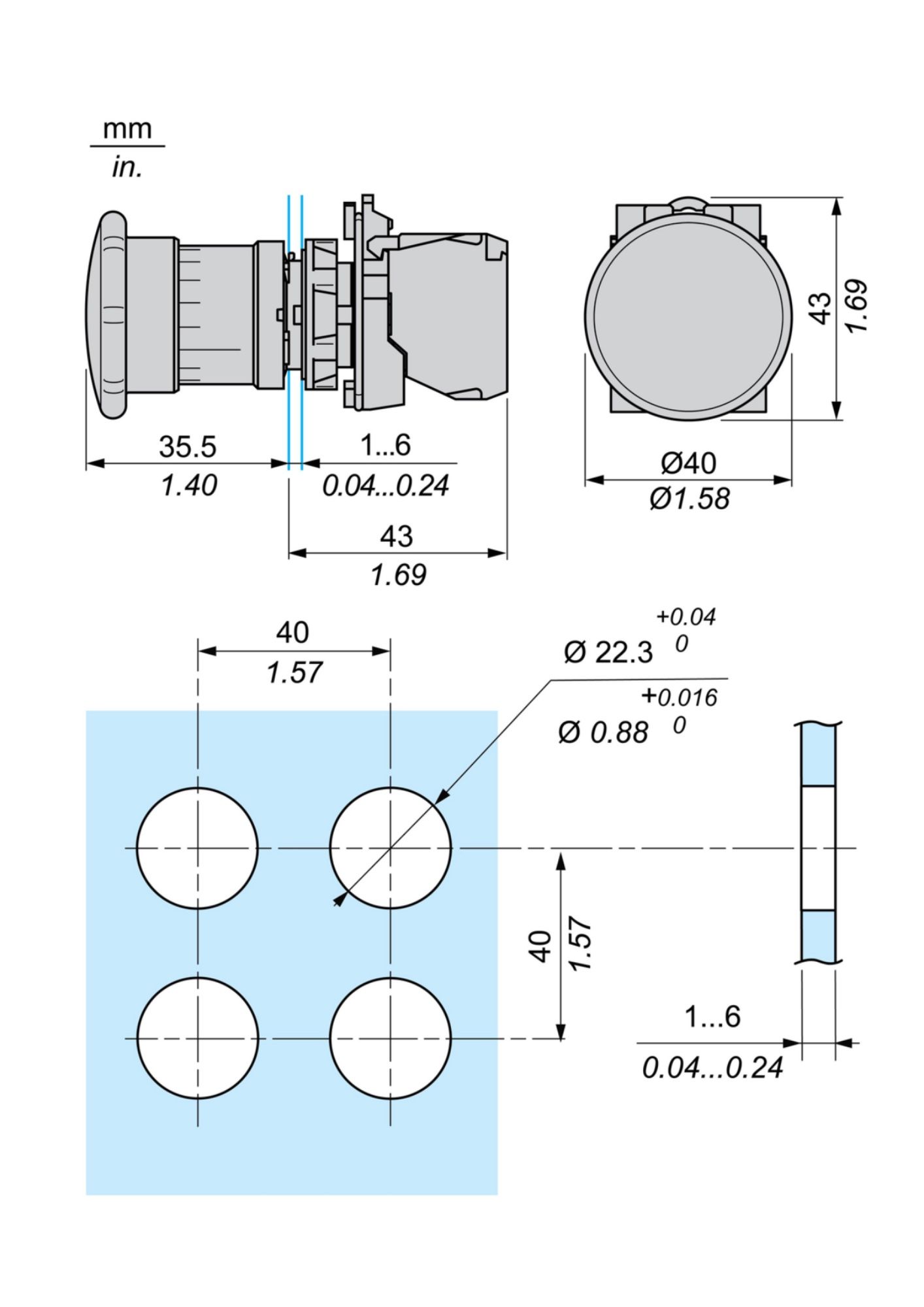

| Height | 43 mm |
| Width | 40 mm |
| Depth | 78.5 mm |
| Terminals description ISO n°1 | (11-12) NC |
| Fixing mode | Fixing nut, recommended torque: 2.2 N·m (±0.2 N·m) |
| Contacts usage | Standard contacts |
| Positive opening | With (IEC 60947-5-1 appendix K) |
| Operating travel |
1.5 mm (NC switching) 2.6 mm (NO switching) 4.3 mm (total travel) |
| Mechanical durability | 300000 cycles |
| Tightening torque | 0.8–1.2 N·m (IEC 60947-1) |
| Shape of screw head |
Cross (Philips No.1) Cross (Pozidriv No.1) Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A gG fuse (IEC 60947-5-1) |
| Ith | 10 A (IEC 60947-5-1) |
| Ui | 600 V (pollution degree 3) |
| Uimp | 6 kV |
| Ie rated operational current |
3 A at 240 V AC-15 6 A at 120 V AC-15 1.2 A at 600 V AC-15 0.1 A at 600 V DC-13 0.27 A at 250 V DC-13 0.55 A at 125 V DC-13 |
| Electrical durability |
1,000,000 cycles (AC-15, 2 A at 230 V) 1,000,000 cycles (AC-15, 3 A at 120 V) 1,000,000 cycles (AC-15, 4 A at 24 V) 1,000,000 cycles (DC-13, 0.2 A at 110 V) 1,000,000 cycles (AC-13, 0.5 A at 24 V) |
| Electrical reliability |
Λ < 10⁻⁶ at 5 V, 1 mA (IEC 60947-5-4) Λ < 10⁻⁸ at 17 V, 5 mA (IEC 60947-5-4) |
| Compatibility code | XB5 |
| Product compatibility | ZB5...N |
