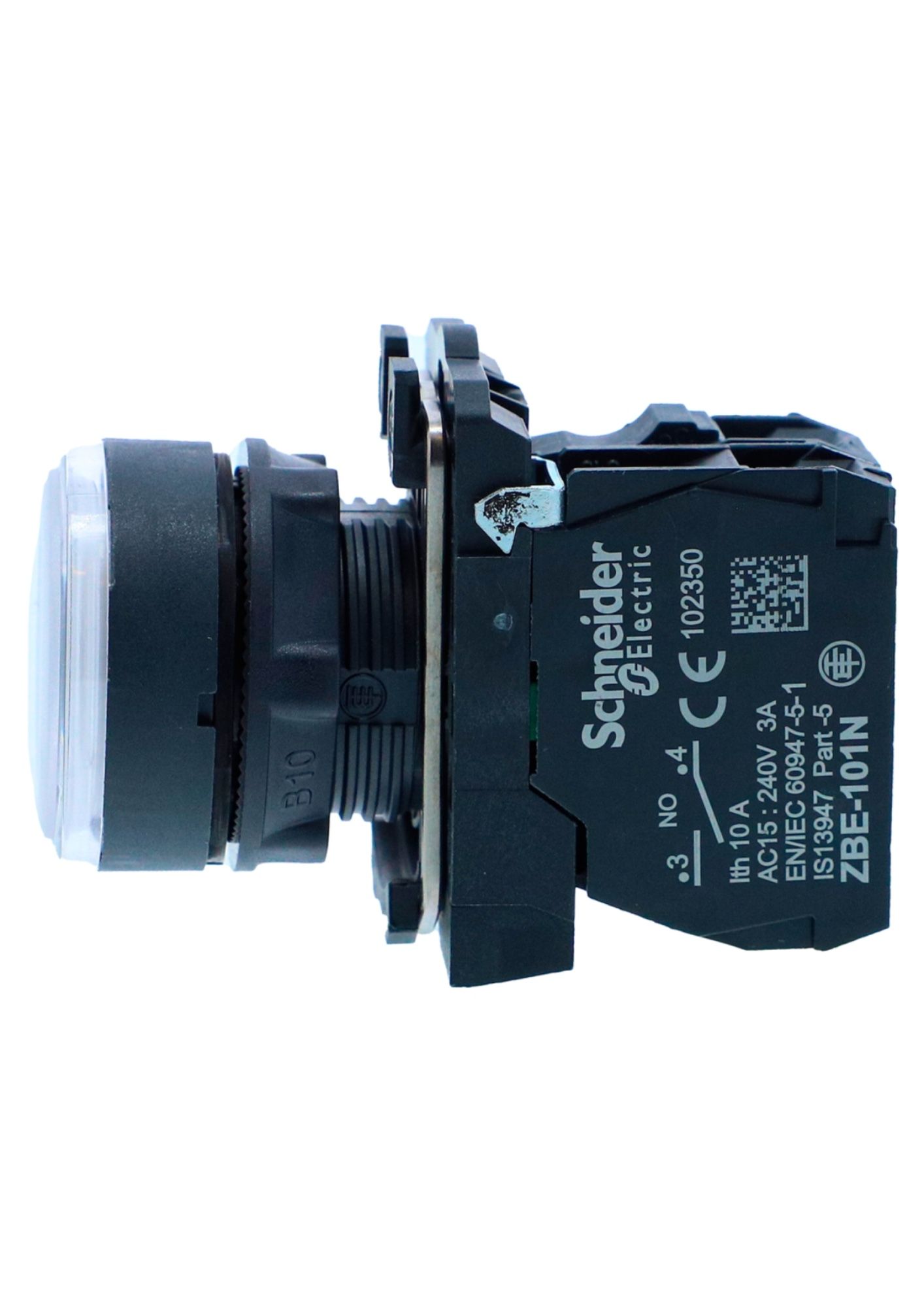

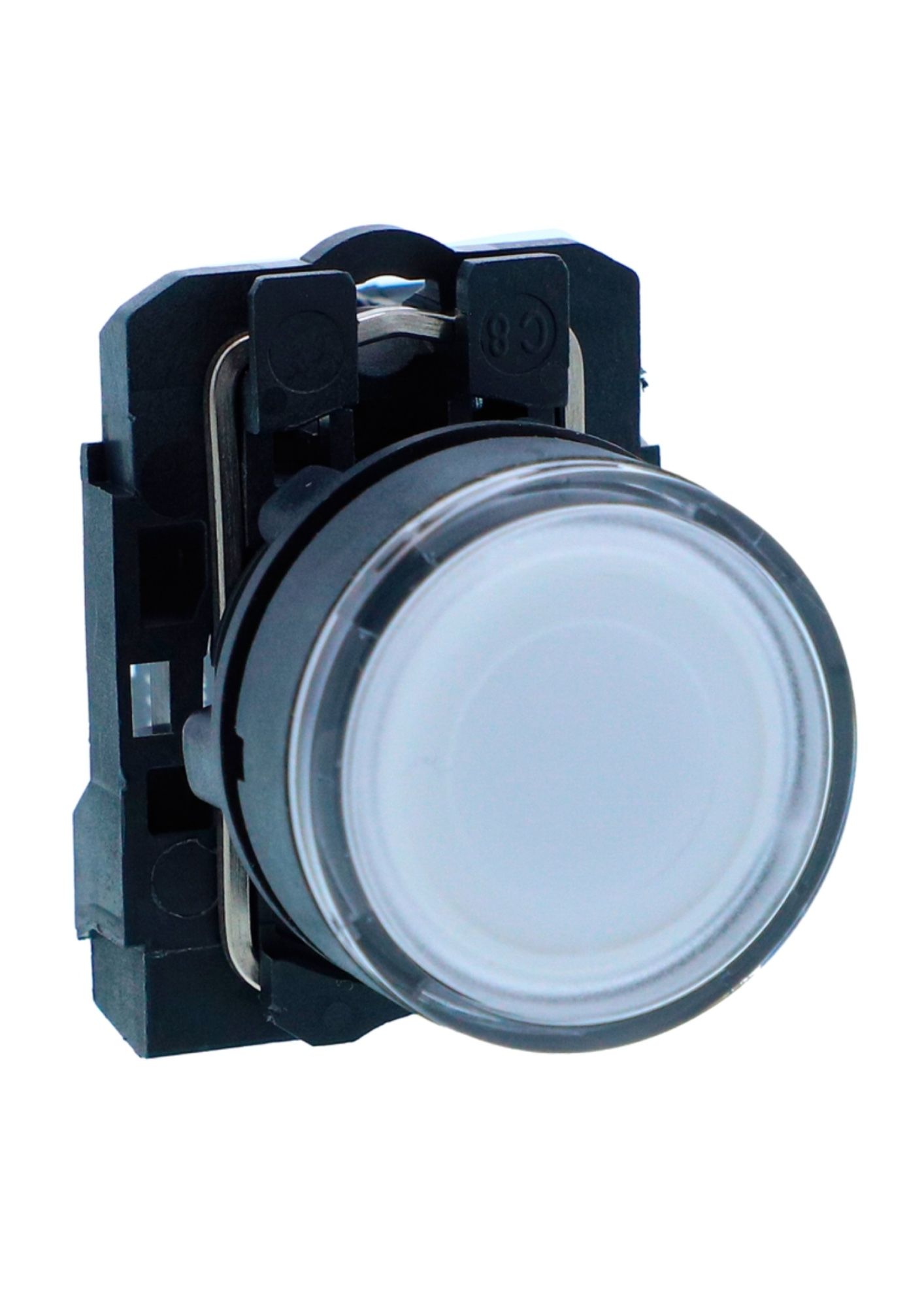

Schneider XB5AW31B1N, Illuminated pushbutton, Harmony XB5, Plastic, Flush, White, 22mm, Spring return, 24V AC DC, 1 NO
In stock
SKU
XB5AW31B1N
Special Price
₹345.60
Regular Price
₹576.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony XB5N |
| Product or component type | Illuminated push-button |
| Device short name | XB5N |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 20 |
| Shape of signaling unit head | Round |
| Type of operator | Spring return |
| Operator profile | White flush, unmarked |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals |
Screw clamp terminal, ≤ 2 × 1.5 mm² with cable end (IEC 60947-1) Screw clamp terminal, ≥ 1 × 0.22 mm² without cable end (IEC 60947-1) |
| Light source | LED |
| Bulb base | Integral LED |
| Light block supply | Direct |
| Rated supply voltage [Us] | 24 V AC/DC 50/60 Hz |
| Cap/operator or lens colour | White |
| Product compatibility | ZB5...N |
| Complementary | |
| Height | 42 mm |
| Width | 30 mm |
| Depth | 57 mm |
| Terminals description ISO n°1 | (13-14) NO |

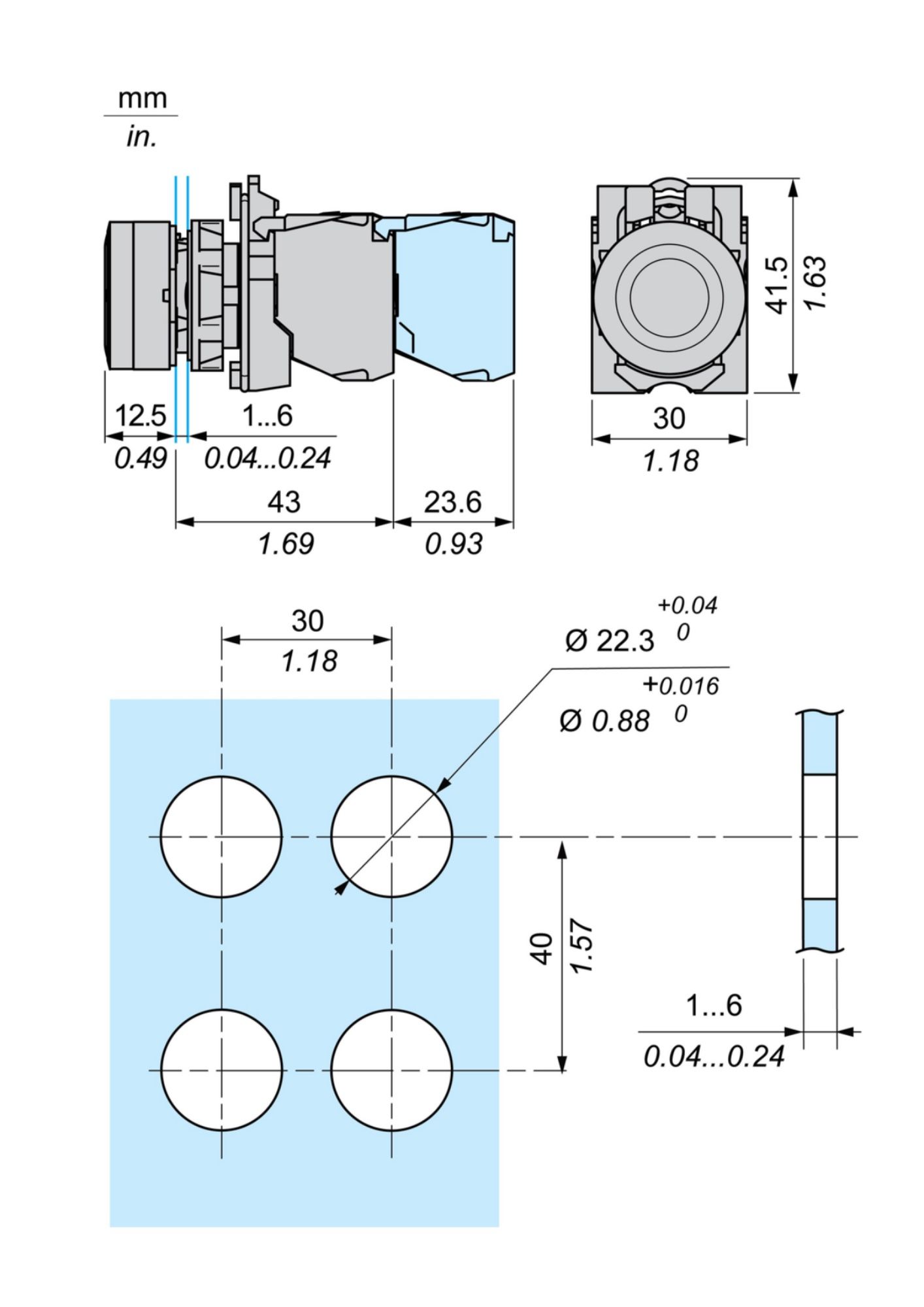

| Device mounting | Fixing hole Ø 22.5 mm (22.3 +0.4/0) – IEC 60947-5-1 |
| Fixing mode | Fixing nut torque 2.2 N·m (±0.2) |
| Marking | Unmarked |
| Contacts usage | Standard contacts |
| Operating travel |
1.5 mm (NC electrical change) 2.6 mm (NO electrical change) 4.3 mm (total travel) |
| Operating force |
3.5 N (NC change) 3.8 N (NO change) |
| Mechanical durability | 5,000,000 cycles |
| Tightening torque | 0.8…1.2 N·m (IEC 60947-1) |
| Shape of screw head |
Cross (Philips No.1) Cross (Pozidriv No.1) Slotted flat 4 mm Slotted flat 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A gG fuse (IEC 60947-5-1) |
| Thermal current [Ith] | 10 A |
| Rated insulation voltage [Ui] | 600 V (pollution degree 3) |
| Impulse withstand voltage [Uimp] | 6 kV |
| Rated operational current [Ie] |
3 A at 240 V AC-15 (A600) 6 A at 120 V AC-15 (A600) 1.2 A at 600 V AC-15 (A600) 0.1 A at 600 V DC-13 (Q600) 0.27 A at 250 V DC-13 (Q600) 0.55 A at 125 V DC-13 (Q600) |
| Electrical durability |
1,000,000 cycles (AC-15, 2 A at 230 V) 1,000,000 cycles (AC-15, 3 A at 120 V) 1,000,000 cycles (AC-15, 4 A at 24 V) 1,000,000 cycles (DC-13, 0.2 A at 110 V) 1,000,000 cycles (DC-13, 0.5 A at 24 V) |
| Electrical reliability |
Λ < 10⁻⁶ @ 5 V, 1 mA Λ < 10⁻⁸ @ 17 V, 5 mA |
| Signalling type | Steady |
| Supply voltage limits |
19.2…30 V DC 21.6…26.4 V AC |
| Current consumption | 18 mA |
| Service life | 100,000 h @ rated voltage & 25°C |
| Surge withstand | 1 kV (IEC 61000-4-5) |
| Device presentation | Complete product |
