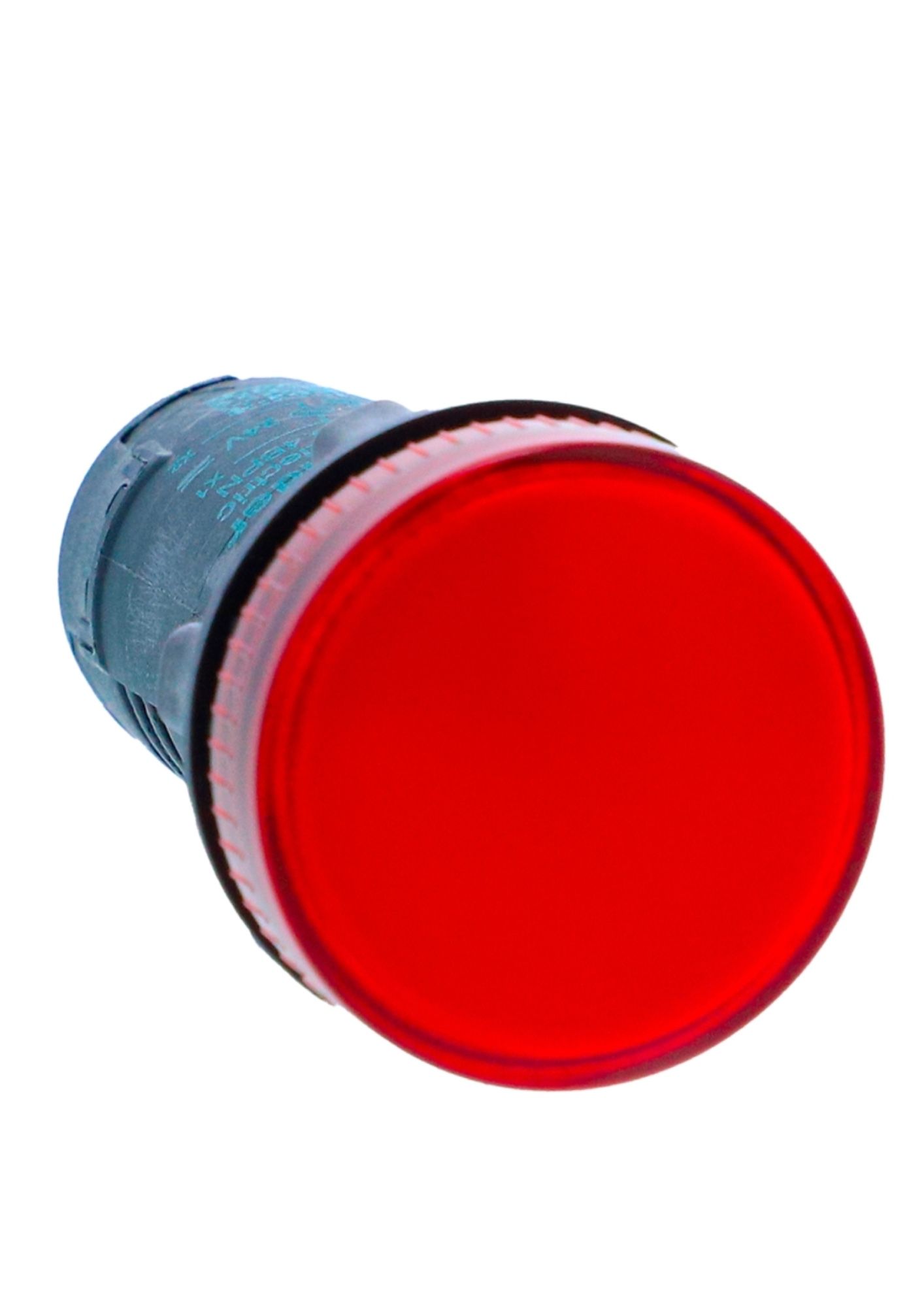

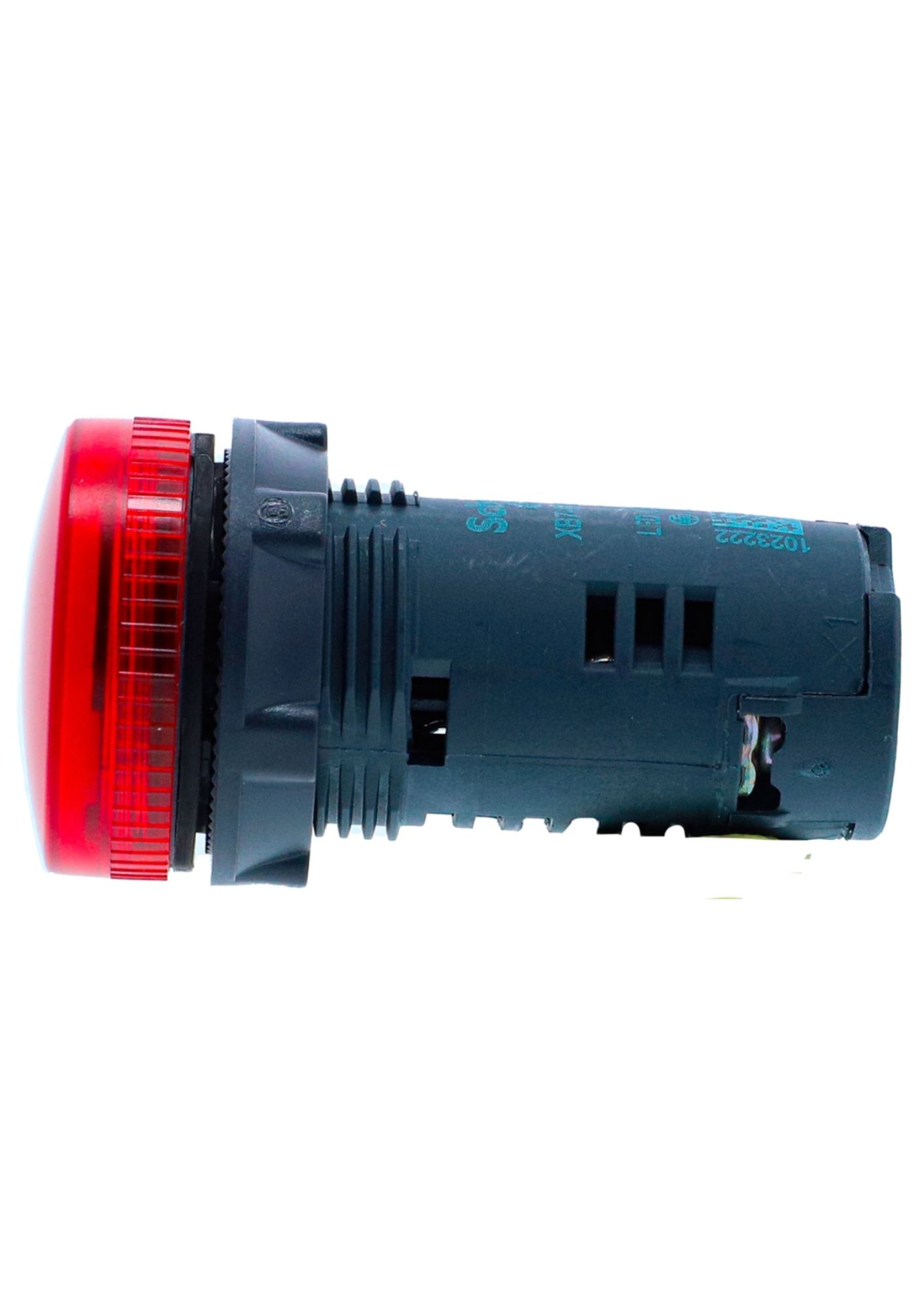

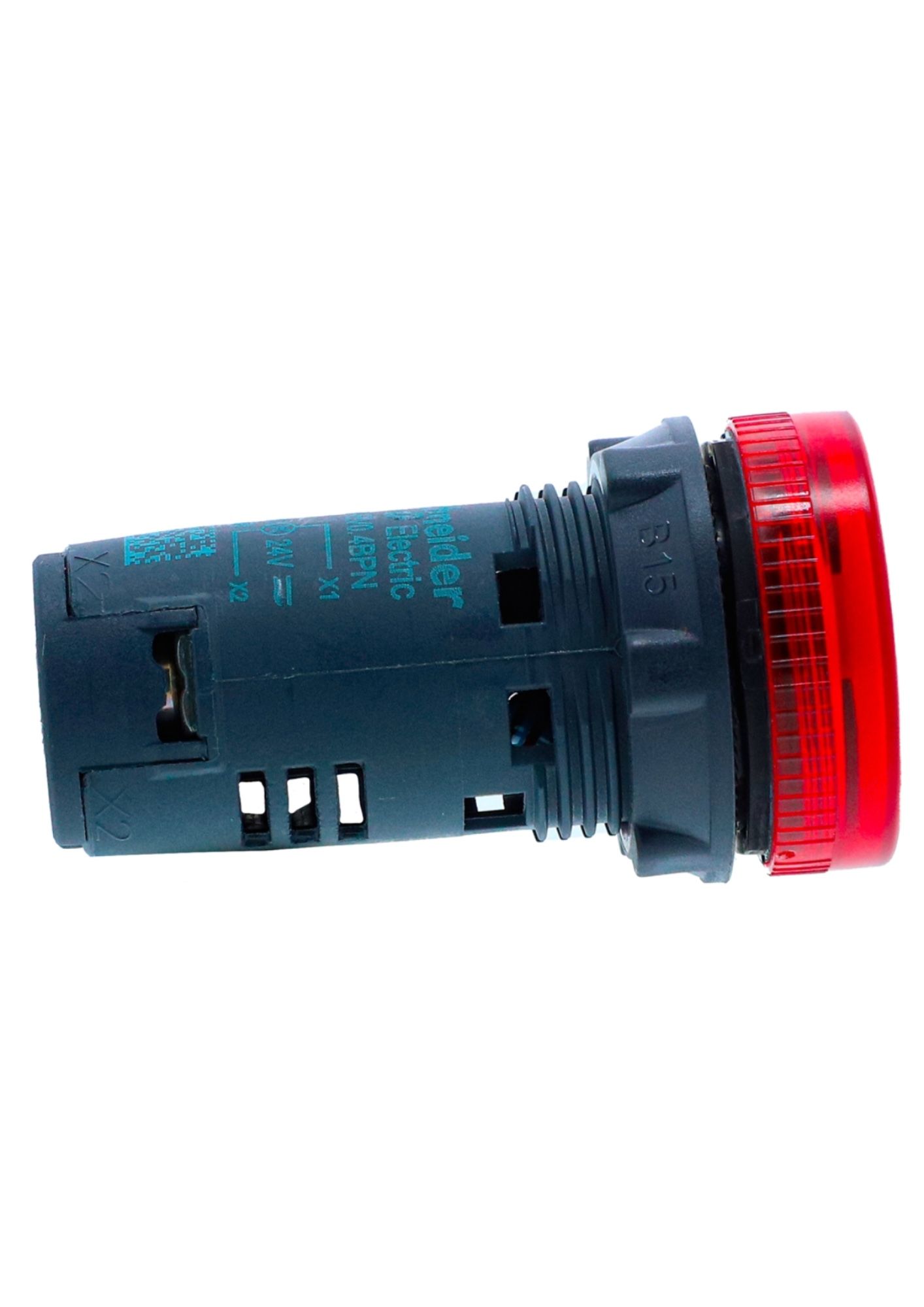

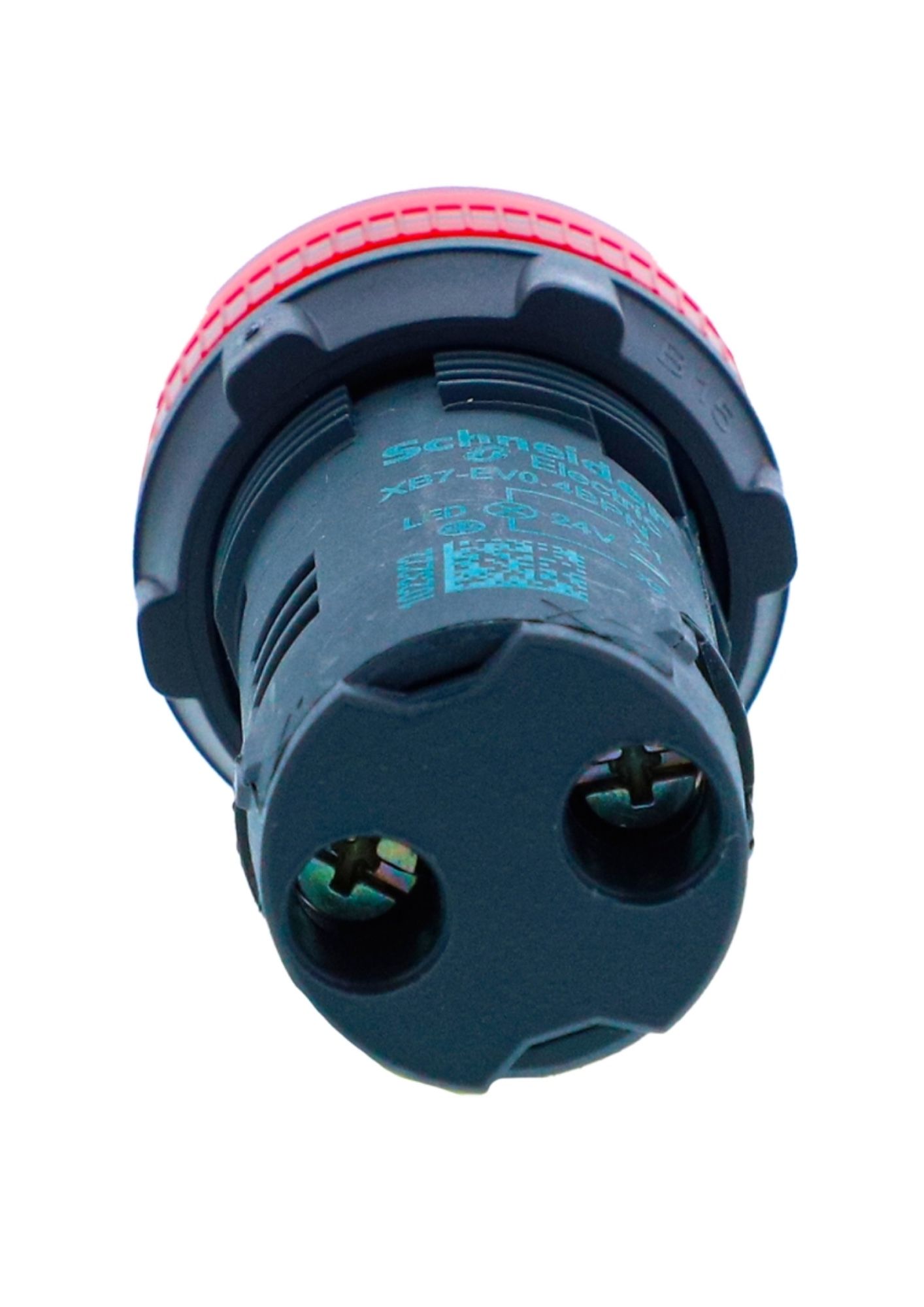

Schneider XB7EV04BPN, Monolithic Pilot Light, Harmony XB5N XB7N, Plastic, Red, 22mm, LED, 24V AC DC
In stock
SKU
XB7EV04BPN
Special Price
₹213.60
Regular Price
₹356.00
Schneider XB7EV04BPN, Monolithic Pilot Light, Harmony XB5N XB7N, Plastic, Red, 22mm, LED, 24V AC DC is available to buy in increments of 1
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony XB5N/XB7N |
| Product or component type | Pilot light |
| Device short name | XB7N |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 20 |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Red |
| Operator additional information | With plain lens |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Device presentation | Monolithic product |
| Complementary | |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 54 mm |
| Terminals description ISO n°1 | (X1-X2)PL |
| Device mounting | Fixing hole - diameter: 22.5 mm (22.3 +0.4/0) conforming to IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm (metal: 1–6 mm, plastic: 2–6 mm) |
| Fixing mode | Fixing nut: 2…2.4 N·m |
| Connections - terminals | Screw clamp terminals ≤ 2 x 1.5 mm² with cable end, ≥ 1 x 0.22 mm² without cable end (IEC 60947-1) |
| Tightening torque | 0.8…1.2 N·m (IEC 60947-1) |
| Shape of screw head | Cross (Philips no 1, Pozidriv no 1), Slotted (Ø4 mm, Ø5.5 mm) |
| [Ui] rated insulation voltage | 600 V (pollution degree 3, IEC 60947-1) |
| [Uimp] rated impulse withstand voltage | 6 kV (IEC 60947-1) |
| Signalling type | Steady |
| Light source colour | Red |
| Supply voltage limits | 19.2–30 V DC / 21.6–26.4 V AC |
| Current consumption | 20…27 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV (IEC 61000-4-5) |
