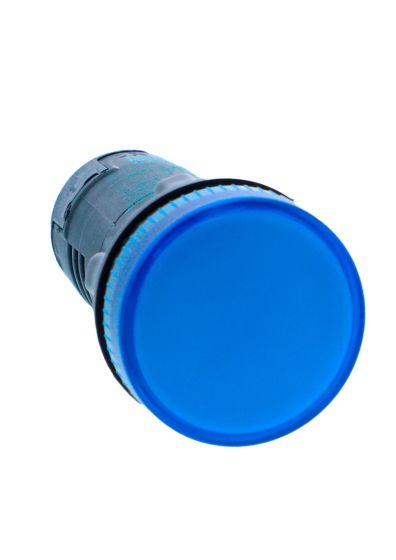

Schneider XB7EV06MPN, Monolithic pilot light, Harmony XB5N XB7N, plastic, blue, 22mm, LED, 230V AC
In stock
SKU
XB7EV06MPN
Special Price
₹283.68
Regular Price
₹591.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony XB5N/XB7N |
| Product or component type | Pilot light |
| Device short name | XB7N |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 20 |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Blue |
| Operator additional information | With plain lens |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 220...240 V AC 50/60 Hz |
| Device presentation | Monolithic product |
| Complementary | |
|---|---|
| Height | 29 mm |
| Width | 29 mm |
| Depth | 54 mm |
| Terminals description ISO n°1 | (X1-X2)PL |
| Device mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Light source colour | Blue |
| Supply voltage limits | 195…264 V AC |
| Current consumption | 16...20 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
