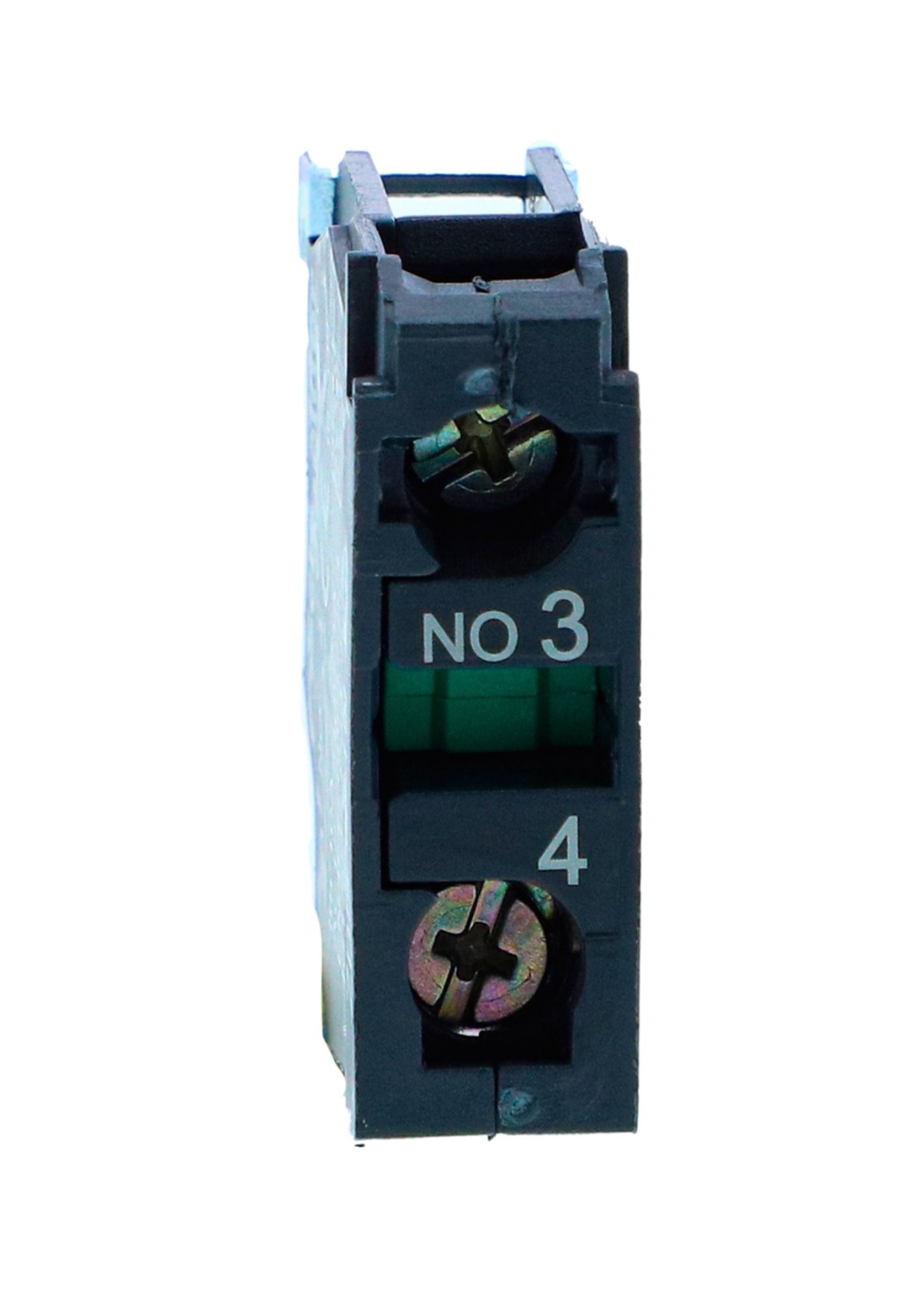

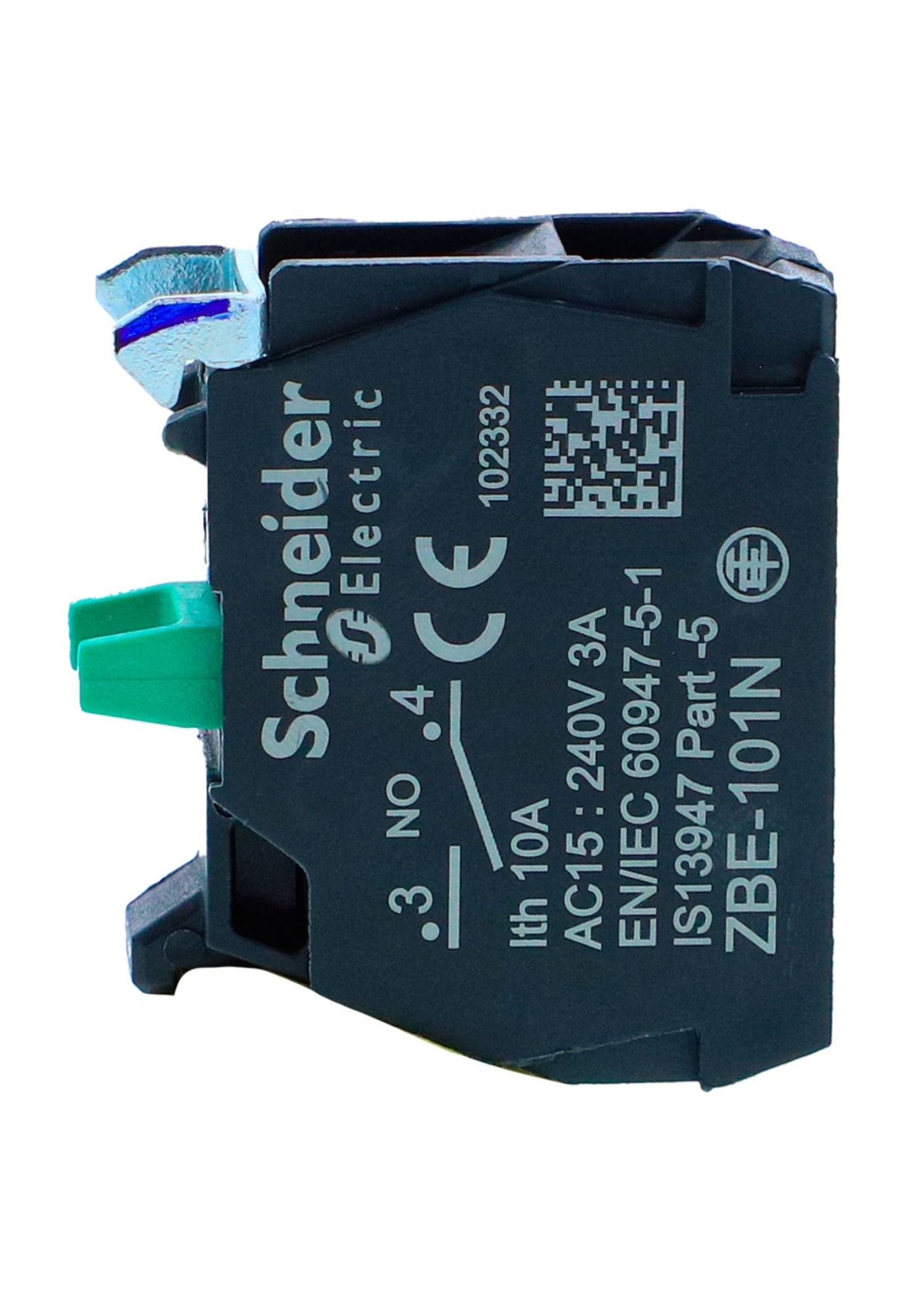

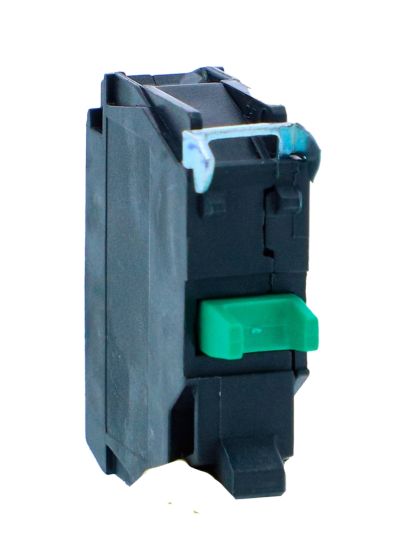

Schneider ZBE101N, Single contact block, Harmony XB5N XB7N, Silver alloy, Screw clamp terminal, 1 NO
In stock
SKU
ZBE101N
Special Price
₹92.00
Regular Price
₹115.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony XB5N/XB7N |
| Product or component type | Contact block with protected terminals |
| Device short name | ZBE |
| Sale per indivisible quantity | 20 |
| Contact block type | Single |
| Complementary | |
| Fixing collar material | Plastic |
| Terminals description ISO n°1 | (13-14) NO |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Contacts usage | Standard contacts |
| Positive opening | Without |
| Operating travel | 2.6 mm (NO changing electrical state) 4.3 mm (total travel) |
| Operating force | 3.8 N NO changing electrical state |
| Operating torque | 0.14 N·m |
| Torque value | 0.14 N·m |
| Mechanical durability | 5,000,000 cycles |
| Connections - terminals |
Screw clamp terminal, ≤ 2 × 1.5 mm² with cable end (IEC 60947-1) Screw clamp terminal, ≥ 1 × 0.22 mm² without cable end (IEC 60947-1) |
| Tightening torque | 0.8…1.2 N·m (IEC 60947-1) |
| Shape of screw head |
Cross – Philips no.1 Cross – Pozidriv no.1 Slotted – flat Ø 4 mm Slotted – flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG (IEC 60947-5-1) |
| [Ith] conventional free air thermal current | 10 A (IEC 60947-5-1) |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) (IEC 60947-1) |
| [Uimp] rated impulse withstand voltage | 6 kV (IEC 60947-1) |
| [Ie] rated operational current |
3 A at 240 V AC-15 A600 6 A at 120 V AC-15 A600 0.1 A at 600 V DC-13 Q600 0.27 A at 250 V DC-13 Q600 0.55 A at 125 V DC-13 Q600 1.2 A at 600 V AC-15 A600 |
| Electrical durability |
1,000,000 cycles – AC-15, 2 A at 230 V 1,000,000 cycles – AC-15, 3 A at 120 V 1,000,000 cycles – AC-15, 4 A at 24 V 1,000,000 cycles – DC-13, 0.2 A at 110 V 1,000,000 cycles – AC-15, 0.5 A at 24 V (all per IEC 60947-5-1 Appendix C) |
| Electrical reliability |
Λ < 10⁻⁶ at 5 V, 1 mA (IEC 60947-5-4) Λ < 10⁻⁸ at 17 V, 5 mA (IEC 60947-5-4) |
