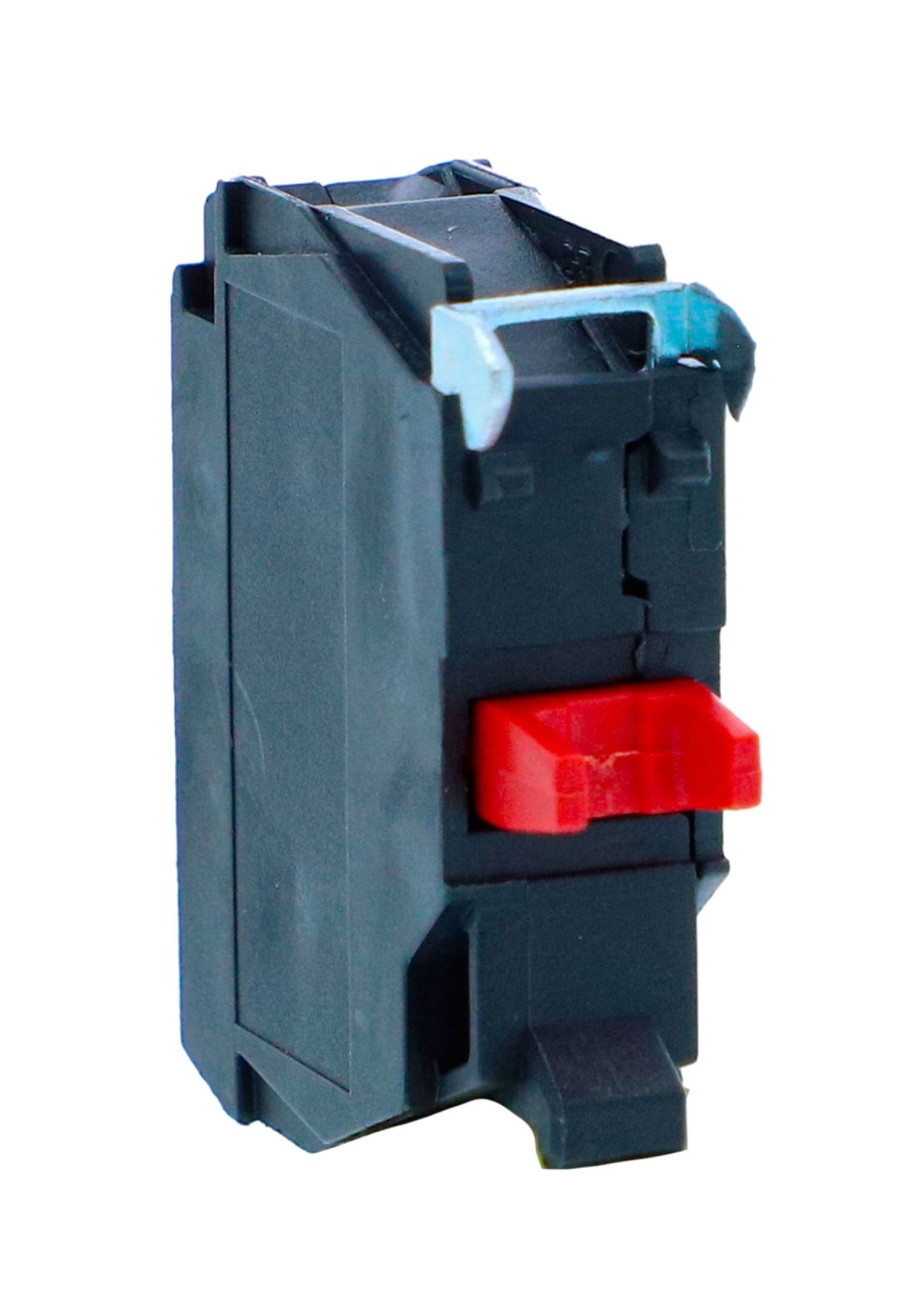

Schneider ZBE102N, Single contact block, Harmony XB5N XB7N, Silver alloy, Screw clamp terminal, 1 NC
In stock
SKU
ZBE102N
Special Price
₹92.00
Regular Price
₹115.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony XB5N/XB7N |
| Product or component type | Contact block with protected terminals |
| Device short name | ZBE |
| Sale per indivisible quantity | 20 |
| Contact block type | Single |
| Complementary | |
| Fixing collar material | Plastic |

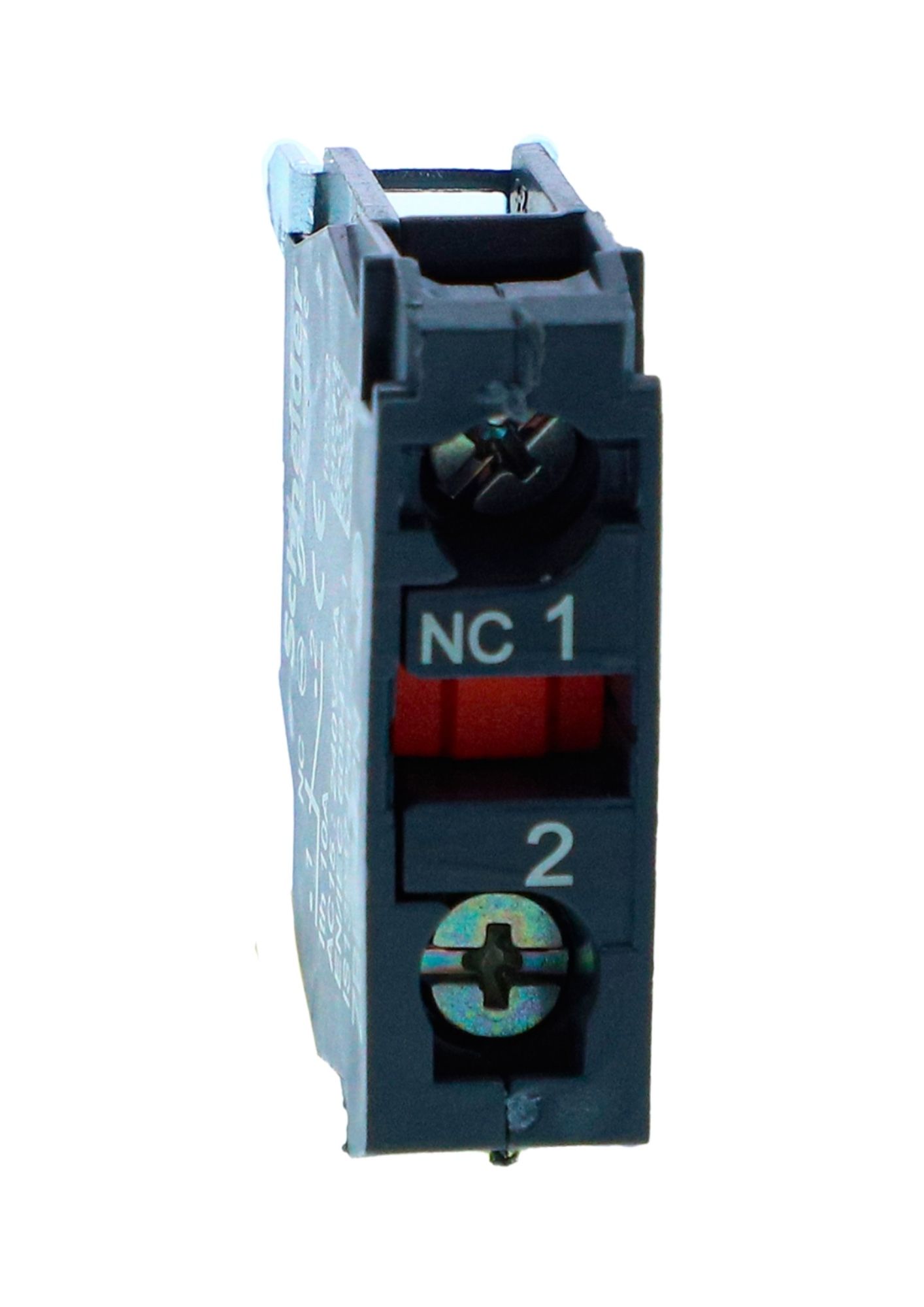

| Terminals description ISO n°1 | (11-12) NC |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| Contacts usage | Standard contacts |
| Positive opening | With, conforming to IEC 60947-5-1 appendix K |
| Operating travel |
2.6 mm (NC changing electrical state) 4.3 mm (total travel) |
| Operating force | 3.5 N (NC changing electrical state) |
| Operating torque | 0.14 N·m |
| Torque value | 0.14 N·m |
| Mechanical durability | 5,000,000 cycles |
| Connections - terminals |
Screw clamp terminal, ≤ 2 × 1.5 mm² with cable end (IEC 60947-1) Screw clamp terminal, ≥ 1 × 0.22 mm² without cable end (IEC 60947-1) |
| Tightening torque | 0.8…1.2 N·m (IEC 60947-1) |
| Shape of screw head |
Philips no. 1 compatible Pozidriv no. 1 compatible Slotted flat Ø 4 mm compatible Slotted flat Ø 5.5 mm compatible |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG (IEC 60947-5-1) |
| [Ith] conventional free air thermal current | 10 A (IEC 60947-5-1) |
| [Ui] rated insulation voltage | 600 V (pollution degree 3, IEC 60947-1) |
| [Uimp] impulse withstand voltage | 6 kV (IEC 60947-1) |
| [Ie] rated operational current |
3 A at 240 V, AC-15, A600 (IEC 60947-5-1) 6 A at 120 V, AC-15, A600 (IEC 60947-5-1) 0.1 A at 600 V, DC-13, Q600 (IEC 60947-5-1) 0.27 A at 250 V, DC-13, Q600 (IEC 60947-5-1) 0.55 A at 125 V, DC-13, Q600 (IEC 60947-5-1) 1.2 A at 600 V, AC-15, A600 (IEC 60947-5-1) |
| Electrical durability |
1,000,000 cycles, AC-15, 2 A at 230 V 1,000,000 cycles, AC-15, 3 A at 120 V 1,000,000 cycles, AC-15, 4 A at 24 V 1,000,000 cycles, DC-13, 0.2 A at 110 V 1,000,000 cycles, AC-15, 0.5 A at 24 V |
| Electrical reliability |
Λ < 10⁻⁶ at 5 V, 1 mA (clean environment) Λ < 10⁻⁸ at 17 V, 5 mA (clean environment) |
