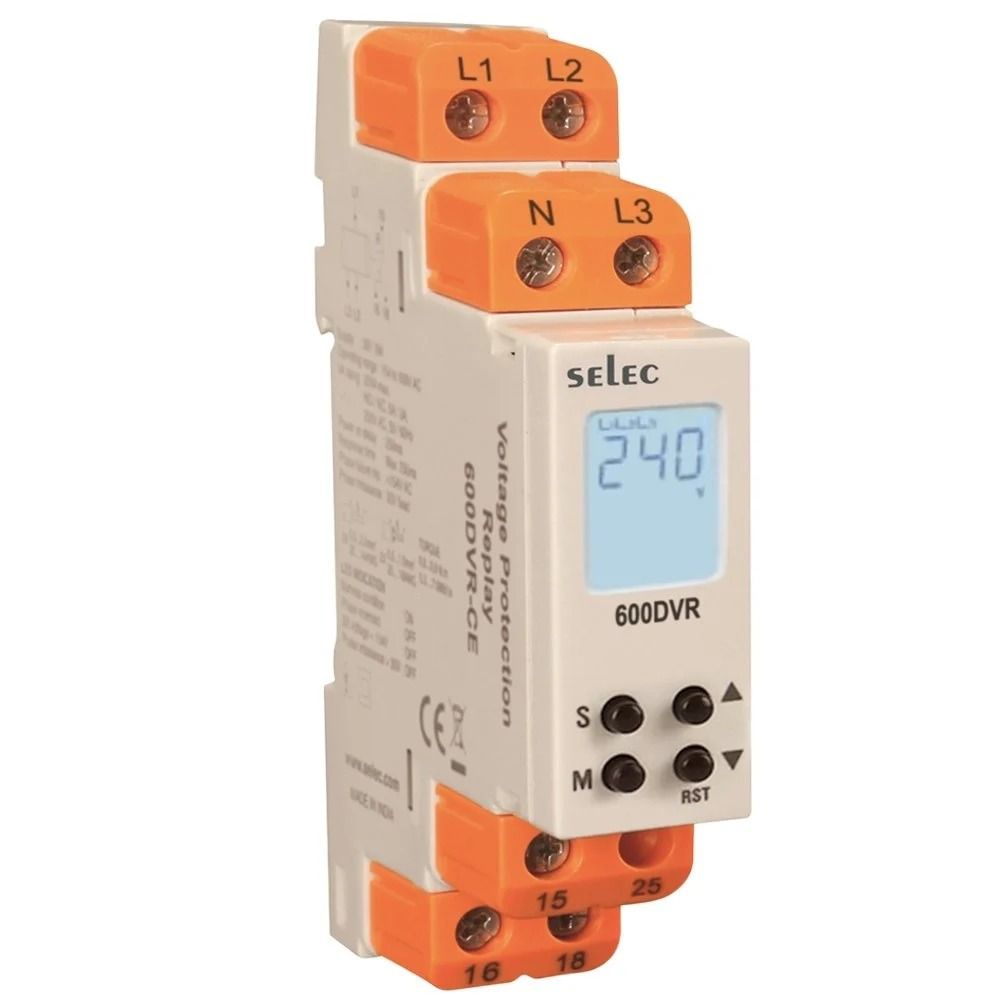

Selec 600DVR-C-CE, Voltage Monitoring, Three Phase  Analog Voltage Protection Relay, Size 22.5mm, DIN Rail Mount
Selec 600DVR-C-CE, Voltage Monitoring, Three Phase  Analog Voltage Protection Relay, Size 22.5mm, DIN Rail Mount

Selec 600DVR-C-CE, Voltage Monitoring, Three Phase Analog Voltage Protection Relay, Size 22.5mm, DIN Rail Mount

Out of stock
SKU
600DVR-C-CE
Special Price ₹981.12 Regular Price ₹2,044.00
(18% GST Extra)
  • Three phase voltage Protection relay
  • Monitors: Over / Under Voltage, Over / Under Frequency, Phase (Asymmetry , Failure , Sequence)
  • Neutral Loss
  • 1 C/O, Self powered
  • CE and RoHS certified

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display: 6 Digits, LCD With Backlight
  • Operating Range: 3Ø-3 Wire (L-L): 280-600V AC / 3Ø-4 Wire (L-L): 160-300V AC
  • Electrical Connection: 3Ø-3 Wire, 3Ø-4 Wire
  • Modes: Phase failure: (Yes) Phase sequence: (Yes) Phase asymmetry: (5-99%) Over frequency: (45/65 Hz) Under frequency: (45/65 Hz) Over voltage: { 280 to 600V AC (3Ø-3W) (L-L) : 160 to 300V AC (3Ø-4W) (L-N) } Under voltage: { 280 to 600V AC (3Ø-3W) (L-L) : 160 to 300V AC (3Ø-4W) (L-N) } Neutral loss: (Yes)
  • Time Ranges: 0-999 sec (For power ON, Trip time, Recovery time) Response time <120ms, (For under voltage, Over voltage, Phase asymmetry) Response time <250ms ,(For phase asymmetry, Phase failure, Phase sequence, Neutral loss)
  • Accuracy: Trip voltage: (+1% of Full range) Trip time: (+5% of setting +250ms) Frequency: (+0.3 Hz)
  • Output Contact: 1 C/O SPDT
  • Output Rating: NO: 5A @250V AC / 30V DC, NC 3A @250V AC / 30V DC
