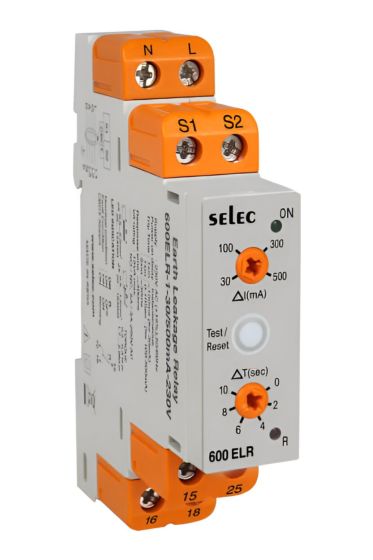

Selec 600ELR-1-30-500mA-230V, Single Phase Analog Earth Leakage Relay, 30-500mA Settable, Size 17.5x90mm, DIN Rail Mount
Selec 600ELR-1-30-500mA-230V, Single Phase Analog Earth Leakage Relay, 30-500mA Settable, Size 17.5x90mm, DIN Rail Mount

Selec 600ELR-1-30-500mA-230V, Single Phase Analog Earth Leakage Relay, 30-500mA Settable, Size 17.5x90mm, DIN Rail Mount

Out of stock
SKU
600ELR-1-30-500mA-230V
Special Price ₹720.96 Regular Price ₹1,502.00
(18% GST Extra)
  • Measures leakage current from 30mA to 500mA in 1Ø & 3Ø systems
  • Trip Relay: 1 SPDT relay
  • LED indication to show Power ON and Trip indication
  • Auxiliary supply voltage of 230V AC ±15%
  • Response time: For 30mA: - <30ms (For 5xln) & <150ms (For 1xIn)
  • DIN-rail mounting, 1M size

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Measuring Parameter: Monitors True RMS Earth Leakage Current (upto 500mA)
  • Electrical Connection: 1Ø-2W, 3Ø-4W, 3Ø-3W
  • Supply Voltage: 230VAC ± 15%
  • Trip Leakage current range: 30mA - 500mA, (30mA, 100mA, 300mA, 500mA)
  • Trip time delay: 0, 2, 4, 6, 8, 10 sec (NA for 30mA range)
  • Response time: Variable time settings (0, 2, 4, 6, 8, 10 sec) / For 100mA, 300mA & 500mA current setting / (For 1x1n) & <30ms for 5xIn / For 0 sec trip setting for 100mA,300mA & 500mA, trip time will be less than <150ms, For 30mA: - <30ms (For 5xln) & <150ms (For 1xIn)
  • CBCT Detection: Yes, when CBCT absent or short
  • Accuracy: Current: 5% of In, Time: 5% of Set time
  • Output Contact: 1 SPDT relay
  • Output Rating: NO : 5A @ 250VAC NC: 3A @ 250VAC 5A @ 24V DC
  • Size: 17.5 X 90 mm
  • Mounting Type: DIN rail Mount
