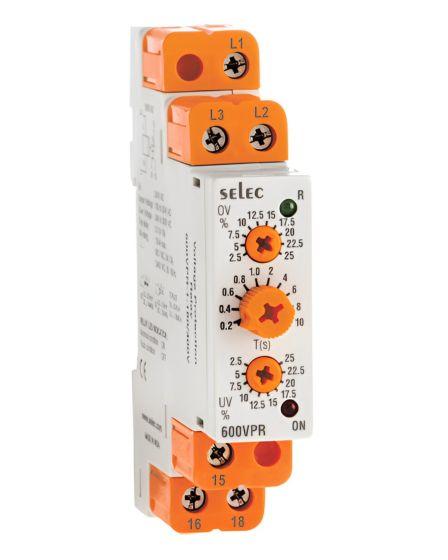

Selec 600VPR-1-130-320-CE, Voltage Monitoring, Single Phase  Analog Voltage Protection Relay, Size 17.5mm, DIN Rail Mount
Selec 600VPR-1-130-320-CE, Voltage Monitoring, Single Phase  Analog Voltage Protection Relay, Size 17.5mm, DIN Rail Mount

Selec 600VPR-1-130-320-CE, Voltage Monitoring, Single Phase Analog Voltage Protection Relay, Size 17.5mm, DIN Rail Mount

In stock
SKU
600VPR-1-130-320-CE
Special Price ₹872.83 Regular Price ₹1,541.00
(18% GST Extra)
Add to Wish List
  • Single phase voltage Protection relay
  • Monitors Over / Under Voltage with variable trip time from 0.25 sec - 20 sec
  • Supply Voltage: 130 - 320V AC (L-N)
  • 1 C/O SPDT output relay
  • CE and RoHS certified
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Measuring Parameter: Monitors under voltage and Over voltage
  • Electrical Connection: 1Ø - 2W
  • Time Ranges: Trip delay (T): (0.25 to 20sec) Power ON delay: (<400msec)
  • Accuracy: ±5% of Set value ±100msec
  • Output Contact: 1 C/O SPDT relay
  • Output Rating: NO/5A, NC/3A@250V AC
  • Operating Voltage: 130 to 320V AC (L-N)
  • Reset: Auto reset on removal of fault condition
  • Size: 17.5mm
  • Mounting Type: DIN rail mount
  • Certification: CE
