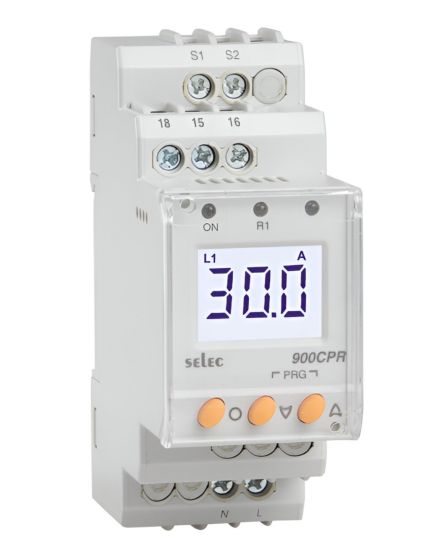

Selec 900CPR-1-BL-U-CE, 3 Digits LCD Display, Single Phase Current Protection Relay, Size 35mm, DIN Rail Mount
Selec 900CPR-1-BL-U-CE, 3 Digits LCD Display, Single Phase Current Protection Relay, Size 35mm, DIN Rail Mount

Selec 900CPR-1-BL-U-CE, 3 Digits LCD Display, Single Phase Current Protection Relay, Size 35mm, DIN Rail Mount

Out of stock
SKU
900CPR-1-BL-U-CE
Special Price ₹1,751.04 Regular Price ₹3,648.00
(18% GST Extra)
  • Single phase RMS current protection from Over / Under current
  • Accuracy : ± 1% of current
  • Measuring range of : 0.1A to 999A depending on CT selection
  • Voltage supply : 85 to 270V AC/DC
  • Certifications: CE & RoHS

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Measuring Parameter: Under Current & Over Current
  • Electrical Connection: 1Ø-2W
  • Display: 3 Digits Liquid Crystal Display With Backlight
  • CT Setting: CT Primary : ( 1A / 5A – 999A ) CT Secondary : (1A / 5A) (selectable)
  • Time Ranges: Power ON Delay : (0.5–99.9sec) Trip Time Delay : (0–99.9sec) Recovery Time Delay : (0–99.9sec) (In Auto Reset Mode) Response Time : (<200ms)
  • Accuracy: Current : (±1% of Setting ± 2 digits) Time Setting Accuracy : (±5% of Setting ± 200ms)
  • Output Contact: 2 X 1 C/O (SPDT)
  • Output Rating: NO: 5A@250V AC, NC: 3A@250V AC
  • Supply Voltage: 85 to 270V AC / DC
  • Size: 35 mm
  • Certification: CE
