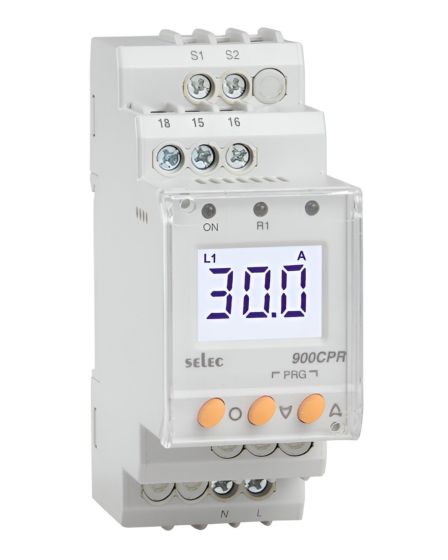

Selec 900CPR-3-1-230V-CE, 3 Digits LCD Display, Three Phase Current Protection Relay, Size 35mm, DIN Rail Mount, 230VAC
Selec 900CPR-3-1-230V-CE, 3 Digits LCD Display, Three Phase Current Protection Relay, Size 35mm, DIN Rail Mount, 230VAC

Selec 900CPR-3-1-230V-CE, 3 Digits LCD Display, Three Phase Current Protection Relay, Size 35mm, DIN Rail Mount, 230VAC

Out of stock
SKU
900CPR-3-1-230V-CE
Special Price ₹1,810.78 Regular Price ₹3,772.46
(18% GST Extra)
  • Three phase RMS current protection from Over/Under current.
  • Accuracy : ± 1% of current.
  • Measuring range of : 0.1A to 999A depending on CT selection.
  • Voltage supply : 230V AC (±15%)
  • Certifications: CE & RoHS

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Measuring Parameter: Under Current, Over Current, Current Asymmetry Monitoring
  • Electrical Connection: 3Ø-3W, 3Ø-4W
  • Display: 3 Digits Liquid Crystal Display with Backlight
  • CT Setting: CT Primary : (1A / 5A – 999A) CT Secondary : (1A / 5A) (selectable)
  • Time Ranges: Power ON Delay : (0.5–99.9sec) Trip time delay : (0–99.9sec) Recovery Time Delay : (0–99.9sec) (In Auto Reset Mode) Response Time : (<200ms)
  • Accuracy: Current : (±1% of Setting ± 2 digits) Time Setting Accuracy : (±5% of Setting ±200ms)
  • Output Contact: 1 C / O (SPDT)
  • Output Rating: NO: 5A@250V AC, NC: 3A@250V AC
  • Supply Voltage: 230V AC (±15%)
  • Size: 35 mm
  • Mounting Type: DIN Rail Mount
  • Certification: CE
Product Code Supply Voltage Certification
900CPR-3-1-BL-230V-CE 230V AC CE, RoHS
900CPR-3-1-110V-CE 110V AC CE, RoHS
