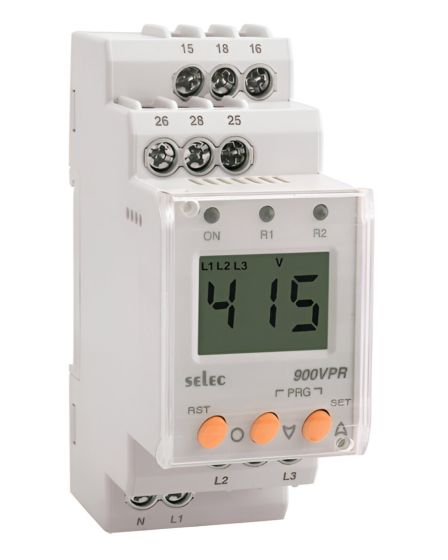

Selec 900VPR-2-280-600V-CE, 3 Digits LCD Display, Three Phase Voltage Protection Relay, Size 35mm, DIN Rail Mount

In stock

SKU

900VPR-2-280-600V-CE

Special Price ₹1,191.36 Regular Price ₹2,482.00

(18% GST Extra)

Qty

Add to Wish List

3 phase RMS voltage protection relay
Monitors: Over / Under Voltage, Over / Under Frequency, Phase (Asymmetry, Failure, Sequence)
Accuracy ± 1% of Voltage, ± 0.3Hz
Measuring range : 160 to 600V depending on Network selection
Supply range: 280 to 600V AC
UL certified

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Measuring Parameter: Under Voltage, Over Voltage, Under Frequency, Over Frequency, Phase Asymmetry, Phase Failure, Phase Sequence
Electrical Connection: 3Ø-3W, 3Ø-4W
Display: 3 digits Liquid Crystal Display without backlight
Time Ranges:Trip Time Delay : (0-99.9 sec) Power ON Delay : (2-99.9 sec) Delay ON Release : (0-99.9sec) Response Time : (< 200ms)
Accuracy: Trip Voltage: ±1% of Set Value
Output Contact: 2 x 1C/O (SPDT)
Output Rating: NC: 3A@250V AC, NO: 5A@250V AC (Res)
Operating Voltage: 280 to 520V AC (L-L), 160 to 300V AC (L-N)
Size: 35mm
Mounting Type: DIN Rail Mount
Certification: CE & UL
