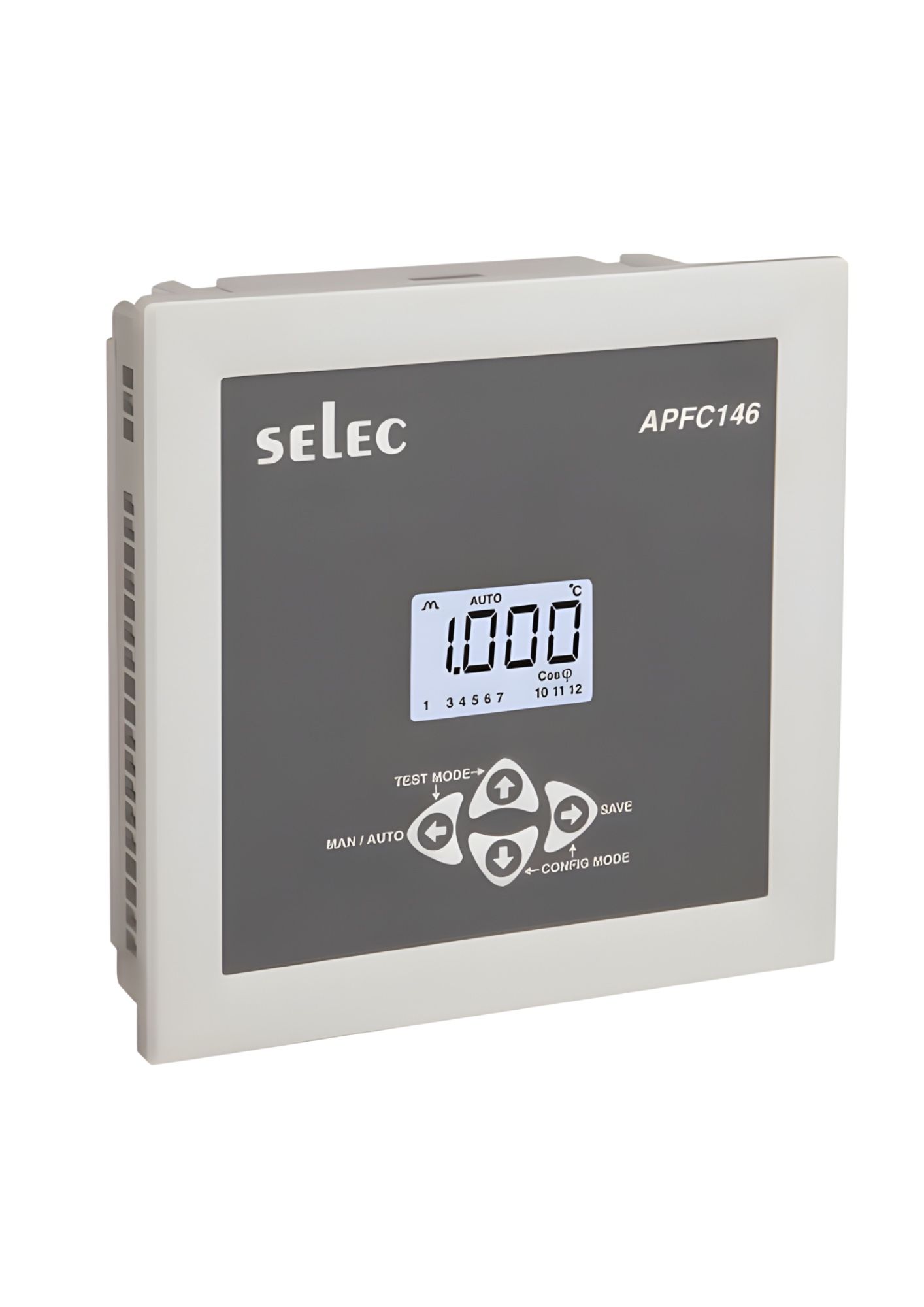

Selec APFC146-112-90-550V-CE, LCD with Backlight, 12 Relay Stages, 144x144mm, Panel Mount
In stock
SKU
APFC146-112-90-550V-CE
Special Price
₹3,972.96
Regular Price
₹8,277.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Type | LCD with backlight |
| Digits | 4 digits 1 Row |
| Rated input voltage | 50 - 520V (L - L) |
| Rated input current range | Nominal 5A AC (Min 50mA, Max 6A) |
| Frequency | 45 - 65 Hz |
| Burden | 20m Ohm |
| Electrical connection | 2ø - 2 wire (Voltage - L2 L3, Current - L1) |
| Accuracy | Power factor : ±0.01 Temperature : ±3° of full scale |
| Measurement range | 0.8 lag to 0.8 lead |
| Error indication | Curr (Current less than 50mA) |
| Alarm indication | Over temperature |
| Settable parameters | Target PF, Step time, Discharge time |
| Target PF | 0.8 lag to 0.8 lead |
| Max number of steps | 1 to 12 |
| Step time | 1 to 999 sec |
| Discharge time | 1 to 999 sec |
| Over temperature settings | 10°C to 70°C |
| Output Contacts | |
| Steps | 1 to 12 |
| Relay contact | NO, One common point max fuse 6A 5A @ 250V AC (max) |
| Input voltage range | 90 - 550V AC |
| Consumption | 15VA max |
| Frequency | 50 - 60 Hz |
| CT Primary 1 | 5A to 10kA (Programmable for any value) |
| CT Primary 2 | 5A to 10kA (Programmable for any value) |
| CT Secondary | 330mV |
| PT Primary | 100V to 10kV (Programmable for any value) |
| PT Secondary | 100V to 10kV (Programmable for any value) |
| Control mode | Automatic / Manual |
| Temperature | Operating : 0°C to 60°C Storage : -20°C to 60°C |
| Humidity (non - condensing) | 0% to 95% without moisture consideration |
| Mounting | Panel |
