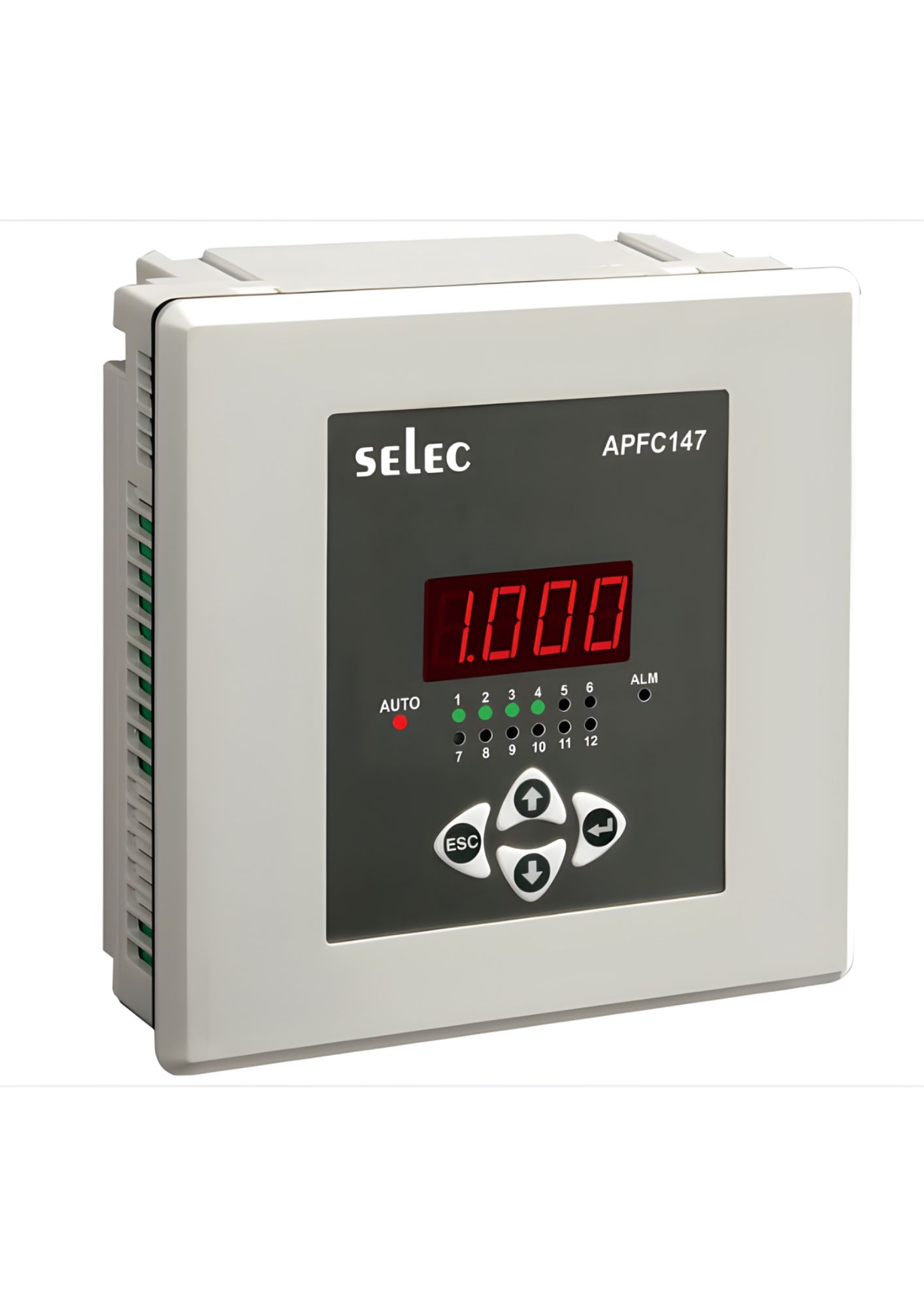

Selec APFC147-108-90-550V, 7 Segment LED Display, 8 & 12 Relay Stages, 144x144mm, Panel Mount
In stock
SKU
APFC147-108-90-550V
Special Price
₹3,870.72
Regular Price
₹8,064.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | Specification |
|---|---|
| Type | LED 7 Segment |
| Digits | 4 digits, 1 Row (8 + 1 + 1) |
| Rated input voltage | 40-300V (L-N), 50-530V (L-L) |
| Rated input current range | 5AAC (Min 50mA, Max 6A) |
| Frequency | 45 - 65 Hz |
| Burden | 20m Ohm |
| Wiring input | L-L / L-N |
| Accuracy power factor | ±0.01 |
| Measurement range | 0.8 lag to 0.8 lead |
| Alarm indications | Over Voltage, Under Voltage, Under Compensate, Over Compensate, CT Polarity Error, Current Absent indication |
| CT Primary | 1 / 5A to 9999A (Programmable for any value) |
| CT Secondary | 1 or 5A (Programmable) |
| Output Contacts | Relay contact, NO, One common point, max fuse 6A |
| Steps | 1 to 8/12 |
| Output Rating | 5A @ 250V AC (max) |
| Input voltage range | 90 - 550V AC |
| Consumption | 15VA max |
| Frequency | 50 - 60 Hz |
| Target PF | 0.8 lag to 0.8 lead |
| Control Sensitivity | 60% |
| Step time | 5 to 999 sec |
| Discharge time | 5 to 999 sec |
| Switching program | Automatic |
| Control Mode | Automatic / Manual |
| Auto initialization | Yes / No |
