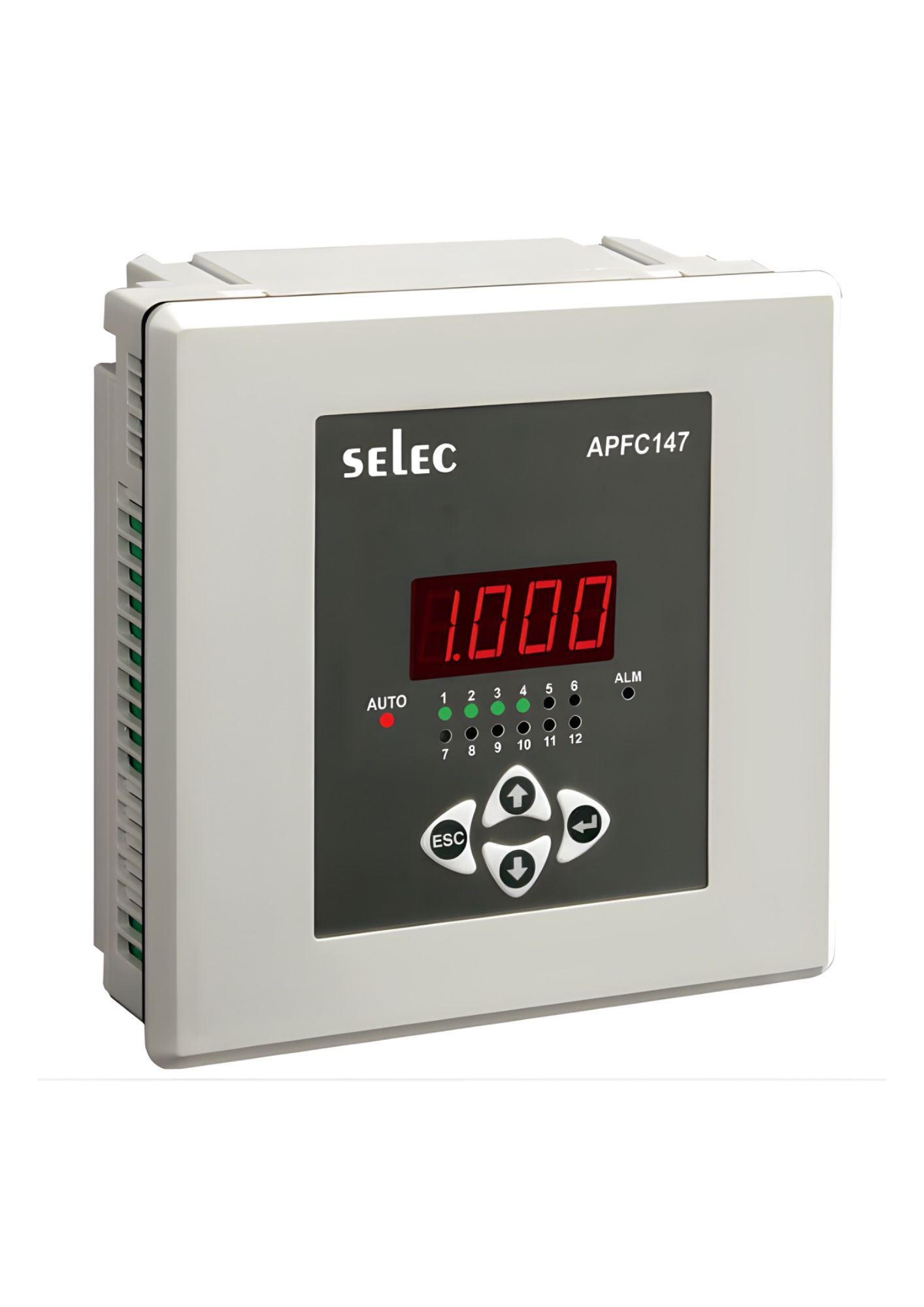

Selec APFC147-112-90-550V, 7 Segment LED Display, 8 & 12 Relay Stages, Panel Mount
Out of stock
SKU
APFC147-112-90-550V
Special Price
₹4,460.64
Regular Price
₹9,293.00
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Type | No. of LED 7 Segment LED |
| Digits | 4 digits 1 Row 8 + 1 + 1 |
| Rated Input Voltage | 40-300V (L-N), 50-530V (L-L) |
| Rated Input Current Range | 5AAC (Min 50mA, Max 6A) |
| Frequency | 45 - 65 Hz |
| Burden | 20m Ohm |
| Wiring Input | L-L / L-N |
| Accuracy (Power Factor) | ±0.01 |
| Measurement Range | 0.8 lag to 0.8 lead |
| Alarm Indications | Over Voltage, Under Voltage, Under Compensate, Over Compensate, CT Polarity Error, Current Absent indication |
| CT Primary | 1 / 5A to 9999A (Programmable for any value) |
| CT Secondary | 1 or 5A (Programmable) |
| Output Contacts | NO, One common point max fuse 6A |
| Steps | 1 to 8 / 12 |
| Relay Contact Rating | 5A @ 250V AC (max) |
| Input Voltage Range | 90 - 550V AC |
| Power Consumption | 15VA max |
| Operating Frequency | 50 - 60 Hz |
| Target PF | 0.8 lag to 0.8 lead |
| Control Sensitivity | 60% |
| Step Time | 5 to 999 sec |
| Discharge Time | 5 to 999 sec |
| Switching Program | Automatic |
| Control Mode | Automatic / Manual |
| Auto Initialization | Yes / No |
| Temperature | Operating: 0°C to 60°C Storage: -20°C to 60°C |
| Humidity (Non-Condensing) | 0% to 95% without moisture consideration |
| Mounting | Panel |
