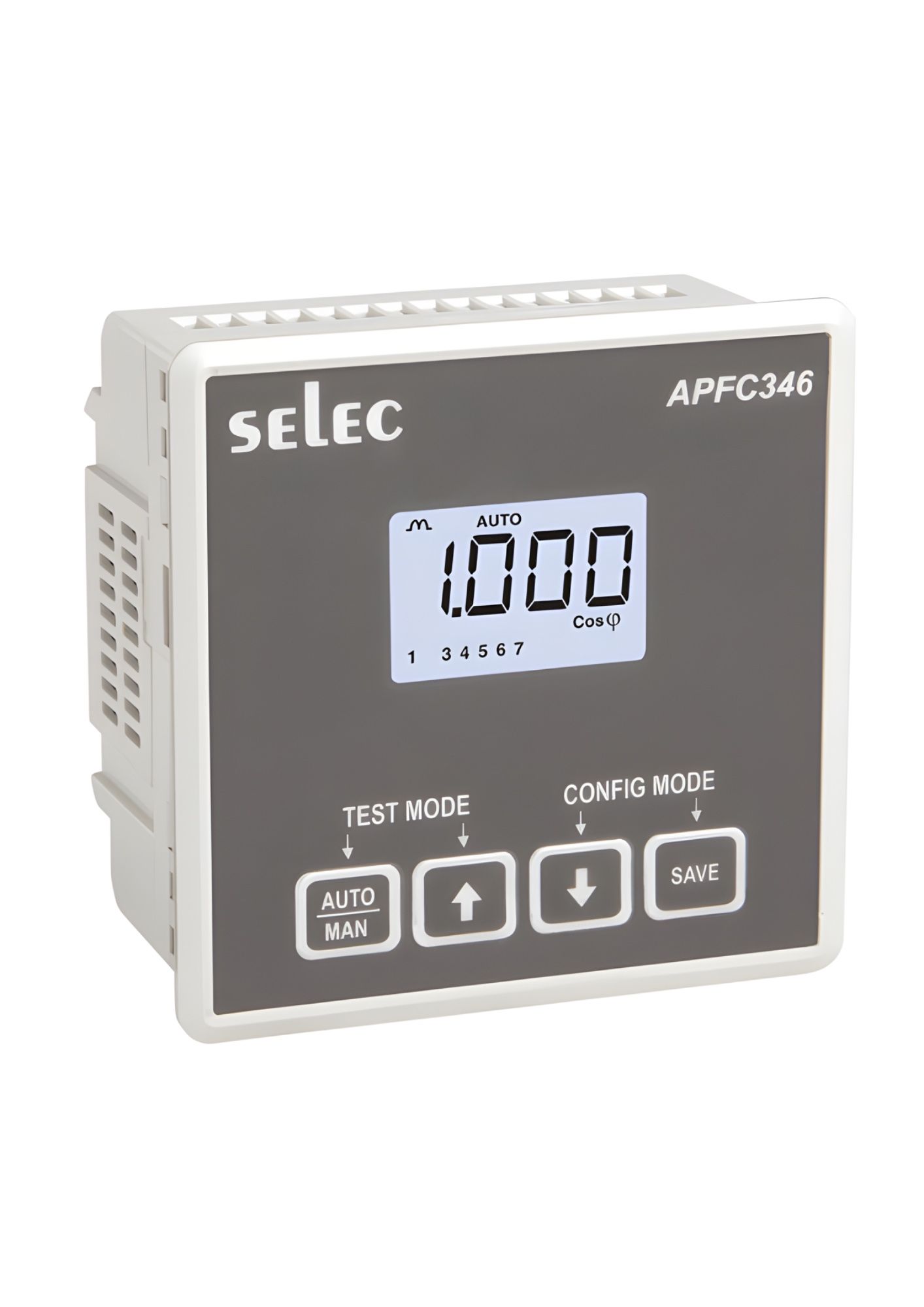

Selec APFC346-108-230V-CE, LCD Display, 2P-2W, 8 Relay Stages, 96x96mm, Panel Mount
In stock
SKU
APFC346-108-230V-CE
Special Price
₹2,889.12
Regular Price
₹6,019.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Display Type | LCD with backlight |
| Digits | 4 digits to show electrical parameter |
| Rated Input Voltage | 50 to 520V AC |
| Rated Input Current Range | Nominal 5A AC (Min 50mA, Max 6A), 1 CT sensing |
| Frequency | 45 - 65 Hz |
| Electrical Connection | 2Ø - 2 wire (Voltage - L2,L3, Current L1) |
| Power Consumption | 7 VA Max |
| Controlling Range | Target PF: -0.800 to +0.800 |
| Switching Program | Automatic |
| Max Number of Steps | 1 to 8 |
| Output Contacts | Relay contact, NO, One Common point |
| Steps | 1 to 8 |
| Rating | 5A @ 250V AC (Max) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Humidity (non-condensing) | 0% to 95% without moisture consideration |
No specifications available for this product.
