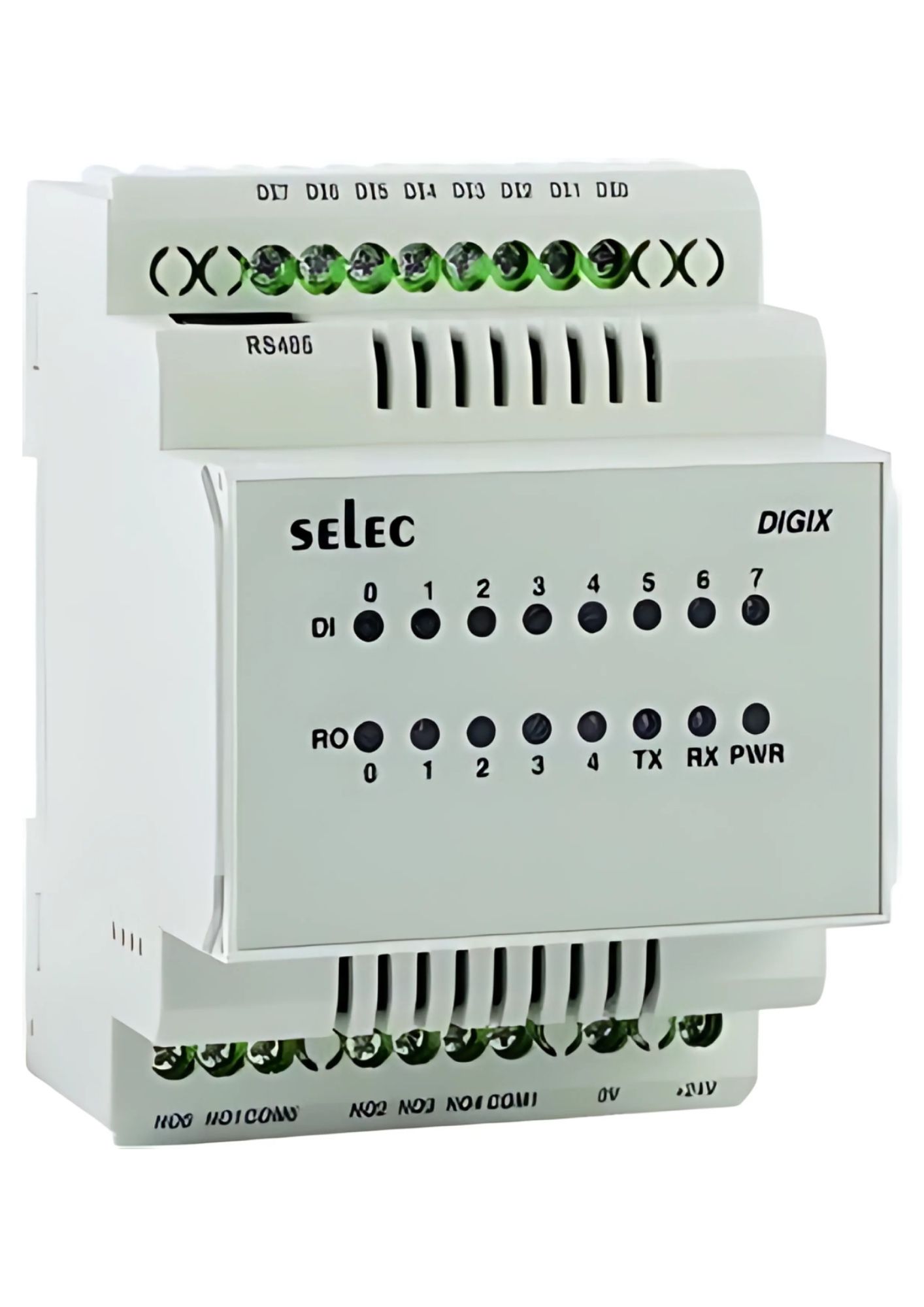

Selec DIGIX-1-0-0-24VDC-B, Smart Relay Blind PLC with LED Indicaton, 8 Digital Inputs & 5 Relay Output, Size 70x90mm, DIN Rail Mount
Selec DIGIX-1-0-0-24VDC-B, Smart Relay Blind PLC with LED Indicaton, 8 Digital Inputs & 5 Relay Output, Size 70x90mm, DIN Rail Mount

Selec DIGIX-1-0-0-24VDC-B, Smart Relay Blind PLC with LED Indicaton, 8 Digital Inputs & 5 Relay Output, Size 70x90mm, DIN Rail Mount

Out of stock
SKU
DIGIX-1-0-0-24VDC-B
Special Price ₹3,385.44 Regular Price ₹7,053.00
(18% GST Extra)
  • Rail Mount Blind PLC with LED indications.
  • 8 Digital Inputs and 5 Relay Outputs.
  • 1 channel Fast Input upto 5 kHz.
  • Power supply: 18 to 30VDC.
  • RJ25 MODBUS RS485 Serial Slave Port for Downloading and Communication

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: LEDs for Input, Output & Communication Status
  • Size: 70 x 90mm
  • Digital Inputs: 8 (PNP Type) Including 1 Fast Input Channel
  • Analog Inputs: N/A
  • Digital Outputs: 5 Relay Outputs
  • Output Rating: 5A @230VAC / 24VDC
  • Analog Outputs: NA
  • RTC With Time Switch Function: N/A
  • Code Memory; 112KB:
  • Communication Interface: RS485 Based MODBUS RTU Protocol
  • Expansion: N/A
  • Supply Voltage: 18 to 30 VDC
  • Mounting Type: DIN Rail Mount
  • FI / Maximum Counting Frequency: FC0 (I0 & I1) - 5KHz, Normal digital input: 30Hz
