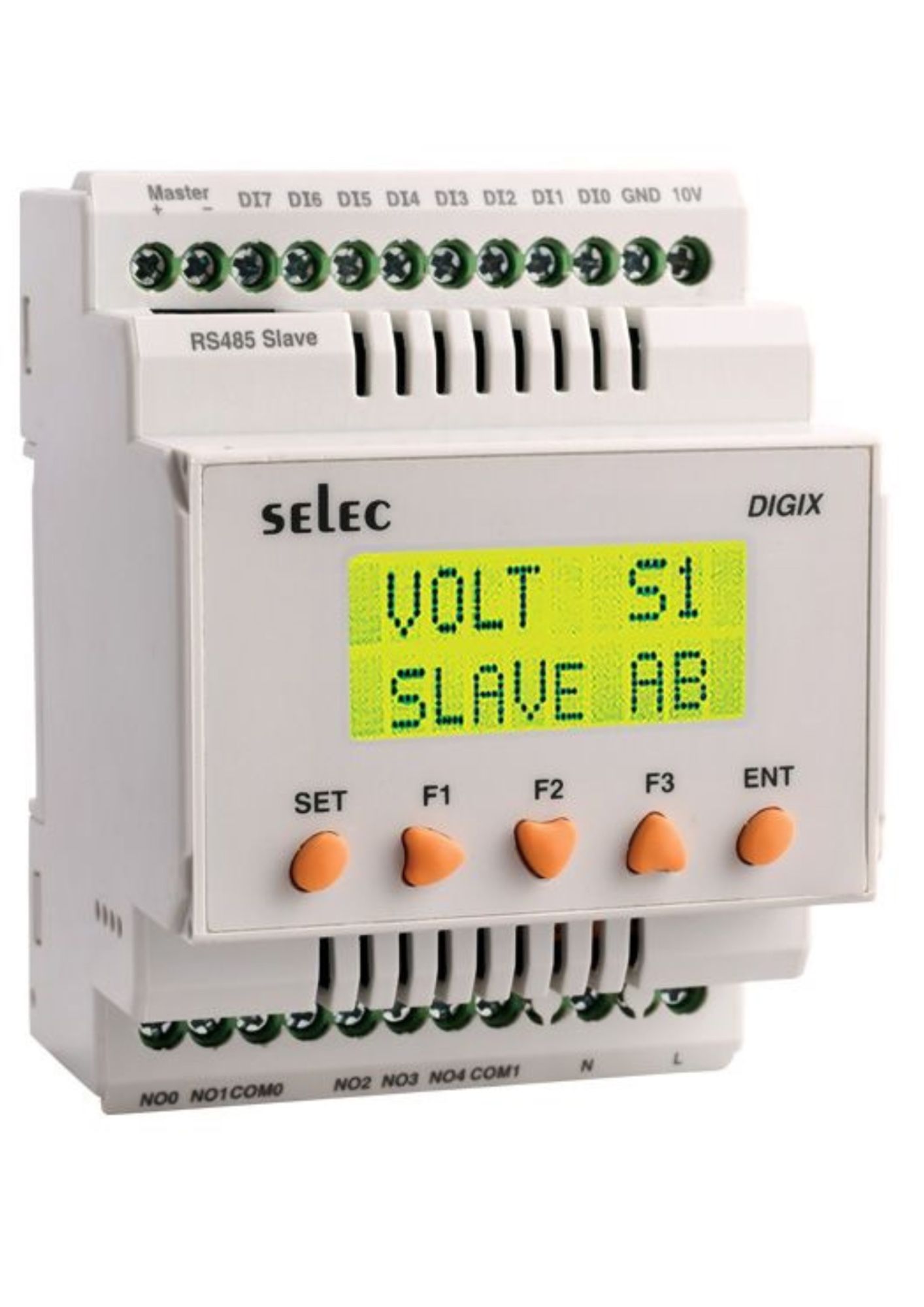

Selec DIGIX-1-1-1-230V, 2 x 8 Characters LCD + 5 keys, 8 Digital Input Smart Relay PLC, 5 Relay Output, RTC and Modbus Expansion, Size 70x90mm, DIN Rail Mount
Selec DIGIX-1-1-1-230V, 2 x 8 Characters LCD + 5 keys, 8 Digital Input Smart Relay PLC, 5 Relay Output, RTC and Modbus Expansion, Size 70x90mm, DIN Rail Mount

Selec DIGIX-1-1-1-230V, 2 x 8 Characters LCD + 5 keys, 8 Digital Input Smart Relay PLC, 5 Relay Output, RTC and Modbus Expansion, Size 70x90mm, DIN Rail Mount

Be the first to review this product
In stock
SKU
DIGIX-1-1-1-230V
Special Price ₹4,957.92 Regular Price ₹10,329.00
(18% GST Extra)
Add to Wish List
  • Rail Mount PLC with 8*2 Characters LCD Text Display with Yellow Green Backlight and with 5 Keys
  • 8 Digital Inputs and 5 Relay Outputs.
  • 1 Channel Fast Input upto 5 kHz.
  • Power Supply
  • RJ25 MODBUS RS485 Serial Slave Port for Downloading and Communication.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: 2 x 8 Characters LCD (with Backlight) + 5 Keys (4 User Configurable)
  • Size: 70 x 90mm
  • Digital Inputs: 8 (PNP Type) Including 1 Fast Input Channel
  • Analog Inputs: NA
  • Digital Outputs: 5 Relay Outputs
  • Output Rating: 5A @230VAC / 24VDC
  • Analog Outputs: NA
  • RTC With Time Switch Function: N/A
  • Code Memory: 112KB
  • Communication Interface: RS485 Based MODBUS RTU Protocol
  • Expansion: N/A
  • Supply Voltage: 100 to 270 V AC/DC , 18 to 30V DC
  • Mounting Type: DIN Rail
  • FI / Maximum Counting Frequency: FC0 (I0 & I1) - 5KHz, Normal digital input
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:Selec DIGIX-1-1-1-230V, 2 x 8 Characters LCD + 5 keys, 8 Digital Input Smart Relay PLC, 5 Relay Output, RTC and Modbus Expansion, Size 70x90mm, DIN Rail Mount
Your Rating
Downloads
document DIGIX-1-1-1-230V-Datasheet (1.29 MB)
document DIGIX-1-1-1-230V-Instruction Manual (291.52 kB)
