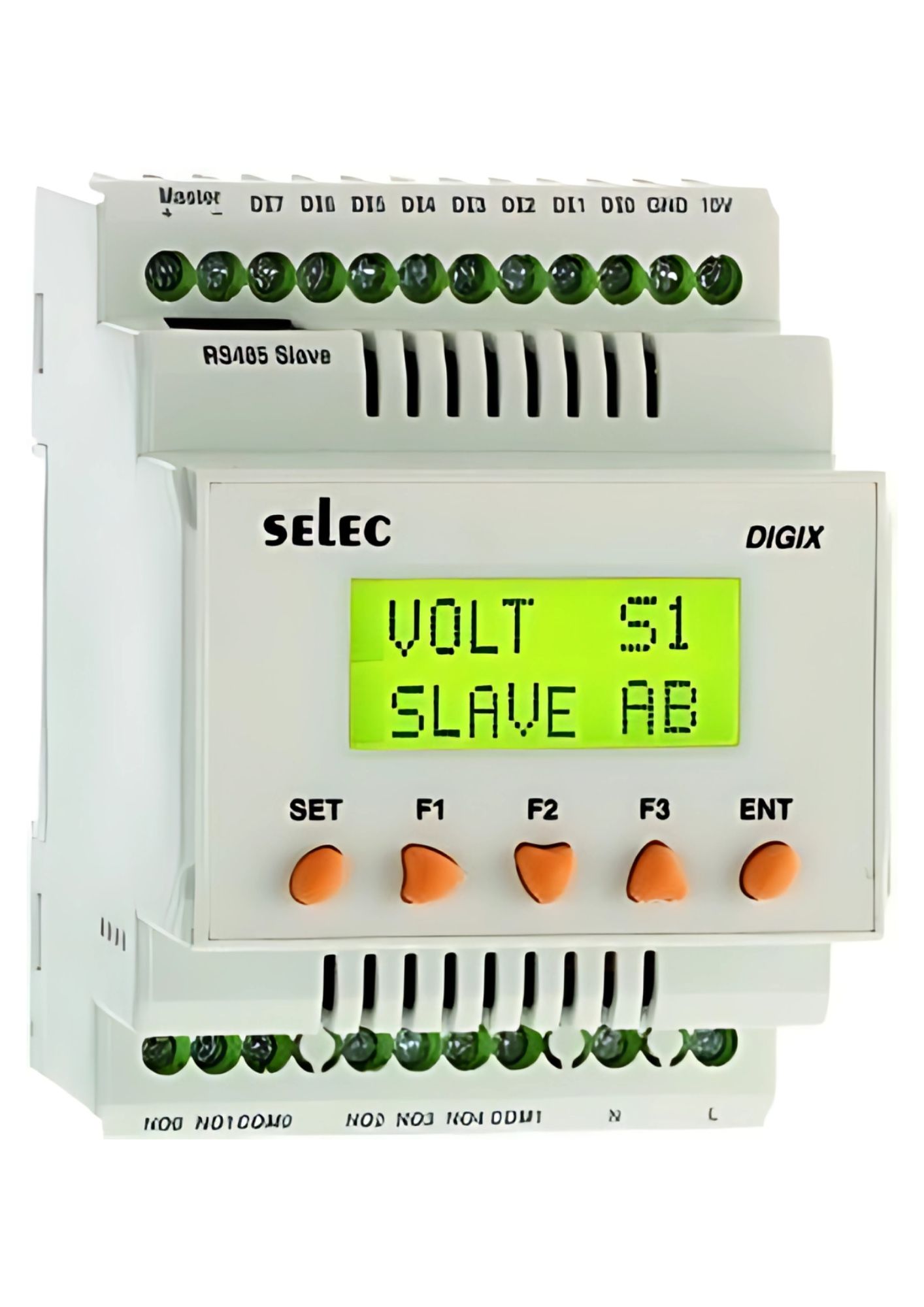

Selec DIGIX-1-230V, 2 x 8 Characters LCD + 5 keys Smart Relay PLC, 8 Digital Input, 5 Relay Output, Size 70x90mm, DIN Rail Mount

In stock

SKU

DIGIX-1-230V

Special Price ₹4,659.84 Regular Price ₹9,708.00

(18% GST Extra)

Qty

Add to Wish List

Rail Mount PLC with 8*2 Characters LCD Text Display with Yellow Green Backlight and with 5 Keys
8 Digital Inputs and 5 Relay Outputs.
1 Channel Fast Input upto 5 kHz.
Power Supply: 90 to 270VAC
RJ25 MODBUS RS485 Serial Slave Port for Downloading and Communication.

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Display Type: 2 x 8 Characters LCD (with Backlight) + 5 Keys (4 User Configurable)
Size: 70 x 90mm
Digital Inputs: 8 (PNP Type) Including 1 Fast Input Channel
Analog Inputs: NA
Digital Outputs: 5 Relay Outputs
Output Rating: 5A @230VAC / 24VDC
Analog Outputs: NA
RTC With Time Switch Function: N/A
Code Memory: 112KB
Communication Interface: RS485 Based MODBUS RTU Protocol
Expansion: N/A
Supply Voltage: 100 to 270 V AC/DC
Mounting Type: DIN Rail
FI / Maximum Counting Frequency: FC0 (I0 & I1) - 5KHz, Normal digital input: 30Hz
