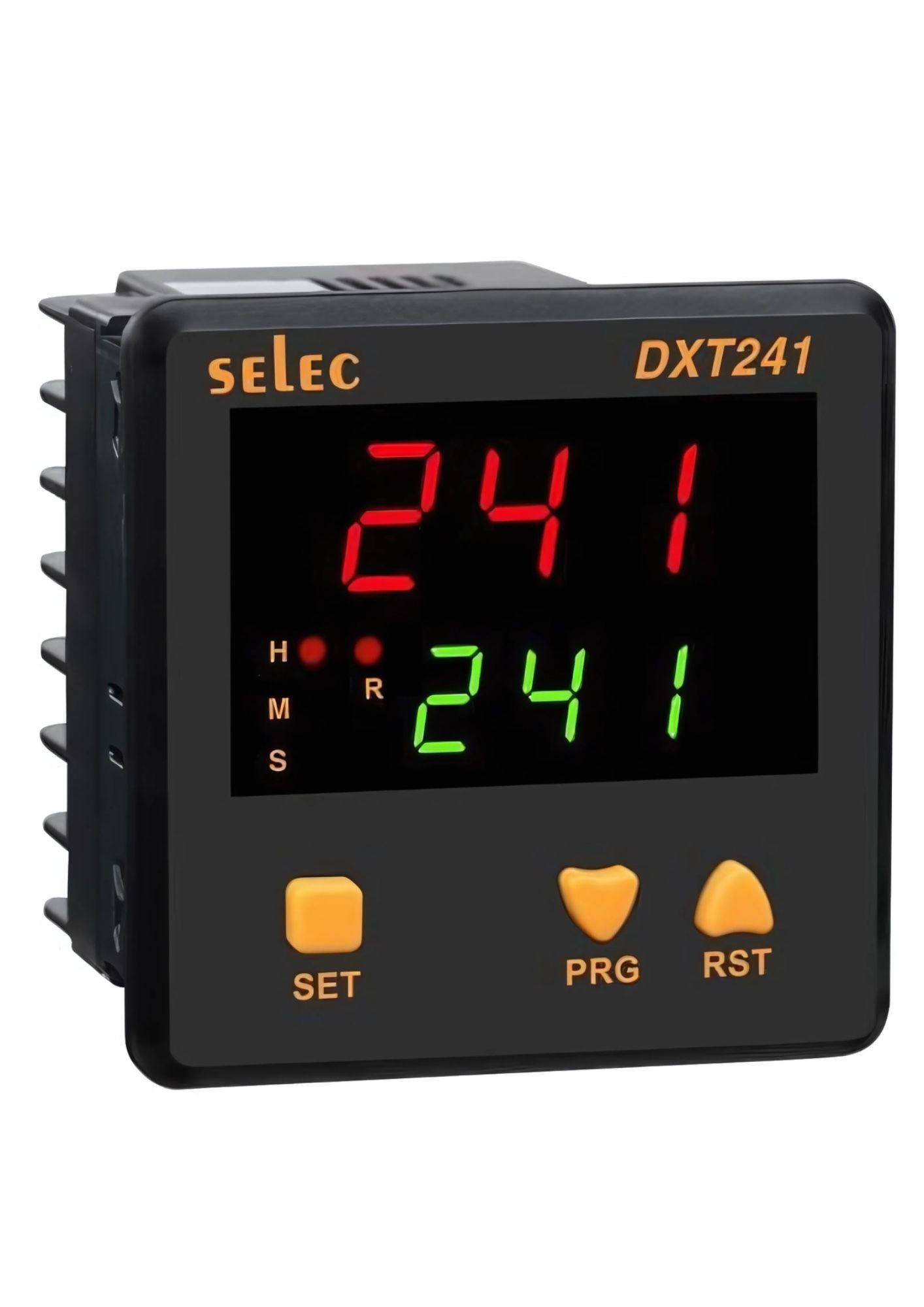

Selec DXT241, 3 Digit Dual LED Display, Multifunction Digital Timer, Size 72x72mm, Panel Mount, Low Depth
Selec DXT241, 3 Digit Dual LED Display, Multifunction Digital Timer, Size 72x72mm, Panel Mount, Low Depth

Selec DXT241, 3 Digit Dual LED Display, Multifunction Digital Timer, Size 72x72mm, Panel Mount, Low Depth

Out of stock
SKU
DXT241
Special Price ₹994.08 Regular Price ₹2,071.00
(18% GST Extra)
  • 3+3 digit, Single set point
  • LED indications - Relay ON, hr,min,sec
  • Relay modes - ON delay, Interval, Cyclic ON first, Cyclic OFF first
  • Multi range - 9 time ranges

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Display Type 3+3 Digits, 7 Segment LED, Dual Display (Red/Green)
Relay Contact 2 C/O SPDT
Start Input Pulse/ Gate
Range 9.99 / 99.9 / 999sec, 9.59 min sec, 99.9 / 999min, 9.59hr : min, 99.9 / 999 hr
Operating Modes ON Delay / Interval / Cyclic ON First / Cyclic OFF First
Feature Memory Retention
Reset Front, Remote, Power Interruption
Counting Direction Up / Down
Supply Voltage 90 to 270VAC/DC
Size 72 x 72 mm
Mounting Type Panel Mount
Product Code Output 1 Output 2 Supply Voltage
DXT241 Relay (5A) Relay (5A) 90 to 270V AC/DC
