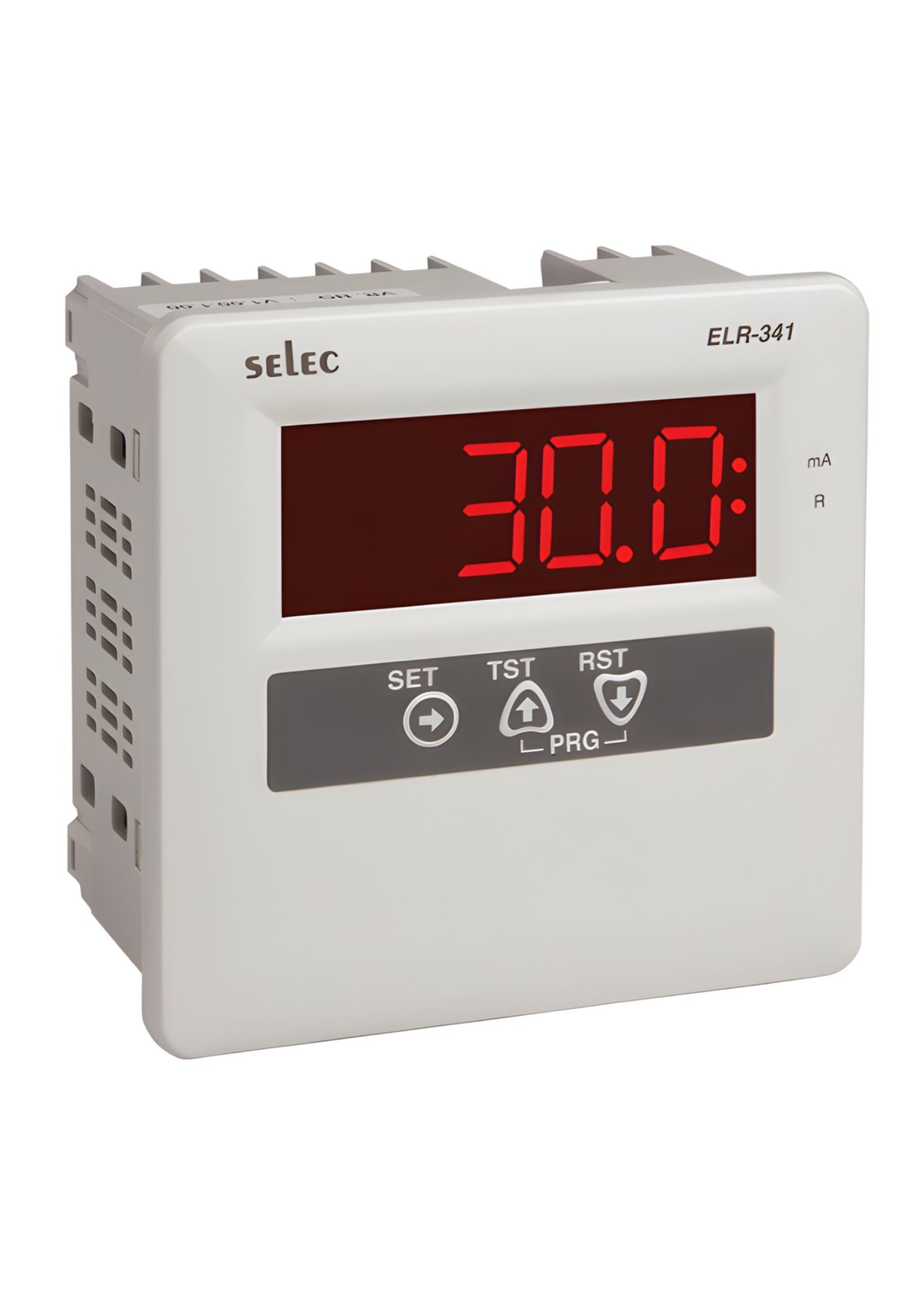

Selec ELR-341-1, 3 Digit 7 Segment LED Display, Earth Leakage Monitoring Relay, 96x96mm, Panel Mount
In stock
SKU
ELR-341-1
Special Price
₹1,473.60
Regular Price
₹3,070.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Measuring Parameter | Monitors True RMS Earth Leakage Current (upto 30A) |
| Electrical Connection | 1Ø-2W, 3Ø-4W, 3Ø-3W |
| Supply Voltage | 90 - 270V AC/DC |
| Trip Leakage Current Range | 30mA - 30A |
| Display Current Range | 15mA - 33A |
| Time Ranges | 0 to 999 sec |
| Response Time |
< 30ms (if trip current 5 × set value & Instantaneous trip is ON), < 50ms (if trip current = 1 × set value) |
| CBCT Detection | Yes, when CBCT absent or short |
| Accuracy | ± 5% setting of current, ± 5% time setting for ±100ms |
| Output Contact | 1 C / O (SPDT) |
| Output Rating | NO / 5A @ 250V AC / 28V DC |
| Size | 96 × 96mm |
| Mounting Type | Panel mount |
