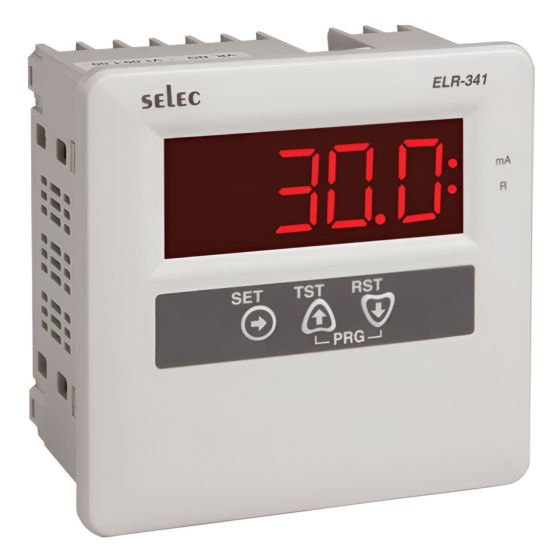

Selec ELR341-1, 3 Digits LED Display Earth Leakage Relay, 30mA-30A Settable, Single & Three Phase Systems, Size 96x96mm, Panel Mount
Selec ELR341-1, 3 Digits LED Display Earth Leakage Relay, 30mA-30A Settable, Single & Three Phase Systems, Size 96x96mm, Panel Mount

Selec ELR341-1, 3 Digits LED Display Earth Leakage Relay, 30mA-30A Settable, Single & Three Phase Systems, Size 96x96mm, Panel Mount

Out of stock
SKU
ELR341-1
Special Price ₹1,473.60 Regular Price ₹3,070.00
(18% GST Extra)
  • Detects Leakage current for 1Ø & 3Ø systems
  • Range: 30mA to 30A
  • 1 C / O (SPDT) Relay output
  • Supply voltage of 90 - 270V AC/DC
  • Test and Reset Function via Front / Remote
  • DIN-rail mounting
  • CE Certified

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Measuring Parameter: Monitors True RMS Earth Leakage Current (upto 30A )
  • Electrical Connection: 1Ø-2W, 3Ø-4W, 3Ø-3W
  • Supply Voltage: 90 - 270V AC/DC
  • Trip Leakage current range: 30mA - 30A
  • Display Current range: 15mA - 33A
  • Time Ranges: 0 to 999 sec
  • Response time: < 30ms (if trip current 5 x set value & Instantaneous trip is ON), < 50ms (if trip current = 1 x set value)
  • CBCT DETECTION: Yes, when CBCT absent or short
  • Accuracy: ± 5% setting of current, ± 5% time setting for ±100ms
  • Output Contact: 1 C / O (SPDT )
  • Output Rating: NO / 5A@250V AC / 28V DC
  • Size: 96X96mm
  • Mounting Type: Panel mount

No specifications available for this product.
