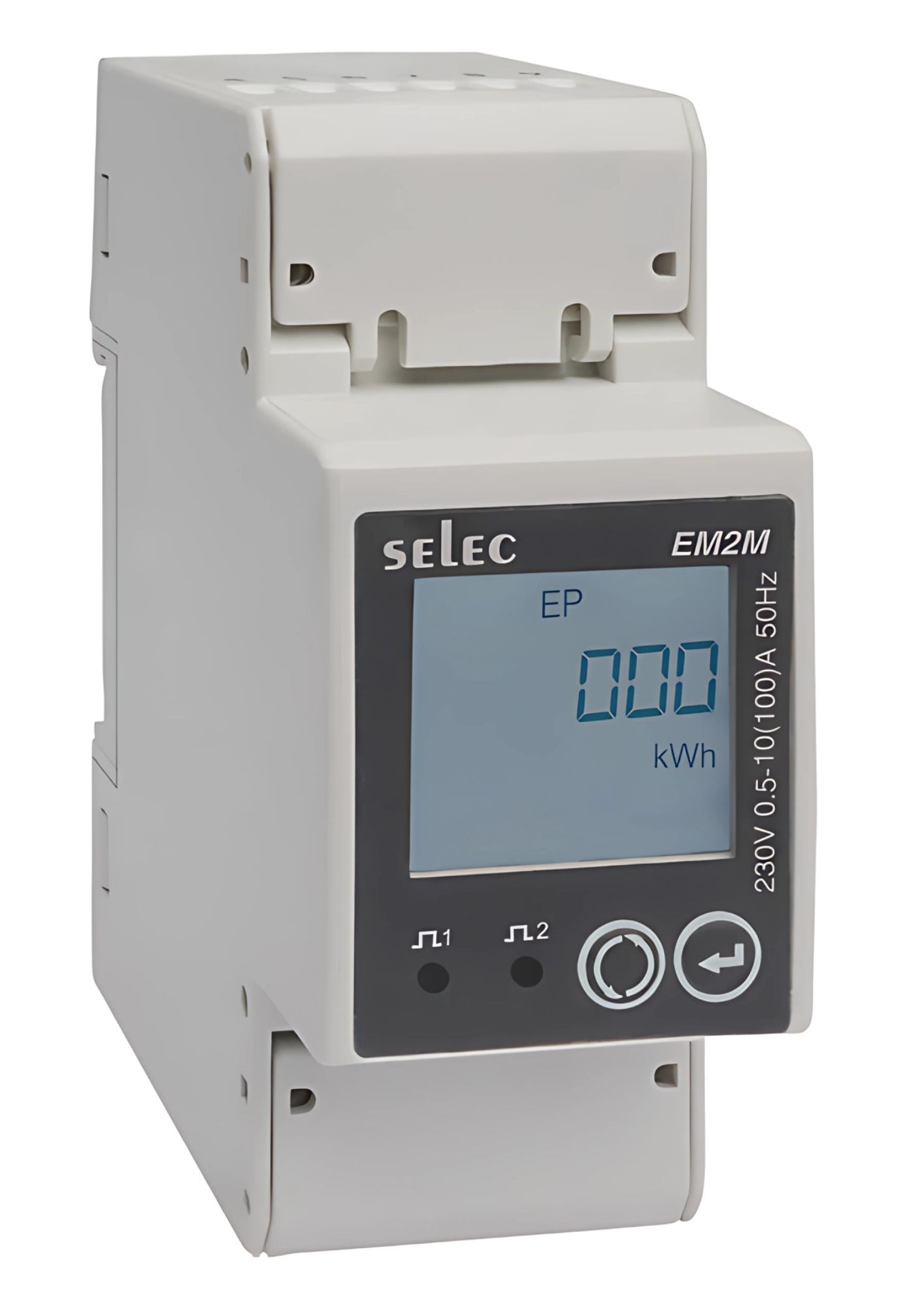

Selec EM2M-1P-C-100A, 7 Digits LCD Display Energy Meter, RS485 Communication, Pulse Output, Single Phase, Size 35x90mm, DIN Rail Mount
Selec EM2M-1P-C-100A, 7 Digits LCD Display Energy Meter, RS485 Communication, Pulse Output, Single Phase, Size 35x90mm, DIN Rail Mount

Selec EM2M-1P-C-100A, 7 Digits LCD Display Energy Meter, RS485 Communication, Pulse Output, Single Phase, Size 35x90mm, DIN Rail Mount

In stock
SKU
EM2M-1P-C-100A
Special Price ₹1,655.04 Regular Price ₹3,448.00
(18% GST Extra)
Add to Wish List
  • Compatible with 1 phase 2 wire system, Self-Supplied
  • 176 to 276V AC measurement.
  • Direct current measurement up to 100A
  • Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active energy, Class 2 for reactive energy
  • Two pulse outputs configurable for Import/Export Energy measurement
  • RS485 Modbus communication, Mbus variant available
  • CE, MID Certified
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: LCD with Backlight
  • Display Configuration: 7 Digits
  • Electrical Connection: 1Ø - 2W
  • Type of Output: Two Pulse Outputs
  • Communication Protocol: RS485 and MODBUS RTU
  • Features: Self Powered, 100A Direct Connection, Bi - directional Import / Export Energy measurement, Two Pulse Outputs, Power (Active / Reactive/Apparent)
  • Power Consumption: 8VA Max
  • Input Current Range: 5A AC ( Min – 500mA, Max – 100A)
  • Supply Voltage: 176 to 276V AC (Self – Powered), (45 to 65Hz)
  • Mounting Type: Din Rail
  • Size: 35 x 90mm
  • Certification: CE
Product Code Supply Voltage Output Certification
Pulse Output Communication (RS485)
EM2M-1P-C-100A 176 to 276V AC (Self - Supplied) Yes (2) Yes (RS485) CE RoHS
EM2M-1P-C-100A-MID 176 to 276V AC (Self - Supplied) Yes (2) Yes (RS485) CE RoHS , MID
