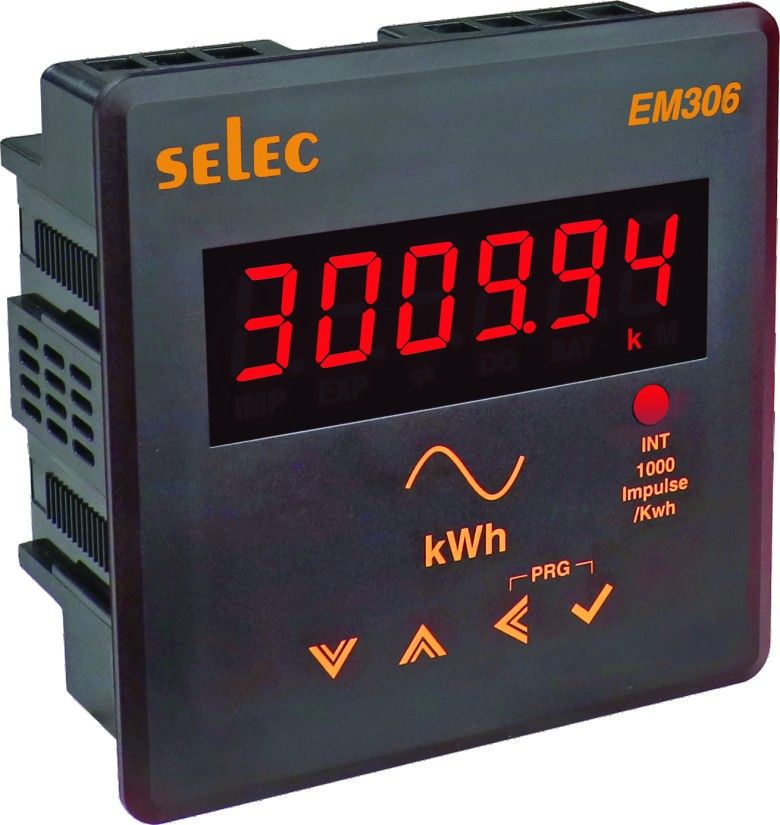

Selec EM306-C-D, 6 Digits LED Display Energy Meter, RS485 Communication, Digital Input,Three Phase, Size 96x96mm, Panel Mount
Selec EM306-C-D, 6 Digits LED Display Energy Meter, RS485 Communication, Digital Input,Three Phase, Size 96x96mm, Panel Mount

Selec EM306-C-D, 6 Digits LED Display Energy Meter, RS485 Communication, Digital Input,Three Phase, Size 96x96mm, Panel Mount

In stock
SKU
EM306-C-D
Special Price ₹1,808.64 Regular Price ₹3,768.00
(18% GST Extra)
Add to Wish List
  • Compatible with 1 phase 2 wires, 2 phase 3 wire, 3 phase 4 wires systems.
  • 11 to 300V AC (L-N), 19 to 519V AC (L-L) measurement
  • Accuracy of Class 1 for energy
  • LED Display with 1 row of 6 digits
  • Dual source input, RS485 and MODBUS RTU (EM306-C-D)
  • LED for Pulse Indication
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: 7 Segment LED Display
  • Display Configuration: 1 row of 6 digits
  • Electrical Connection: 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W
  • Type of Output: Pulse Output
  • Features: Active Energy monitoring with other multifunction parameters like Power, PF (EM306-C-D)
  • Power Consumption: 8VA Max
  • Communication Protocol: RS485 and MODBUS RTU
  • CT Primary: 1 / 5A to 10kA (Programmable for Any Value)
  • CT Secondary: 1 / 5A (Programmable)
  • PT Primary: 100V to 500kV (Programmable for any value)
  • PT Secondary: 100 to 500V AC (L - L) (Programmable for any value)
  • Supply Voltage/D.G Sensing: 85 to 270 V AC 50/60Hz
  • Size: 96 x 96mm
  • Mounting Type: Panel Mount
Product Code Supply Voltage Input Output
Pulse Output Communication (RS485)
EM306 85 TO 276 V AC, 50/60 Hz -- Yes --
EM306-C-D 85 to 276 V AC, 50/60 Hz D.G, 80 to 270V AC (45/65Hz) -- Yes
