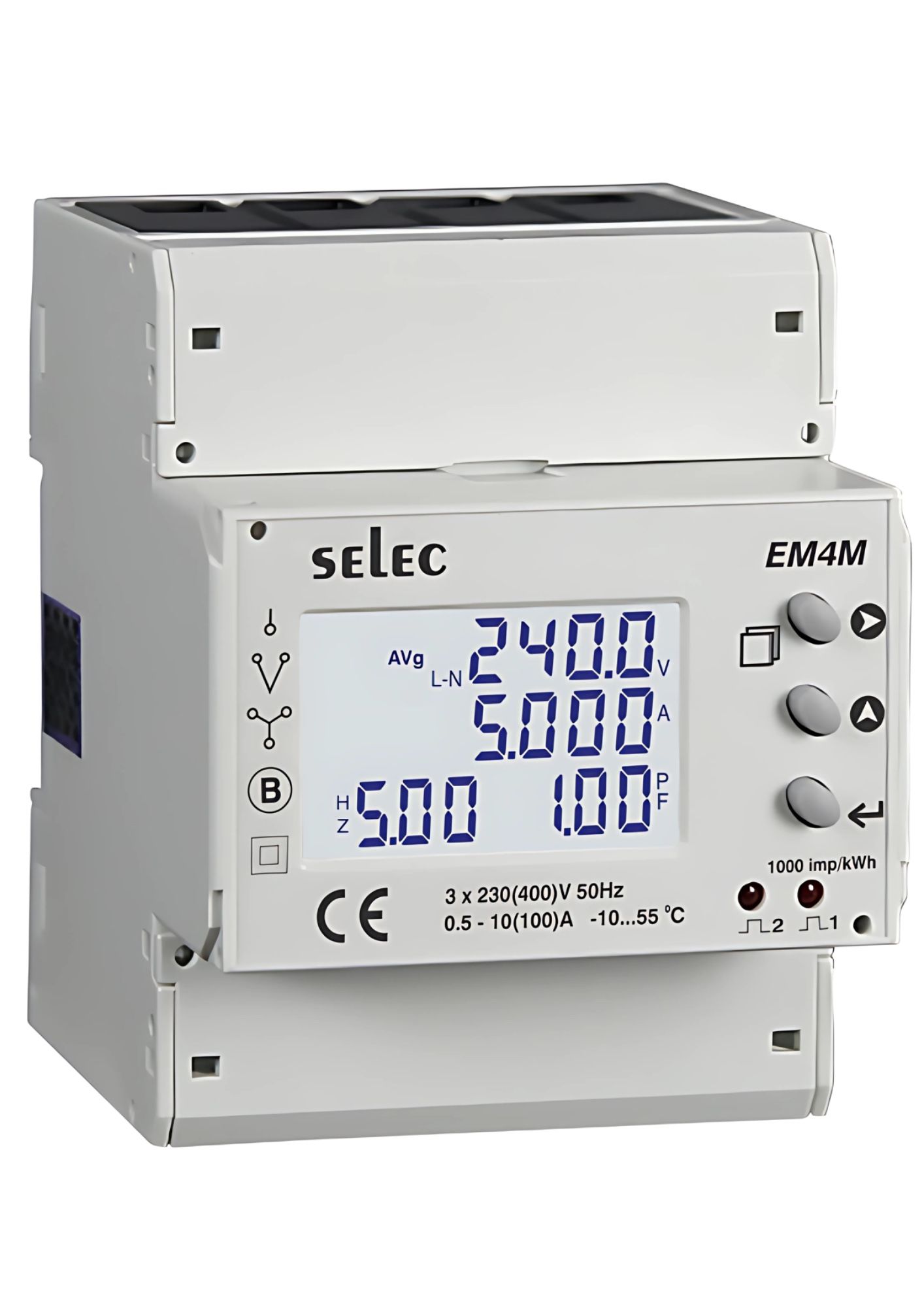

Selec EM4M-3P-C-100A, 7 Digits LCD Display Energy Meter, RS485 Communication, Pulse Output, Three Phase, Size 70x90mm, DIN Rail Mount
Selec EM4M-3P-C-100A, 7 Digits LCD Display Energy Meter, RS485 Communication, Pulse Output, Three Phase, Size 70x90mm, DIN Rail Mount

Selec EM4M-3P-C-100A, 7 Digits LCD Display Energy Meter, RS485 Communication, Pulse Output, Three Phase, Size 70x90mm, DIN Rail Mount

Be the first to review this product
In stock
SKU
EM4M-3P-C-100A
Special Price ₹4,086.24 Regular Price ₹8,513.00
(18% GST Extra)
Add to Wish List
  • Direct current measurement up to 100A, Dual-Input measurement
  • Compatible with 1 phase 2 wires, 3 phase 3 wires, 3 phase 4 wires systems
  • 85 to 285V (L-N), 120 to 494V (L-L) measurement , Self Supplied
  • Accuracy of ¬± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active energy, Class 2 for reactive energy
  • Two pulse outputs configurable for Import/Export Energy measurement
  • RS485 Modbus communication
  • CE Certified
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: LCD with Backlight
  • Display Configuration: 1 Row of 4 Digits, 2 Rows of 7 Digits
  • Electrical Connection: 1Ø - 2W, 3Ø - 3W, 3Ø - 4W
  • Type of Output: Two Pulse Outputs
  • Communication Protocol: RS485 and MODBUS RTU
  • Features: D.G Sensing, Self Powered, 100A Direct Connection, Multifunction parameter monitoring, Bi - directional Import / Export Energy measurement, Two Pulse Outputs, Power (Active / Reactive/Apparent), Max-Demand Power
  • Power Consumption: 4VA Max
  • Input Current Range: Ib: 10A (Min - 0.5A, Max - 100A)
  • Supply Voltage: 85 to 285V AC (L-N), 120 to 494V AC(L-L),45 to 65Hz (Self-Powered)
  • Mounting Type: Din Rail
  • Size: 70 x 90mm
  • Certification: CE
Product Variants
Product Code Supply Voltage Output Certification
Pulse Output Communication
EM4M-3P-C-100A 85 to 285V AC (L-N) , 120 to 494V AC(L-L) (Self-Powered) Yes (2) RS485 CE RoHS
