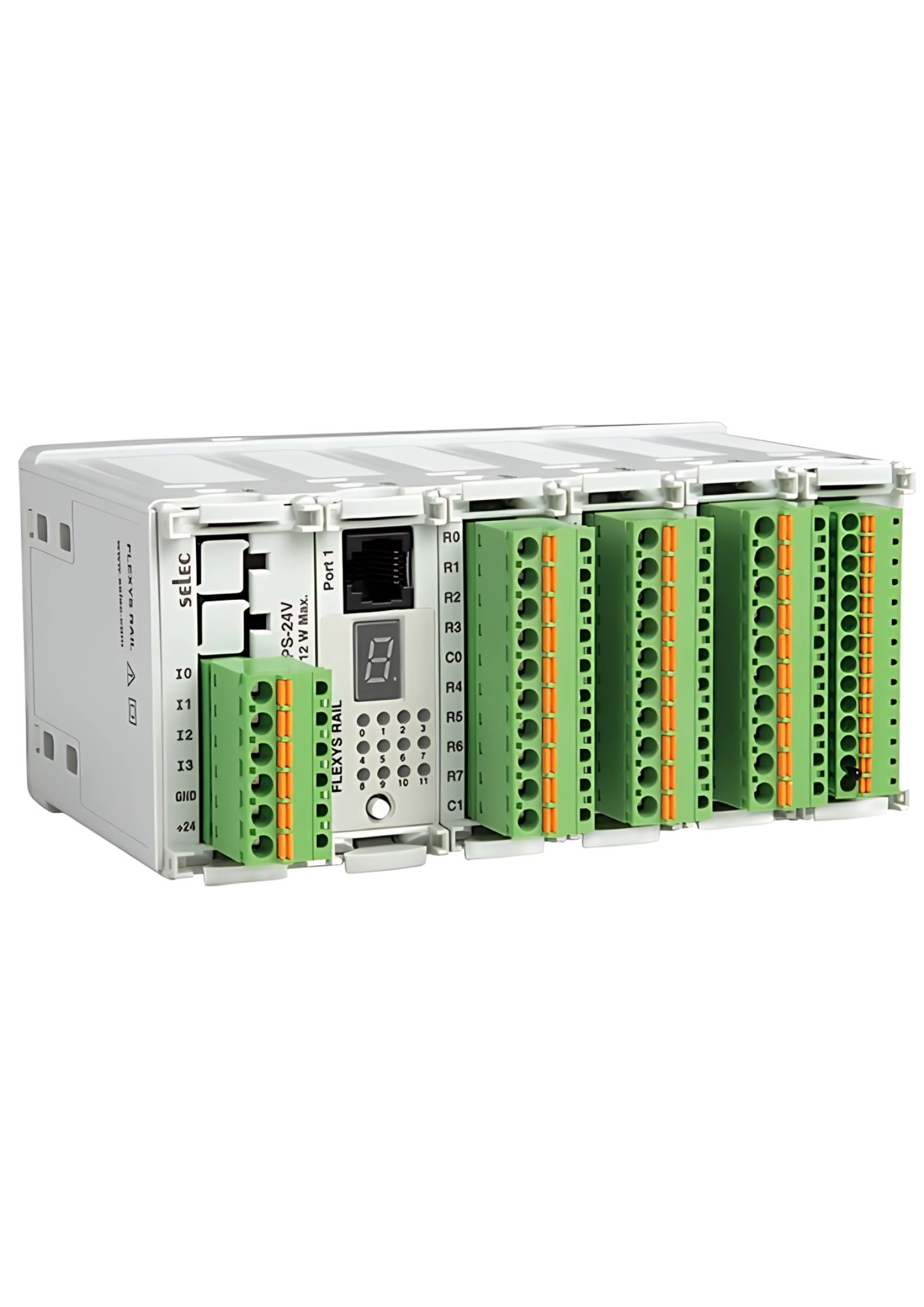

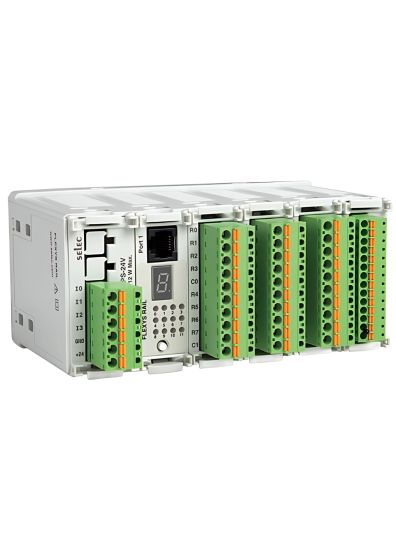

Selec FL-RL-PS-230V, Modular type PLC - Flexys Rail, Power Supply Card 230V, Size 140 x 93.6mm, DIN Rail Mount
Selec FL-RL-PS-230V, Modular type PLC - Flexys Rail, Power Supply Card 230V, Size 140 x 93.6mm, DIN Rail Mount

Selec FL-RL-PS-230V, Modular type PLC - Flexys Rail, Power Supply Card 230V, Size 140 x 93.6mm, DIN Rail Mount

In stock
SKU
FL-RL-PS-230V
Special Price ₹1,264.32 Regular Price ₹2,634.00
(18% GST Extra)
Add to Wish List
  • Rail Mount PLC with 4 Slots for IO Card
  • 4 DI on Power Supply card ( Only for 24VDC variant)
  • DI, DO, AI, AO as per card selection
  • 2 Channel Fast Input Upto 5 Khz
  • Power Supply: 90 to 270 VAC
  • RTC, MODBUS and Proprietory Expansion
  • RJ25 MODBUS RS485 Slave and Master Communication port for Downloading and Communication Purpose
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Supply Voltage: 230V AC (90~270V AC)
  • Sensor Supply: 10V (100 mA)
  • Power Consumption: 10VA
  • Reverse Polarity Protection: NA
  • Voltage interruption: Up to 10 ms
  • Operating Temperature: 0 to 55°C
  • Storage Temperature: -20 to 70°C
  • Humidity: 95%
  • Connector: Spring type pluggable terminal block (5.08 mm pitch)
Product Code Description Certification
FL-RL-BS-6 Flexys Rail Base Card CE, RoHS
FL-RL-DI04-PS-24V Flexys Rail Power Supply Card 24VDC, 4 Digital Inputs CE, RoHS
FL-RL-LG-1-1-1 Flexys Rail Logic Card RTC, Modbus & Proprietary Expansion CE, RoHS
FL-RL-PS-230V Flexys Rail Power supply Card 230VAC -
