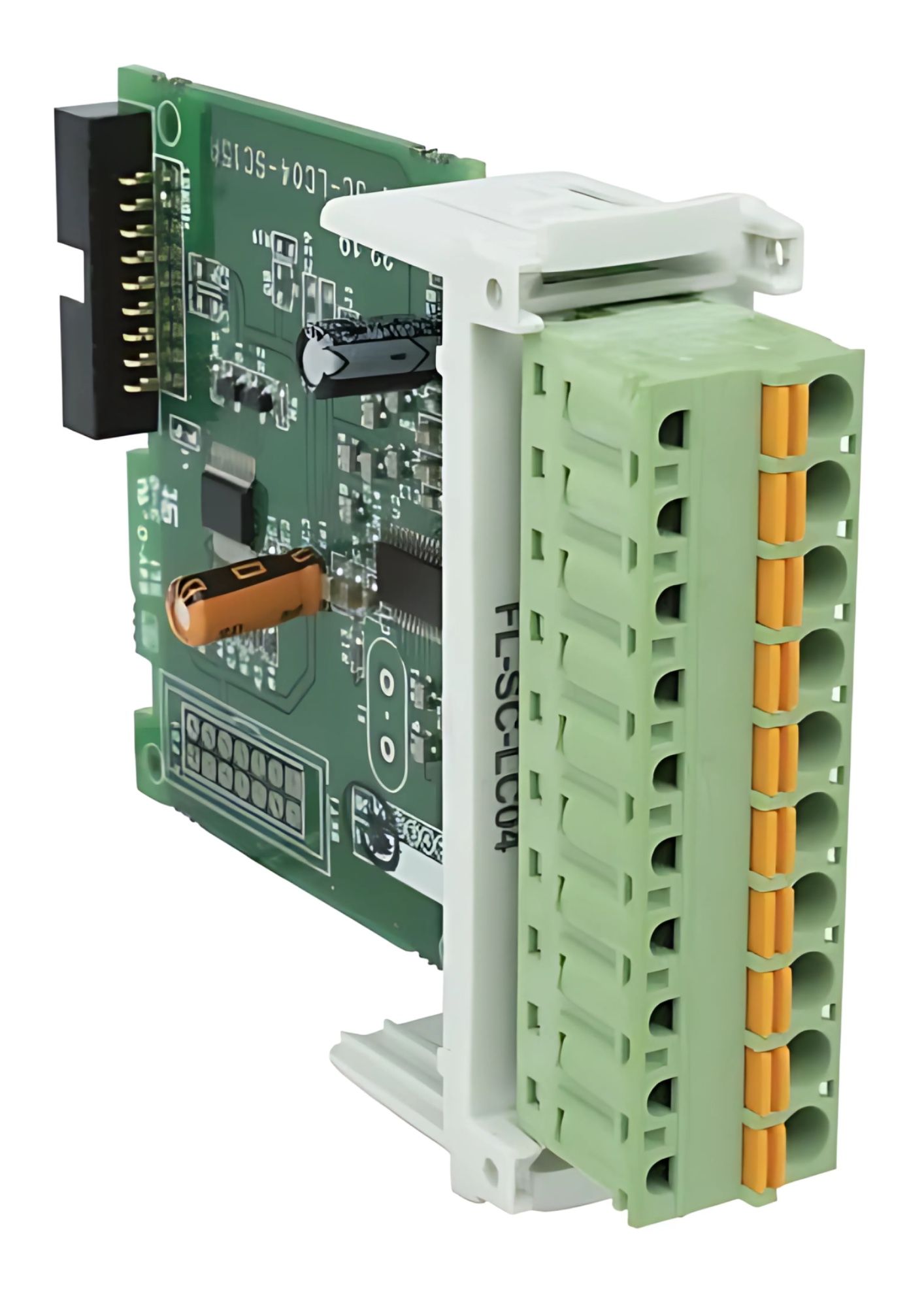

Selec FL-SC-LC04, Modular type PLC - Flexys IO Cards, 4 Channel Loadcell Input Card, Plug Type
Selec FL-SC-LC04, Modular type PLC - Flexys IO Cards, 4 Channel Loadcell Input Card, Plug Type

Selec FL-SC-LC04, Modular type PLC - Flexys IO Cards, 4 Channel Loadcell Input Card, Plug Type

Out of stock
SKU
FL-SC-LC04
Special Price ₹9,521.76 Regular Price ₹19,837.00
(18% GST Extra)
  • Plug in module
  • Easy to connect & replace in Flexys GT35, Flexys rail, Flexys Panel TX4 & EXP FLEX 2M
  • Configured via selpro software
  • Spring type pluggable terminals

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • No. of channels: 4 Channels
  • Measurement range: ±19.5mV, ±39mV, ±1.25V, ±2.5V
  • Excitation output voltage: 5V DC ±10%
  • Type of input: Differential
  • Digital resolution: 24 Bits
  • Applicable sensor type : 4 Wire
  • Input offset drift : 100nV/° C
  • Temperature coef. span : ±2.5ppm/° C
  • Linearity error : ±0.05% full scale
  • Gain error : 0.1%
  • Gain drift : 3ppm/° C
  • Conversion time : 50ms to 400ms (User configurable
  • Permitted load cell resistance : 350Ω
  • Common mode rejection @ 50/60 Hz : ≥100dB
  • Ambient operating temperature: 0°C to 55°C
  • Ambient storage temperature: -20°C to 70°C
  • Humidity: 95%
  • Weight: 40gms
Product Code Description Certification
FL-SC-AI03-NTC-AI03-I 3 Channel Analog Input - NTC, 3 Channel Analog Input - Current Card CE, RoHS In process
FL-SC-AI03-U-AO02-U 3 Channel Analog Input Universal, 2 Channel Analog Output Universal Card CE, RoHS In process
FL-SC-AI04-RTD 4 Channel Analog Input Card RTD (PT-100) CE, RoHS
FL-SC-AI04-TC 4 Channel Differential Analog Input Card Thermocouple CE, RoHS
FL-SC-AI04-U 4 Channel Analog Input Card Universal CE, RoHS In process
FL-SC-AI06-I 6 Channel Analog Input Card Current CE, RoHS
FL-SC-AI06-V 6 Channel Analog Input Card Voltage CE, RoHS
FL-SC-AIDF04-TC 4 Channel Differential Analog Input Card Thermocouple CE, RoHS
FL-SC-AO04-I 4 Channel Analog Output Card Current CE, RoHS
FL-SC-AO04-V 4 Channel Analog Output Card Voltage CE, RoHS
FL-SC-DI04-RO04 4 Digital Input, 4 Relay Output Card CE, RoHS
FL-SC-DI10 10 Digital Inputs Card CE, RoHS
FL-SC-DI14 14 Digital Inputs Card CE, RoHS
FL-SC-LC04 4 Channel Load Cell input card CE, RoHS In process
FL-SC-RO08 8 Channel Relay Output Card CE, RoHS
FL-SC-TO08 8 Channel Transistor Output Card CE, RoHS
