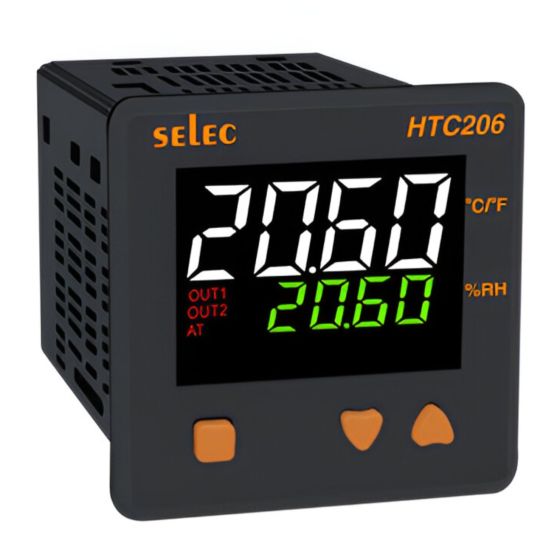

Selec HTC206, 4+4 Digit Dual Display Humidity + Temperature Controller, RH/RTD Sensor Input 2 Relay Control Output, Size 72x72mm, Panel Mount
Selec HTC206, 4+4 Digit Dual Display Humidity + Temperature Controller, RH/RTD Sensor Input 2 Relay Control Output, Size 72x72mm, Panel Mount

Selec HTC206, 4+4 Digit Dual Display Humidity + Temperature Controller, RH/RTD Sensor Input 2 Relay Control Output, Size 72x72mm, Panel Mount

In stock
SKU
HTC206
Special Price ₹2,311.20 Regular Price ₹4,815.00
(18% GST Extra)
Add to Wish List
  • 4 digit dual display with RH input
  • RH sensor enclosed with unit
  • ON-OFF control for humidity
  • 10A SPDT Relay output
  • 0% - 100% Humidity control range
  • 4 digit LED display with RTD(PT100) input
  • ON-OFF/PID control for temperature
  • Auto tune / Self tune PID
  • 10A SPDT/12V SSR Relay output
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: 7 Segment LED Dual Display
  • Display Configuration: 4+4 digits
  • Type of Inputs: 5V RH (HS-A-100) sensor for Humidity, RTD(PT100) sensor for Temperature
  • Resolution: 0.1 / 1 for RH / RTD inputs
  • Accuracy: RTD: (±0.25% of span or 1° whichever is greater) (20min of warm up time) Cold Junction Calibration accuracy for RTD input: (0.1% of F.S ± 1° C) Humidity: (±3% for RH 10% to 80%, ±4% for below 10% or above 80%.)
  • Type of Output: Relay
  • Set Point: 2
  • Control Output: For Humidity: (ON-OFF) For Temperature: (ON-OFF / PID control)
  • Feature: Load protection protocol, Low / High Alarm, Free RH sensor with unit
  • Supply Voltage: 90~270V AC/DC
  • Size: 72 x 72mm
  • Mounting Type: Panel Mount
