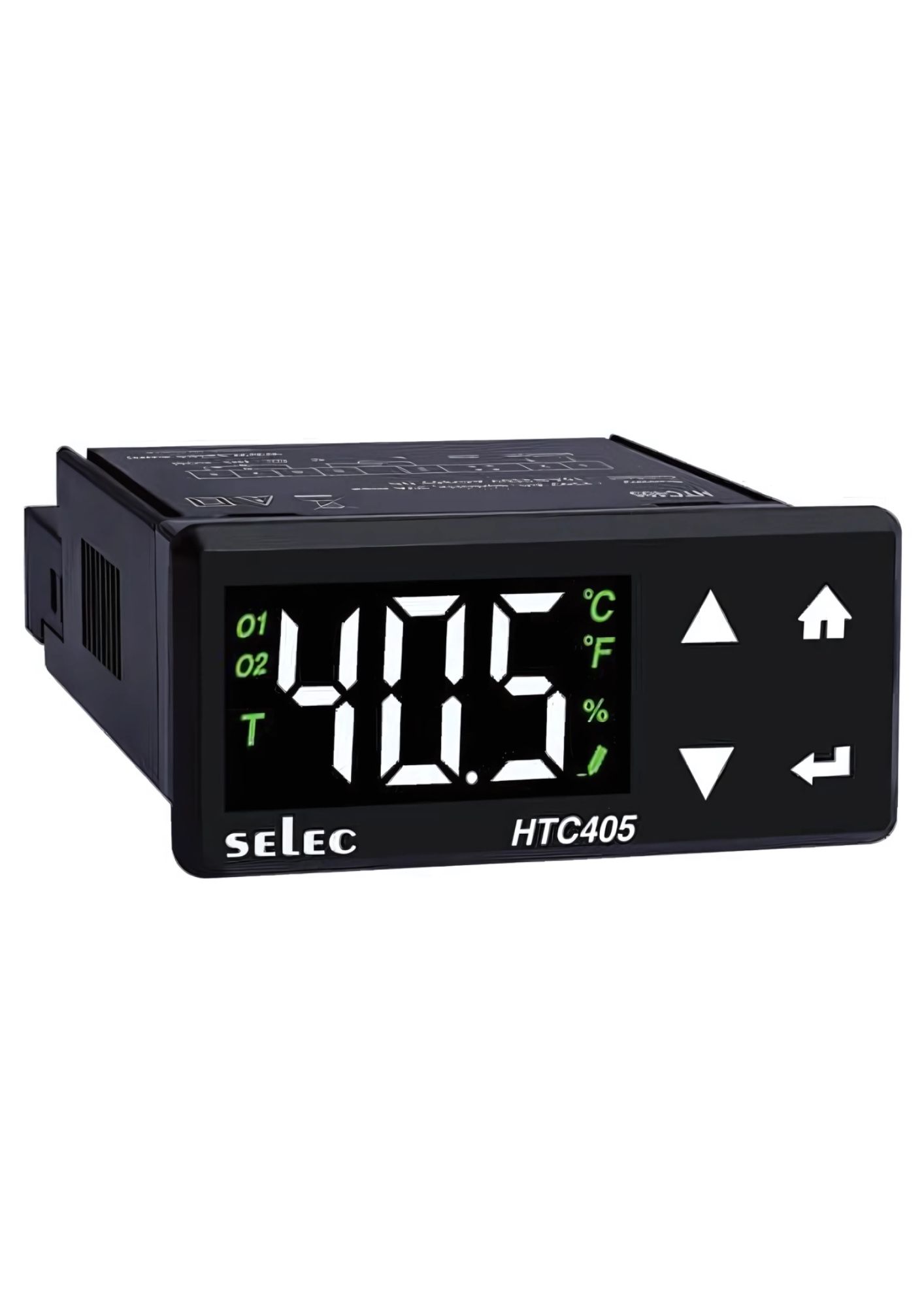

Selec HTC405, 3 Digit Single Display Humidity + Temperature Controller, RH/RTD Sensor Input 2 Relay Control Output, Size 36x72mm, Panel Mount
In stock
SKU
HTC405
Special Price
₹2,075.52
Regular Price
₹4,324.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Display Type: 7 Segment LED, Single White Display
- Display Configuration: 3 Digits
- Type of Inputs: 5V RH (HS-A-100) sensor for Humidity, RTD(PT100) sensor for Temperature
- Resolution: 1/0.1
- Accuracy: RTD: ±0.25% of span or 1° whichever is greater (20min of warm up time), Cold Junction calibration accuracy for RTD input 0.1% of F.S ¬± 1¬∞ C, Humidity: ¬±3% for RH 10% to 80%, ¬±4% for below 10% or above 80%.
- Type of Output: Relay
- Set Point: 2
- Control Mode: For Humidity: ON-OFF, For Temperature:ON-OFF / PID control
- Features: Load protection protocol, Low / High Alarm, Free RH sensor with unit
- Supply Voltage: 90-270V AC/DC
- Size: 36 x 72mm
- Mounting Type: Panel Mount
- Certification: CE, IP65 frontal
