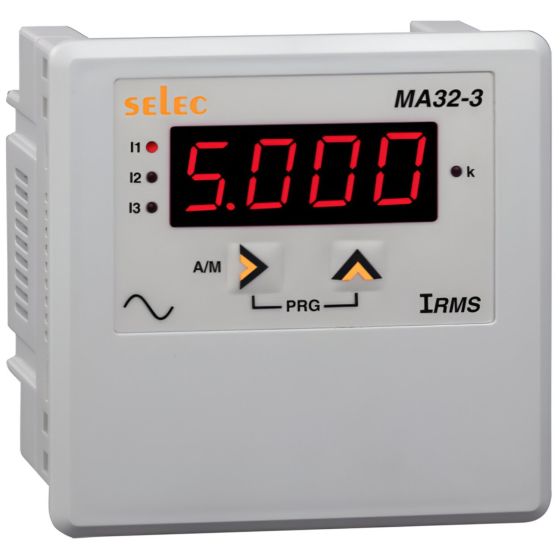

Selec MA32-3-G-40-300V-CE, 4 Digit 7 segment LED display Digital Panel Meter, Three Phase, Size 96x96mm, Panel Mount

Selec MA32-3-G-40-300V-CE, 4 Digit 7 segment LED display Digital Panel Meter, Three Phase, Size 96x96mm, Panel Mount

Selec MA32-3-G-40-300V-CE, 4 Digit 7 segment LED display Digital Panel Meter, Three Phase, Size 96x96mm, Panel Mount

Be the first to review this product

In stock

SKU

MA32-3-G-40-300V-CE

Special Price ₹806.88 Regular Price ₹1,681.00

(18% GST Extra)

Qty

Add to Wish List

3 phase measurement for current
50mA to 5A measurement, 999.0kA measurement using suitable current transformer
Accuracy of ±0.5% of F.S.
4 Digit 7 segment LED display
Panel mount
Supply voltage of 40 to 300V AC/DC

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Display: 7 segment LED Display
Digits: 1 row of 4 digits
Electrical Connection: 3Ø - 4W, 3Ø - 3W
Rated input current: 50mA – 5A AC
Accuracy: ±0.5% of F.S.
Auxiliary Supply: 40 to 300V AC/DC
PT Primary Setting: 1-999kA (Programmable for any value)
CT Secondary Setting: 1 / 5A (Programmable)
Operating Temperature: -10°C to +55°C (14°F to 131°F)
Storage Temperature: -20°C to +75°C (-4°F to 167°F)
Mounting: Panel mount
Bezel size: 96 mm x 96 mm
Weight: 165gms

Product Variants

Product Code	Supply Voltage	Certification
MA32-3-G-40/300V-CE	40-300V AC/DC	CE, RoHS
MA32-1-G-40/300V-CE	40-300V AC/DC	CE, RoHS
