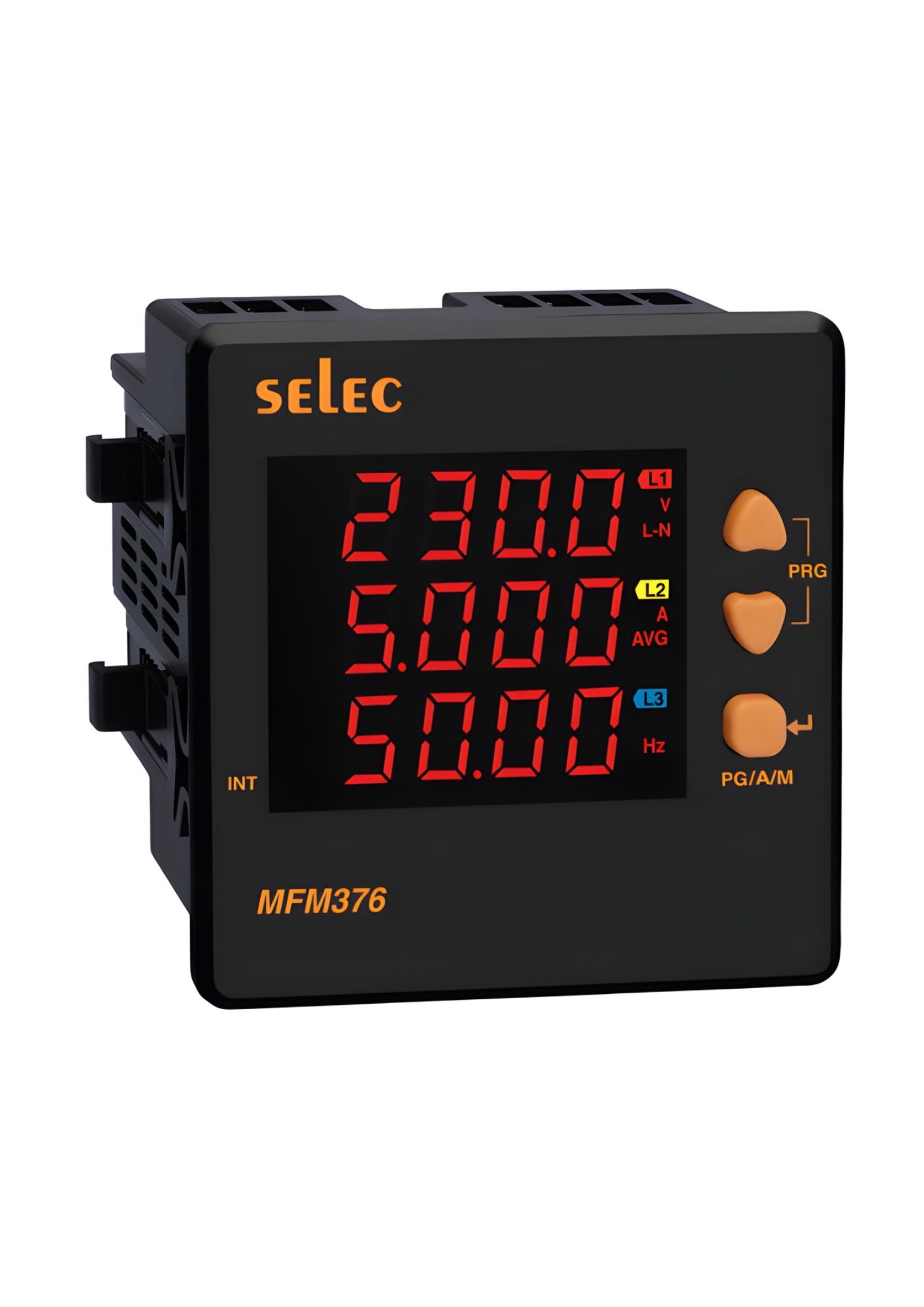

Selec MFM376-230VAC, 7 Segment LED Display, Multifunction Meter

In stock

SKU

MFM376-230VAC

Special Price ₹1,954.08 Regular Price ₹4,071.00

(18% GST Extra)

Qty

Add to Wish List

Compatible for 1 phase 2 wire, 2 phase 3 wire, 3 phase 4 wire systems
11 to 300V AC (L - N), 19 to 519V AC (L - L) measurement
Accuracy of ±0.5% for voltage & current, ±0.1% for Frequency, ±0.01% for PF, 1% for Power, Class 1 for Active, Reactive & Apparent energy
Max / Min Power Demand measurement, Import / Export Energy measurement
%THD up to 31st level, RS485 Communication MODBUS RTU (MFM376-C-CE)
CE RoHS certified

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Product Specifications

Datasheet
Display Type	7 Segment LED Display, 3 rows
Display Configuration	2 rows of 8 digits for energy display, Digits - 4 digits
Electrical Connection	3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W
Type of Output	Pulse Output
Features	Phase Angle Detection, (Max / Min) Demand Power, Run Hour, Auxiliary Interrupts
CT Primary	1 / 5A to 10kA (Programmable for Any Value)
CT Secondary	1 / 5A (Programmable)
PT Primary	100V to 500kV (Programmable for Any Value)
PT Secondary	100V to 500V AC (Programmable for Any Value)
Rated Input Current	Nominal 5A AC (Min – 20mA; Max – 6A)
Supply Voltage	40V to 300V AC / DC (50/60Hz)
Size	96 x 96mm
Mounting Type	Panel Mount
