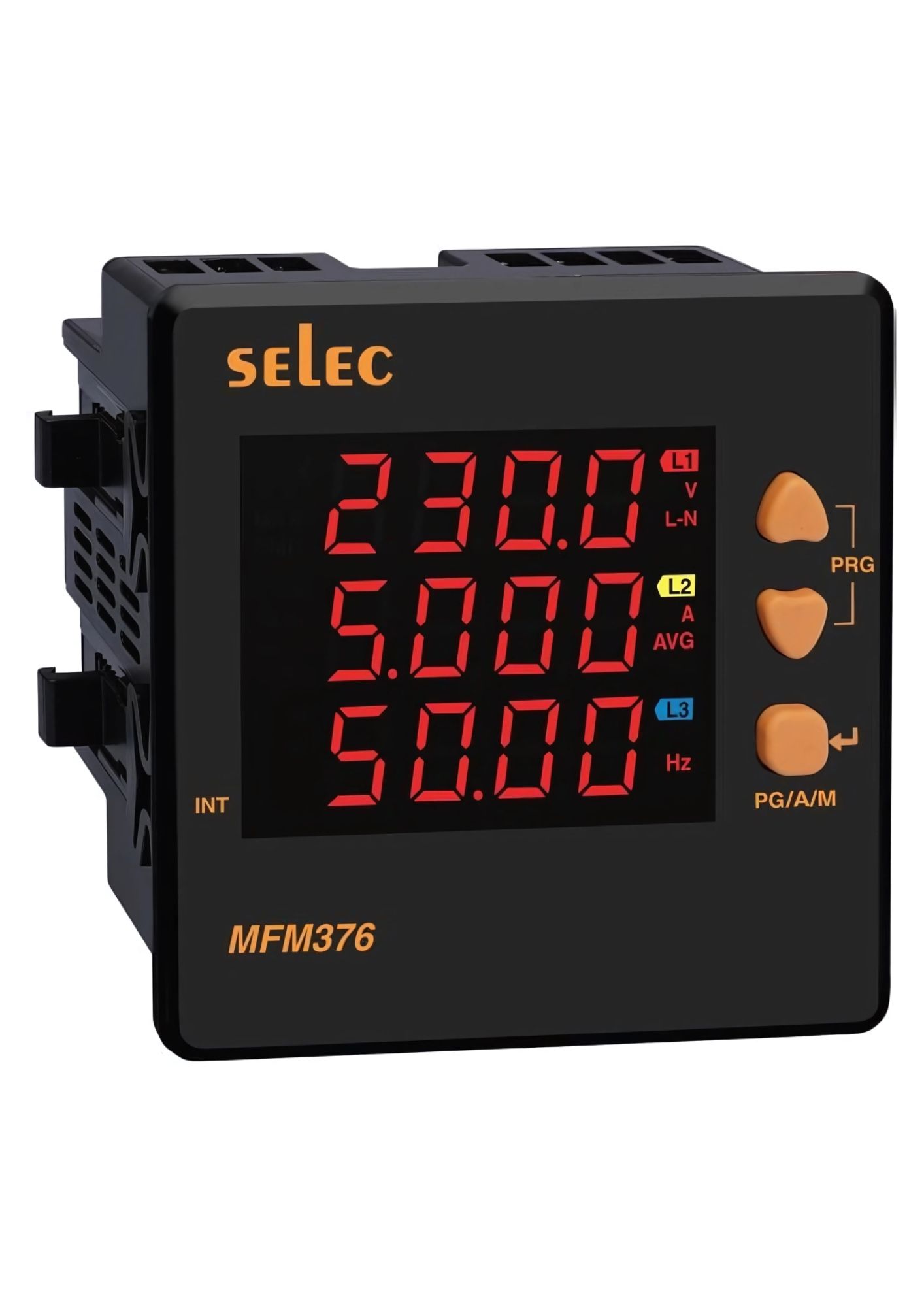

Selec MFM376-CE, 8 Digits LED Display, Three Phase Digital Multifunction Meter, Pulse Output, Size 96x96mm, Panel Mount

In stock

SKU

MFM376-CE

Special Price ₹1,954.08 Regular Price ₹4,071.00

(18% GST Extra)

Qty

Add to Wish List

Compatible for 1 phase 2 wire, 2 phase 3 wire, 3 phase 4 wire systems
11 to 300V AC (L - N), 19 to 519V AC (L - L) measurement
Accuracy of ±0.5% for voltage & current, ±0.1% for Frequency, ±0.01% for PF, 1% for Power, Class 1 for Active, reactive & Apparent energy
Max / Min power Demand measurement, Import / Export Energy measurement
%THD upto 31st level
CE RoHS certified

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Display Type: 7 Segment LED Display
Display Configuration: 2 rows of 8 digits
Electrical Connection: 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W
Type of Output: Pulse Output
Features: Phase Angle Detection, (Max / Min) Demand Power, Run Hour, Auxiliary Interrupts
CT Primary: 1 / 5A to 10kA (Programmable for Any Value)
CT Secondary: 1 / 5A (Programmable)
PT Primary: 100V to 500kV (Programmable for Any Value)
PT Secondary: 100V to 500V AC (Programmable for Any Value)
Rated Input Current: Nominal 5A AC (Min – 20mA; Max – 6A)
Supply Voltage: 40V to 300V AC / DC (50/60Hz)
Size: 96 x 96mm
Mounting Type: Panel Mount

Product Code	Supply Voltage	Output		Certification
Product Code	Supply Voltage	Pulse Output	Communication	Certification
MFM376-CE	40V-300V AC/DC,50/60Hz	Yes	--	CE
MFM376-C-CE	40V-300V AC/DC,50/60Hz	Yes	Yes	CE RoHS
