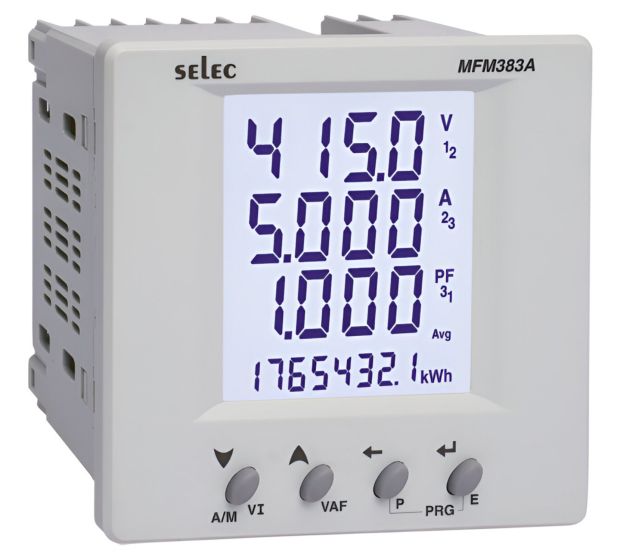

Selec MFM383A-CE, 7 1/2 Digits LCD Display, Three Phase Economical Multifunction Meter, Pulse Output, Size 96x96mm, Panel Mount
Selec MFM383A-CE, 7 1/2 Digits LCD Display, Three Phase Economical Multifunction Meter, Pulse Output, Size 96x96mm, Panel Mount

Selec MFM383A-CE, 7 1/2 Digits LCD Display, Three Phase Economical Multifunction Meter, Pulse Output, Size 96x96mm, Panel Mount

Be the first to review this product
In stock
SKU
MFM383A
Special Price ₹2,507.04 Regular Price ₹5,223.00
(18% GST Extra)
Add to Wish List
  • Compatible for 1 phase 2 wire, 3 phase 3 wire, 3 phase 4 wire systems
  • 11 to 300V (L-N), 19 to 519V (L-L) measurement
  • Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active,reactive & Apparent energy
  • CE RoHS certified
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: LCD with Backlight
  • Display Configuration: 3 Rows of 4 Digits, 1 Row of 7 ½ Digits
  • Electrical Connection: 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W
  • Type of Output: Pulse Output
  • Features: Password Protection, Energy (Active / Reactive / Apparent)
  • CT Primary: 1 / 5A to 10kA (Programmable for Any Value)
  • CT Secondary: 1 / 5A (Programmable)
  • PT Primary: 100V to 10kV (Programmable for Any Value)
  • PT Secondary: 100V to 500V AC (L – L) (Programmable for Any Value)
  • Rated Input Current: Nominal 5A AC (Min - 11mA Max - 6A)
  • Supply Voltage: 85 to 270V AC (45/65 Hz)
  • Size: 96 x 96mm
  • Mounting Type: Panel Mount
  • Certification: CE RoHS
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:Selec MFM383A-CE, 7 1/2 Digits LCD Display, Three Phase Economical Multifunction Meter, Pulse Output, Size 96x96mm, Panel Mount
Your Rating
Downloads
document MFM383A-Datasheet (1.29 MB)
document MFM383A-Instruction Manual (6.35 MB)
