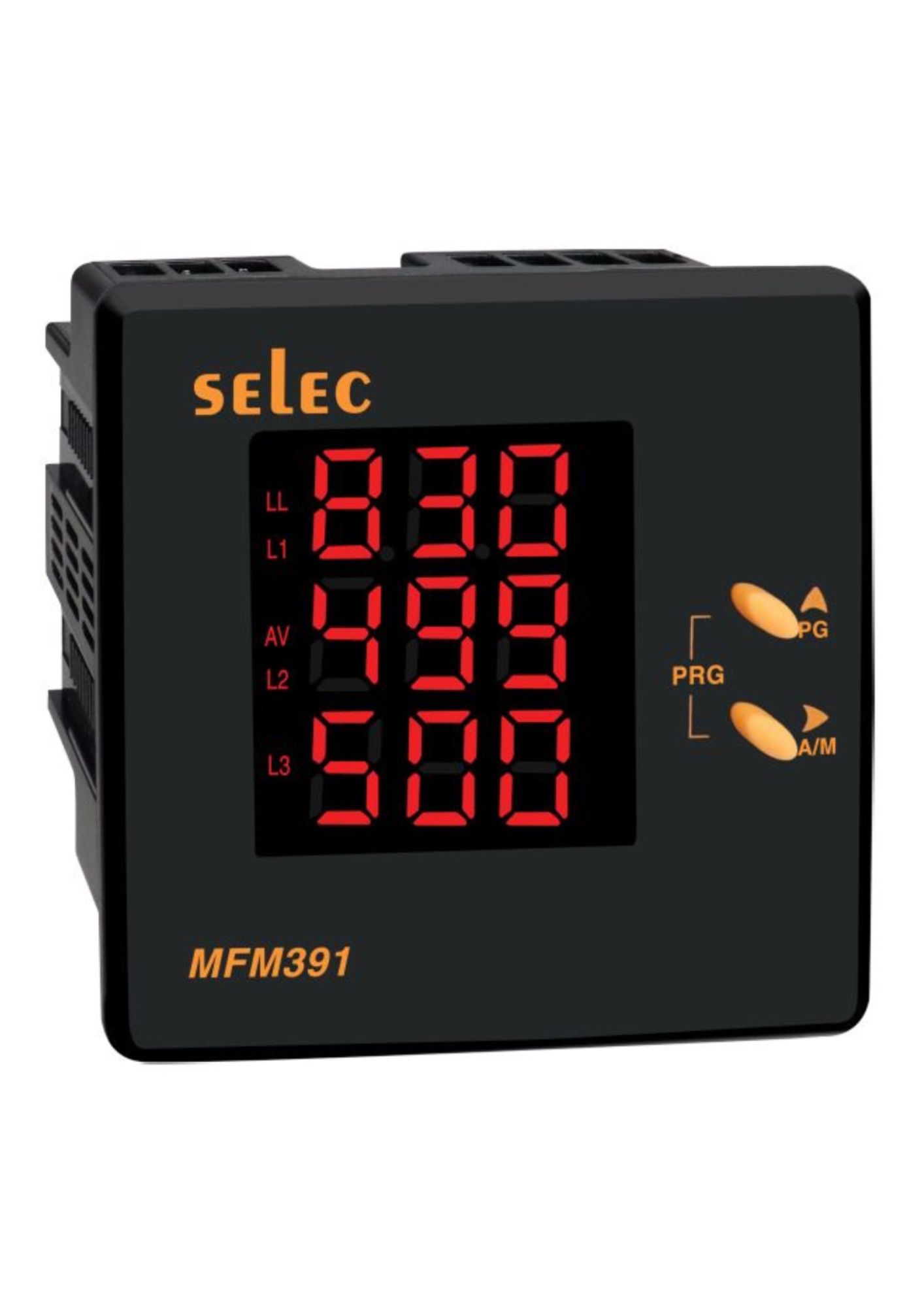

Selec MFM391, 3 Digits LED Display, Three Phase Economical Digital Multifunction Meter, Size 96x96mm, Panel Mount
Out of stock
SKU
MFM391
Special Price
₹1,086.36
Regular Price
₹2,263.24
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Display Type: 7 Segment LED
- Display Configuration: 3 Rows of 3 Digits
- Electrical Connection: 3Ø -3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W
- Features: VAF meter with Power-Factor and Power, Run Hour and RPM measurement
- Communication Protocol: NA
- CT Primary: 1 / 5A to 10kA (Programmable for Any Value)
- CT Secondary: 1 / 5 A (Programmable)
- PT Primary: 100V to 500kV (Programmable for Any Value)
- PT Secondary: 100V to 500V (Programmable for Any Value)
- Rated Input Current: Nominal 5A AC (Min - 20mA Max - 6A)
- Size: 96 x 96mm
- Supply Voltage: 85 to 270V AC (45/65Hz)
- Mounting Type: Panel Mount
| Product Code | Supply Voltage | Output | |
|---|---|---|---|
| Pulse Output | Communication (RS485) | ||
| MFM391 | 85V - 270V AC,50/60Hz | No | No |
