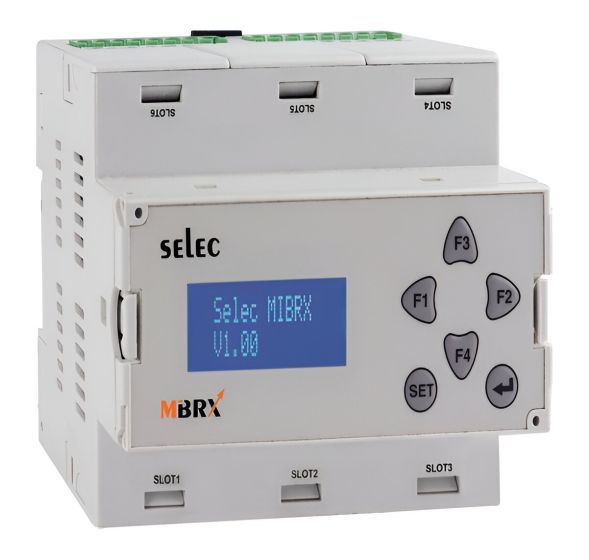

Selec MIBRX-6M-1-1-1-230V, Modular type PLC - MIBRX, Base module - 6 slots, 11 Digital Input + 4 Relay Output, NTC, RTC, Master, DIN Rail Mount
Out of stock
SKU
MiBRX-6M-1-1-1-230V
Special Price
₹5,493.60
Regular Price
₹11,445.00
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Display Type: LED Display/LCD Display
- Supply Voltage: 230VAC/24VDC
- Size: 70(W) x 90(H) x 66.4(D)mm
- Digital Inputs: 10+1* / 12
- Analog Inputs: 1 V(0-10V) + As per IO Card Selection
- Digital Outputs: 4 relay + As per IO card selection
- Analog Outputs: As per IO Card Selection
- No. of Slots: 6
- RTC With Time Switch Function: Yes
- Code Memory: 240Kb
- Communication Interface: RS485 Modbus RTU Protocol (Master - Slave ), Ethernet (Slave), USB , CAN
- Expansion: via modbus RTU RS485
- Mounting Type: Din Rail
- FI / Maximum Counting Frequency: 1( 5kHz) / 2( 5kHz)
