Selec MIBRX-6M-2-1-1-0-1-24VDC, Modular type PLC - MIBRX, Base module - 6 slots, 12 Digital Input, 24V Power supply with Isolation, Master, ETHERNET & RTC- 24VDC
Selec MIBRX-6M-2-1-1-0-1-24VDC, Modular type PLC - MIBRX, Base module - 6 slots, 12 Digital Input, 24V Power supply with Isolation, Master, ETHERNET & RTC- 24VDC

Selec MIBRX-6M-2-1-1-0-1-24VDC, Modular type PLC - MIBRX, Base module - 6 slots, 12 Digital Input, 24V Power supply with Isolation, Master, ETHERNET & RTC- 24VDC

Out of stock
SKU
MIBRX-6M-2-1-1-0-1-24VDC
Special Price ₹7,972.32 Regular Price ₹16,609.00
(18% GST Extra)

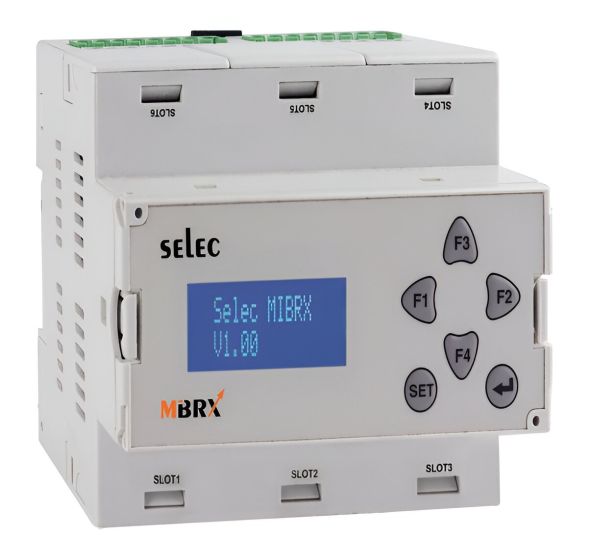

  • 6M Sized, Rail mount modular PLC with multiple pluggable LED/LCD Display options
  • Offers Flexible IO Card selection
  • Expandable via MOBBUS RTU
  • RTC with time switch functions (Optional)

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: LED Display/LCD Display
  • Supply Voltage: 24VDC
  • Size: 70(W) x 90(H) x 66.4(D)mm
  • Digital Inputs: 10+1* / 12
  • Analog Inputs: 1 V(0-10V) + As per IO Card Selection
  • Digital Outputs: 4 relay + As per IO card selection
  • Analog Outputs: As per IO Card Selection
  • No. of Slots: 6
  • RTC With Time Switch Function: Yes
  • Code Memory: 240Kb
  • Communication Interface: RS485 Modbus RTU Protocol (Master - Slave ), Ethernet (Slave), USB , CAN
  • Expansion: via modbus RTU RS485
  • Mounting Type: Din Rail
  • FI / Maximum Counting Frequency: 1( 5kHz) / 2( 5kHz)
