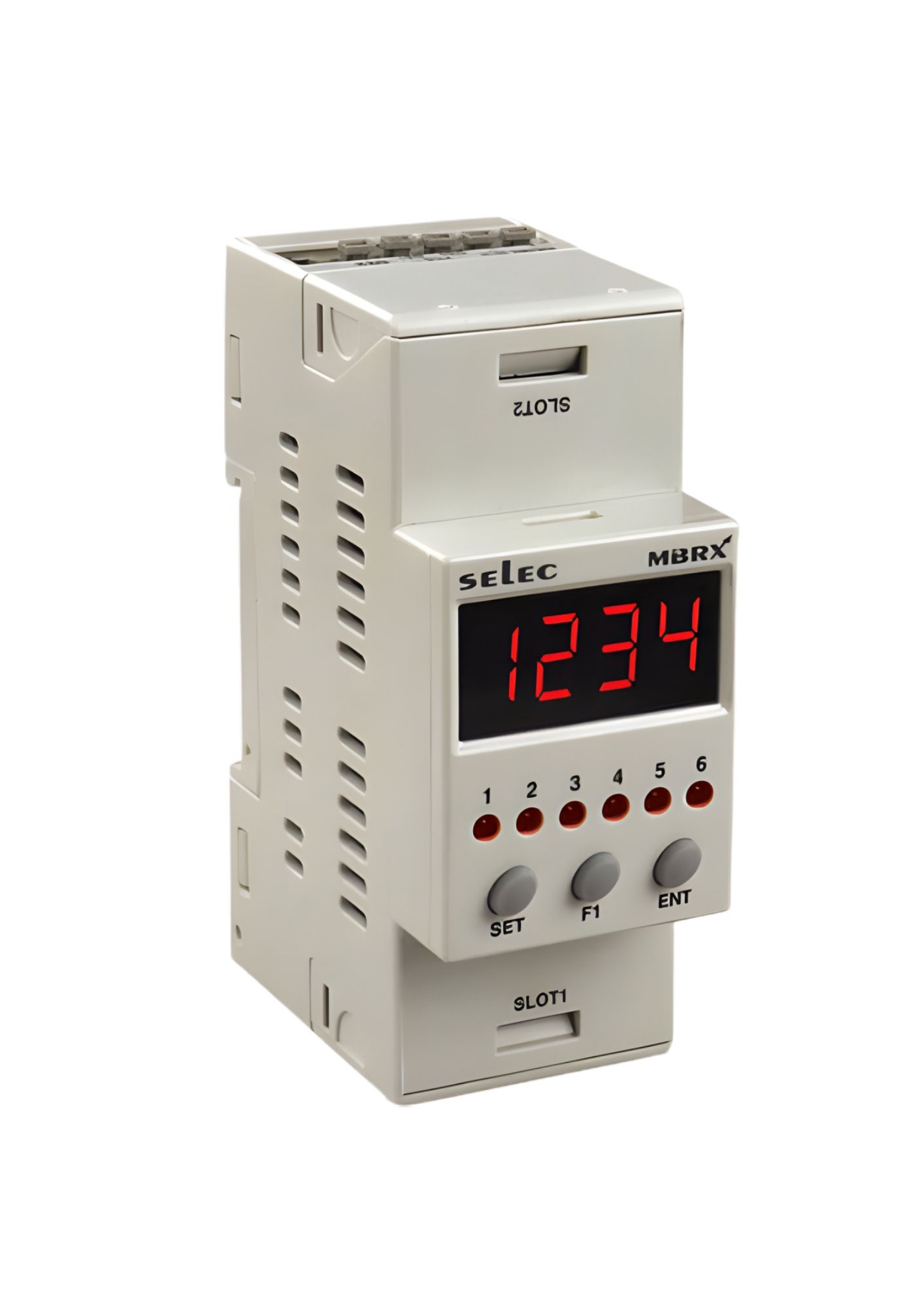

Selec MiBRX-DSP-2M-0-1-06-A, MiBRX Display 2M - Blind, 6 LED, Rail Mount
In stock
SKU
MiBRX-DSP-2M-0-1-06-A
Special Price
₹259.20
Regular Price
₹540.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Type | 7 Segment LED |
| Digits | 4 Red |
| LED Banks | 1 Red, 6 Red LED |
| No. of Keys | 3 Keys (2 User configurable), 1 Key |
| No. of Slots | 2 |
| Digital Input - No. of Inputs, Type, Voltage Range, Response Time, Debounce Time | No. of inputs: 3, Input type: PNP, Input voltage range: 5-30V, Response time: Depends on debounce time & ladder execution time, Debounce time: 10ms |
| Fast Input - No. of Inputs, Type, Input Frequency | No. of inputs: 1, Input type: PNP, Input frequency: 5 kHz |
| Communication - Port, Protocol, Connector, Transmission, Speed, Data bits, Parity, Stop bits | Port: 1 Port - RS485 slave, Protocol: MODBUS RTU, Connector: 2 Wire, Transmission: Half duplex, Speed: 9600,19200,38400,57600,115200 bps, Data bits: 7 or 8, Parity: None, odd, even, space, mark, Stop bits: 1 or 2 |
| Functional Features | Windows based software for ladder programming & HMI config |
| Timer Operational Modes | On delay, off delay, pulse, special (up / down) timer |
| Timer Resolution | 1ms (Only accurate 1ms timer block) |
| Counter - Types | Up counter, down counter, up-down counter, special (up-down counter) |
| Other Blocks | Analog input / output, time switch, RTC etc |
| Memory - Data, Code, EPROM, Objects, Min/Typical Scan Time | Data memory: 16Kb, Code memory: 112Kb, EPROM: 8Kb, No. of objects: 5000, Min. scan time: 200µsec, Typical scan time: 1ms (Based on ladder programming) |
| Operating Temperature | 5 to 55˚C |
| Storage Temperature | -25 to 70˚C |
| Humidity (Non condensing) | 10 to 95% |
| Mounting Type | Rail mount |
| Supply Voltage | 24V AC / 24V DC (18-30VDC) |
| Power Consumption | 4 Watts |
| Sensor Source | 24V, 50mA |
