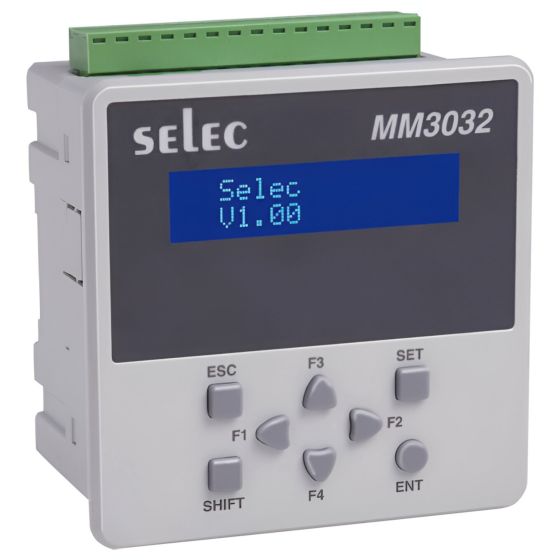

Selec MM3032-2-0-0-230V-V2, LCD Text Display With 8 keys Smart relay PLC, 8 Digital Input, 6 relay Output, Analog Output Opyional, 96x96mm, Panel/Rail Mount
In stock
SKU
MM3032-2-0-0-230V-V2
Special Price
₹6,644.16
Regular Price
₹13,842.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Display Types: 2 x 16 Characters LCD (With Backlight) + 8 Keys (6 User Configurable)
- Size: 96 x 96mm
- Digital Inputs: 8 (PNP Type) Including 1 Fast Inputs Channels
- Analog Input: 2 Channels ( 0-20mA)
- Digital Outputs: 6 Relay Outputs
- Output Rating: 5A @230VAC / 24VDC
- Analog Outputs: 1 Channel (0-10V)
- RTC With Time Switch Function: NO
- Code Memory: 240KB
- Communication Interface: RS485 Based MODBUS RTU Protocol
- Expansion: NO
- Supply Voltage: 100-270V AC without retention 180-270V AC with retention
- Mounting Type: Panel/DIN Rail
- FI / Maximum Counting Frequency: FC0 (I0 & I1) - 5KHz, Normal digital input: 30Hz
