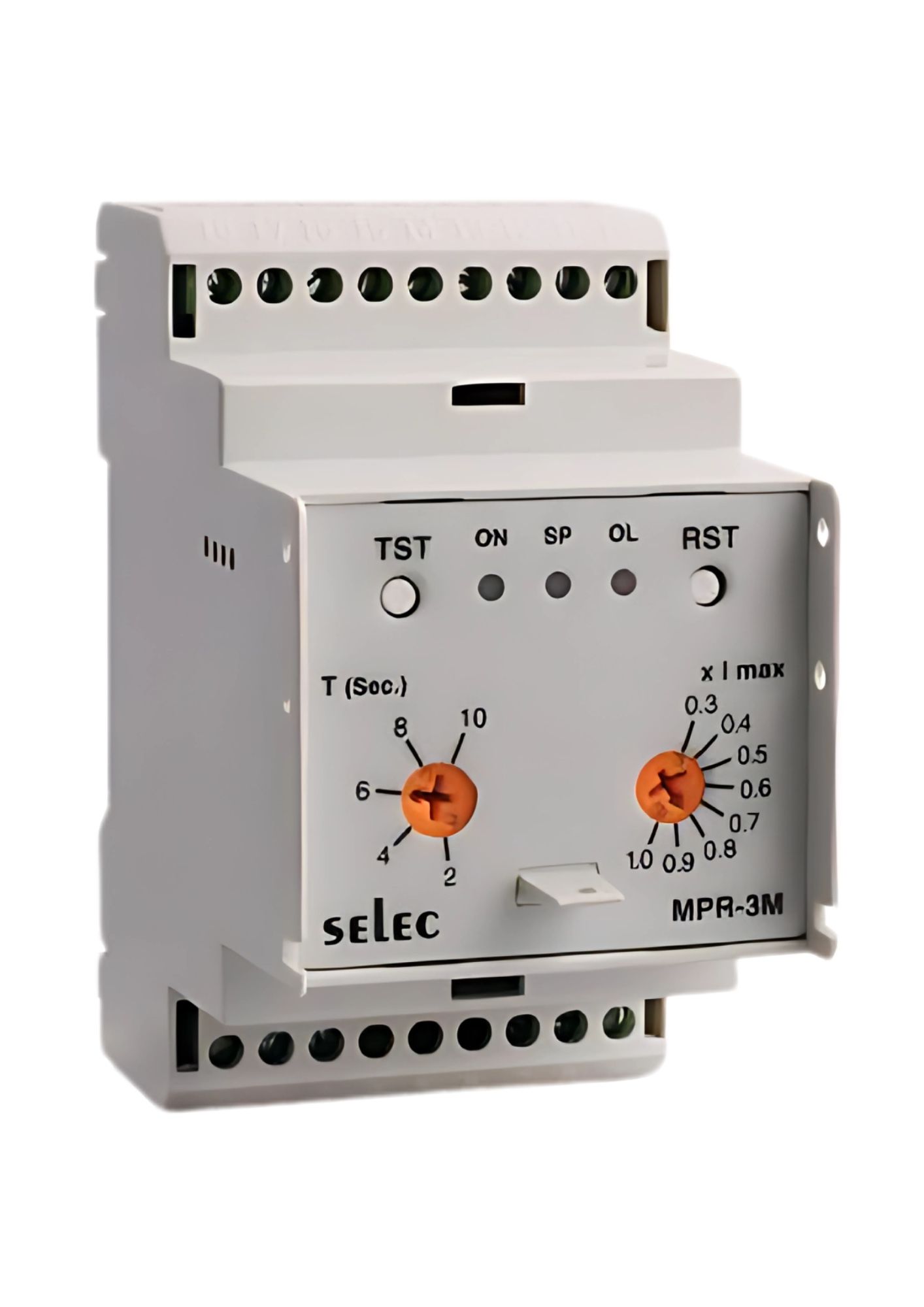

Selec MPR-3M-2-230V, Three Phase Analog Motor protection relay, Size 52.5mm, DIN Rail Mount, 230VAC
Selec MPR-3M-2-230V, Three Phase Analog Motor protection relay, Size 52.5mm, DIN Rail Mount, 230VAC

Selec MPR-3M-2-230V, Three Phase Analog Motor protection relay, Size 52.5mm, DIN Rail Mount, 230VAC

In stock
SKU
MPR-3M-2-230V
Special Price ₹1,527.58 Regular Price ₹3,182.46
(18% GST Extra)
Add to Wish List
  • Monitors
  • Suitable for 1√ò or 3√ò motors.
  • Accuracy
  • 2 C/O (DPDT) output relay.
  • Auto / Remote test available.
  • Aux supply
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Measuring Parameter: Overload Current, Phase Asymmetry, Phase Failure & Phase Sequence, Under Current
  • Electrical Connection: 3√ò-3W
  • Display: 3 LED Indication
  • Trip Setting: Phase Unbalance
  • T(sec) Setting: 2 , 4, 6 , 8 ,10 Sec Trip Time Curve in Overload Trip Curve Graph,
  • Under Current: 50% of Motor Current,
  • X Imax: To Select Motor Current Rating
  • Time Ranges: Single Phase Trip
  • Phase Unbalace: 5sec,
  • Phase Sequence: 5sec,
  • Overload Trip: As Per (IDMT Curve) ,
  • Under Current Trip: 5 Sec
  • CT Setting: 10A, 40A, 80A
  • Accuracy: Trip
  • Time: ¬±5% of Setting ¬±100ms
  • Output Contact: 2 C/O (DPDT )
  • Output Rating: NC
  • Supply Voltage: 230V AC ¬±15% ,415V AC (¬±15%)
  • Size: 52.5mm
  • Mounting Type: DIN Rail Mount

No specifications available for this product.
