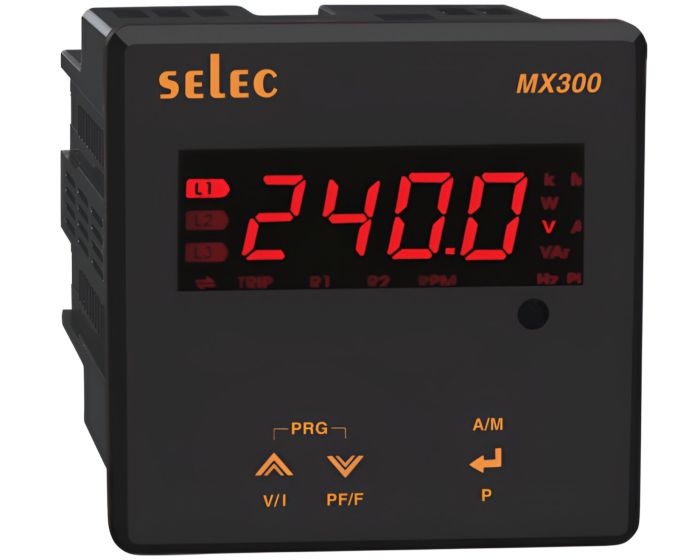

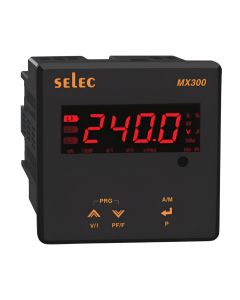

Selec MX300-CE, 4 Digits LED Display Multifunction Digital Panel Meter, Single Phase, Size 96x96mm, Panel Mount
Selec MX300-CE, 4 Digits LED Display Multifunction Digital Panel Meter, Single Phase, Size 96x96mm, Panel Mount

Selec MX300-CE, 4 Digits LED Display Multifunction Digital Panel Meter, Single Phase, Size 96x96mm, Panel Mount

Be the first to review this product
In stock
SKU
MX300-CE
Special Price ₹712.32 Regular Price ₹1,484.00
(18% GST Extra)
Add to Wish List
  • 1 phase measurement for voltage, current, power, power factor and frequency
  • 20 to 519 V measurement.
  • Accuracy of ± 0.5% of F.S.
  • 3 Digit 7 segment LED display
  • Built in relay for alarm
  • Panel mount
  • Supply voltage of 85 to 300 V AC
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display: Bright LED display with parameters integrated within display
  • Digits: 4 digit 7 segment
  • Electrical Connection: 1Ø - 2W
  • Rated Input Voltage: 20 - 300V AC (L - N), 34 - 519V AC (L - L)
  • Rated Input Current: Nominal 5A AC (Min- 40mA, Max- 6A)
  • Resolution: Voltage, Current & Power : Auto , Power factor : 0.001
  • Accuracy: Voltage & Current : ±0.5% of Full scale, Frequency ± 1%, Active power ± 1%, Reactive power ± 2%
  • CT Primary: 5A - 9999A (Programmable for any value)
  • CT Secondary: 5A fixed
  • PT Primary: 100V to 500kV (Programmable for any value)
  • PT Secondary: 100V to 500V AC (Programmable for any value)
  • Measuring Parameters: Voltage, Current, Power factor, Frequency, Power (Active, Reactive Apparent) (kW, W)
  • Supply Voltage: 85 to 300V AC / DC
Product Variants
Product Code Supply Voltage Certification
MX300-1-C-CE 85 to 300V AC CE
MX300-CE 85 to 300V AC CE
Reviews
Write Your Own Review
You're reviewing:Selec MX300-CE, 4 Digits LED Display Multifunction Digital Panel Meter, Single Phase, Size 96x96mm, Panel Mount
Your Rating
Downloads
document MX300-CE-Datasheet (1.43 MB)
document MX300-CE-Instruction Manual (1.85 MB)
