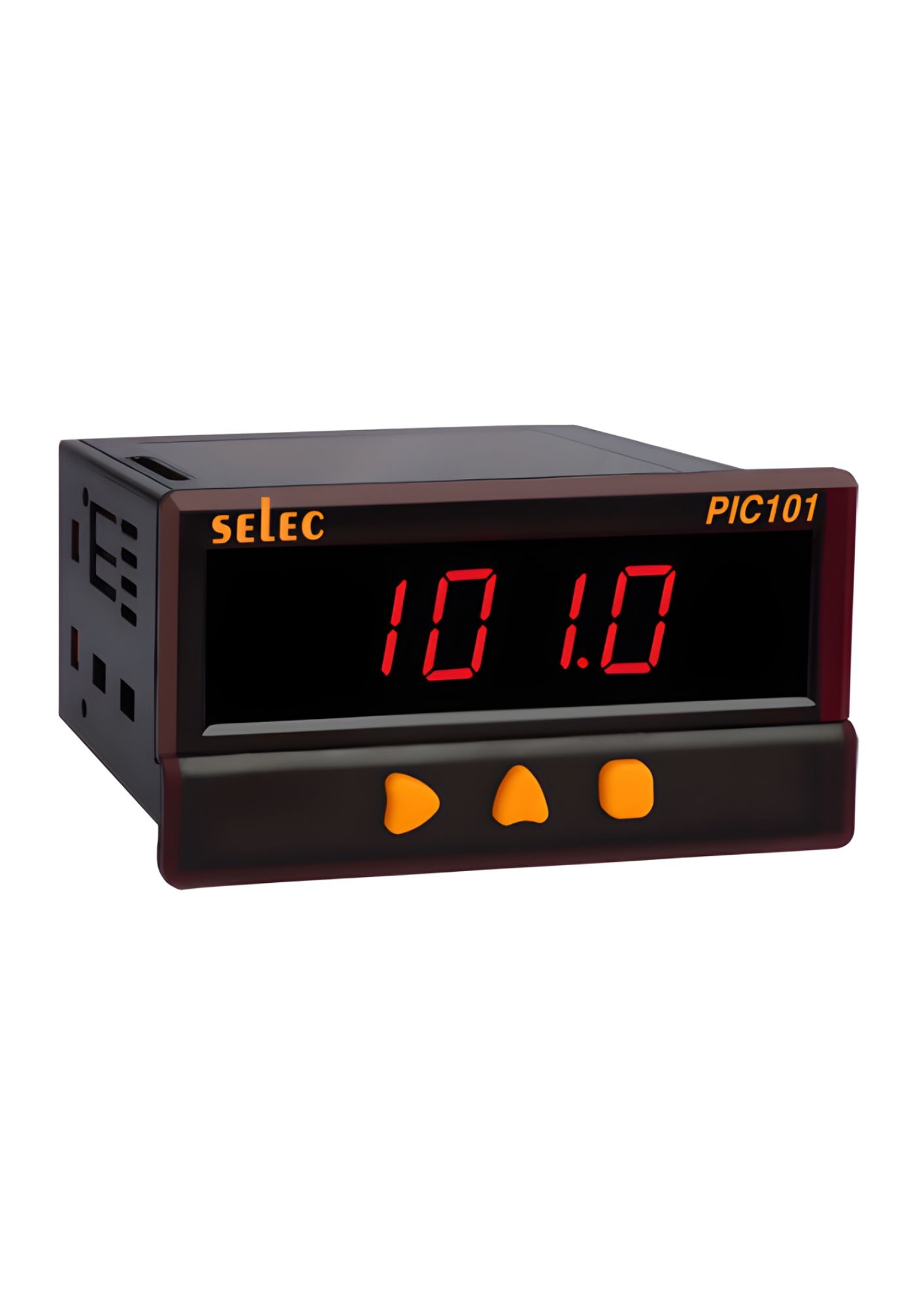

Selec PIC101-N, 4 Digits 7 Segment LED Single Display, Universal Input, 48x96mm, Panel Mount
In stock
SKU
PIC101-N
Special Price
₹1,357.44
Regular Price
₹2,828.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Display | Height of display 4 Digits 7 Segment LED single display, 12.7 mm |
| Inputs | Thermocouple (J, K, T, R, S), RTD (PT100), DC Analog inputs (0 to 56mV, 0 to 10V, 0/4 to 20mA) |
| Resolution | 1/0.1° for TC/RTD only (fixed 1° resolution for R & S type TC), Decimal point position selectable: 1/0.1/0.01/0.001 for analog input |
| Indication accuracy | Temperature: 0.25% of span ±1°C (After 20 min. Warmup) |
| Temperature unit | °C/°F selectable |
| Sensor supply | 24 VDC, 30 mA |
| Supply voltage | 90 to 270 VAC/DC (50/60Hz), Optional: 24 VDC, ±10% |
| Power consumption | 5 VA max @ 230 VAC |
| Temperature | Operating: 0°C to 50°C (32 to 122°F); Storage: -20°C to 75°C (-4 to 167°F) |
| Humidity (non-condensing) | 95% RH |
| Mounting | Panel |
