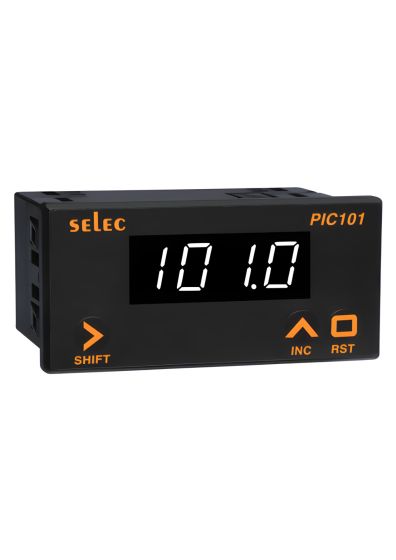

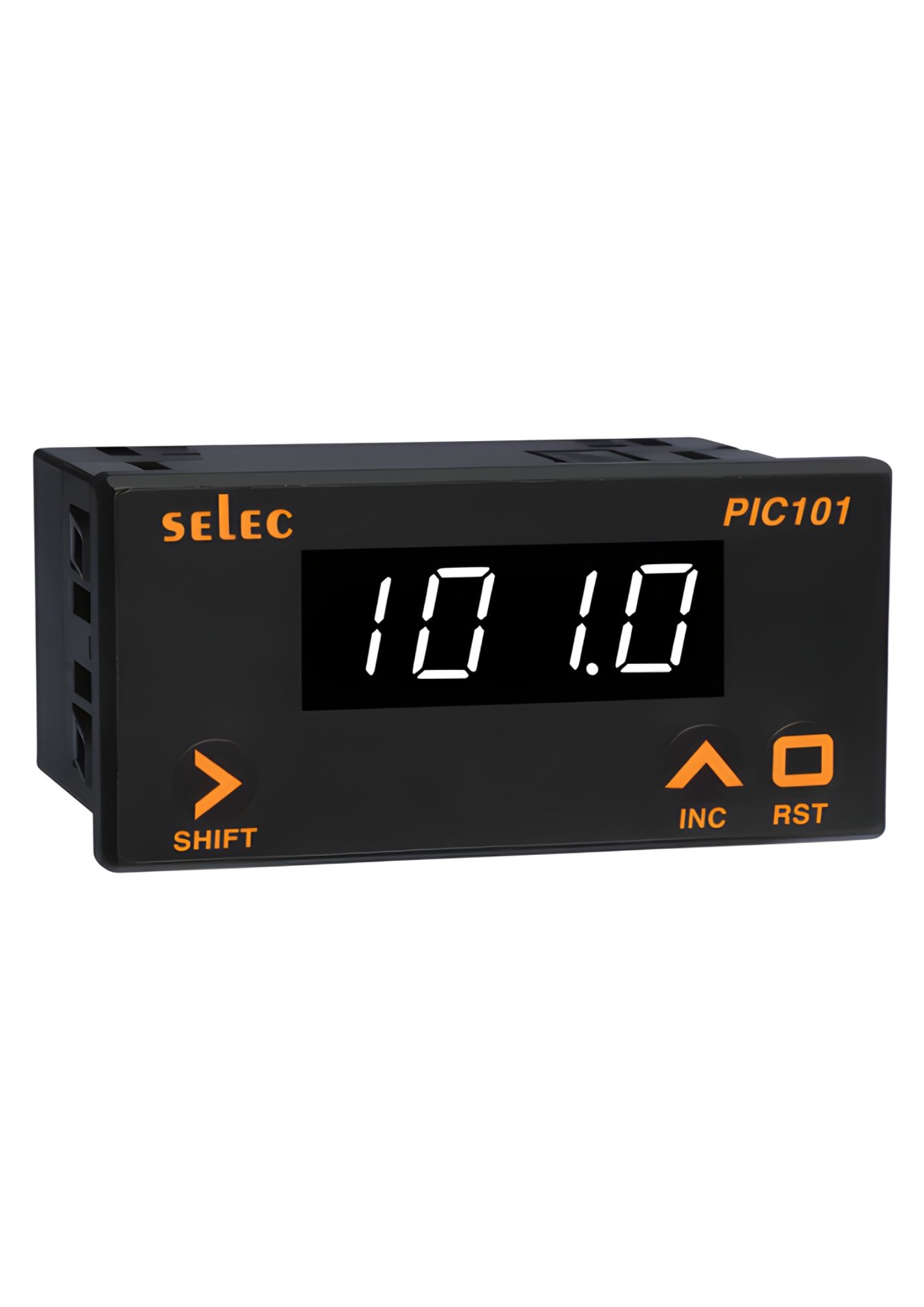

Selec PIC101B-VI-24, 4 digits, 7 Segment LED, Single White Display, 48x96mm, Panel Mount
In stock
SKU
PIC101B-VI-24
Special Price
₹1,010.40
Regular Price
₹2,105.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Display | Height of display |
| Digits | 4 Digits 7 Segment LED single display |
| Size | 0.56" |
| Inputs | Voltage: 0 - 10V DC ; Current: 0 - 20mA & 4 - 20mA DC |
| Resolution | Decimal point position selectable: 1/ 0.1/ 0.01/ 0.001 |
| Input filter (FTC) | 0.2 to 9.9 sec |
| Indication accuracy | ±0.5% of F.S. ± 1 digit (F.S. = Full Scale) |
| Supply voltage | 24VDC |
| Power consumption | 5 VA max @270 VAC |
| Temperature | Operating: 0°C to 50°C (32 to 122°F); Storage: -20°C to 75°C (-4 to 167°F) |
| Humidity (non-condensing) | 95% RH |
| Mounting | Panel |
No specifications available for this product.
