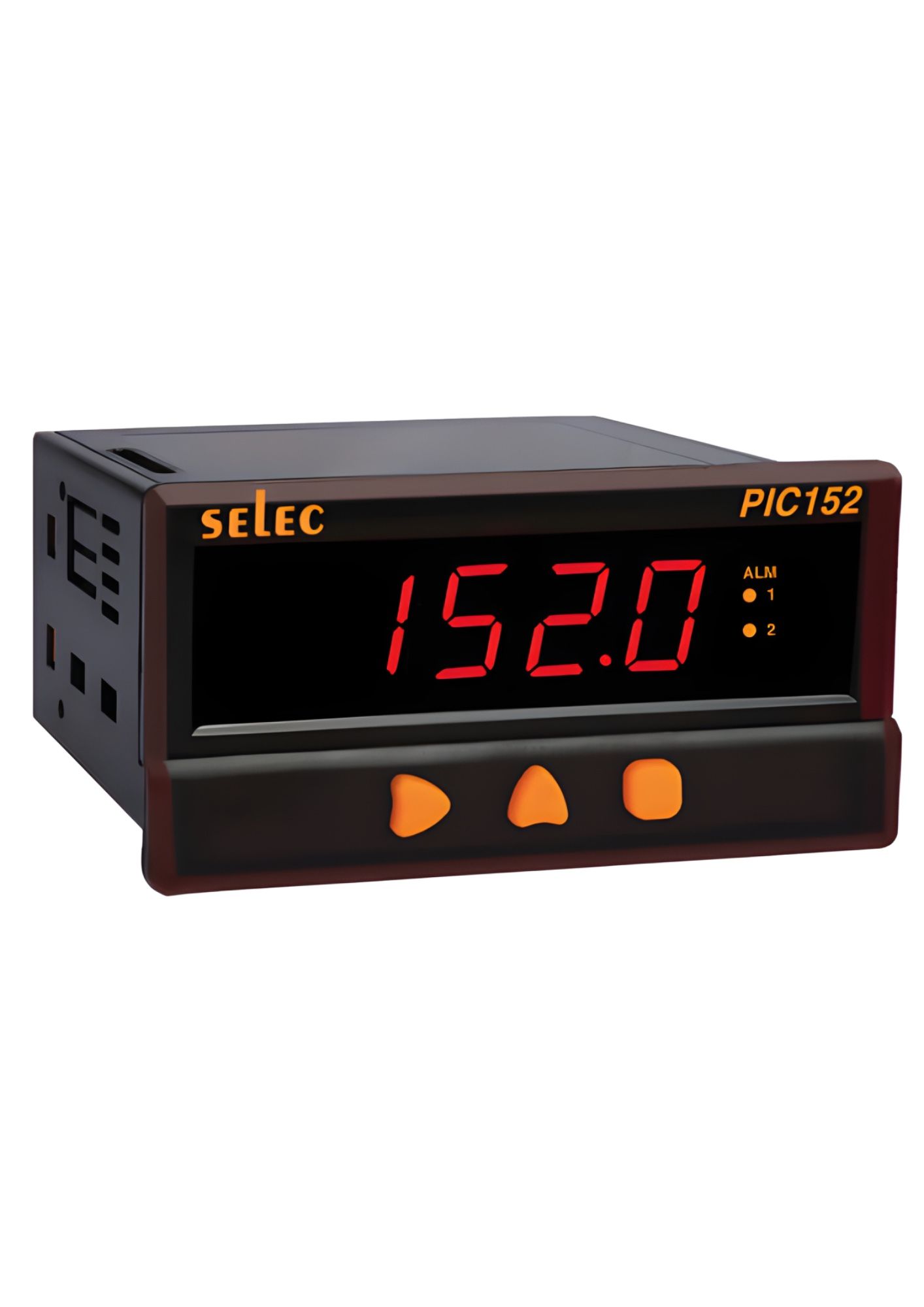

Selec PIC152A-VI-C, 4 Digits 7 Segment LED Single Display, 2 Alarm Output, Universal Input, 48x96mm, Panel Mount
In stock
SKU
PIC152A-VI-C
Special Price
₹3,972.96
Regular Price
₹8,277.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Height of display | 4 Digits 7 Segment LED single display, 12.7 mm |
| LED indication | Alarm ON (2 Nos) |
| Inputs | Thermocouple (J, K, T, R, S), RTD (PT100), DC Analog inputs (-5 to 56mV, 0 to 10V, 0/4 to 20mA) |
| Resolution | 1/0.1° for TC/RTD only (fixed 1° for R & S type TC); Decimal point selectable 1/0.1/0.01/0.001 for analog input |
| Indication accuracy |
TC: 0.25% F.S. ±1° R & S: 0.5% F.S. ±2° (20 min warm-up for TC) RTD: 0.1% F.S. ±1° Analog: ±0.5% F.S., ±1 digit |
| Temperature unit | °C/°F selectable |
| Relay contact | SPDT, RELAY 1,2: NO 10A 250 VAC/28 VDC; NO/NC: 5A/5A 250 VAC/28 VDC |
| Retransmission | 0/4 to 20 mA DC, 0 to 5 VDC, 0 to 10 VDC |
| Sensor supply | 24 VDC, 30 mA |
| Alarms | Number: 2; Modes: High, Low, Band, Fail output, Fault diagnosis; Hysteresis: 0.1 to 99.9°; Annunciator: Programmable; Relay action: Automatic or Latched |
| Supply voltage | 90 to 270 VAC/DC (50/60Hz), Optional 24 VDC |
| Power consumption | 6 VA max @ 230 VAC |
| Temperature | Operating: 0°C to 50°C (32 to 122°F); Storage: -20°C to 75°C (-4 to 167°F) |
| Humidity | 85% RH (non-condensing) |
| Mounting | Panel |
