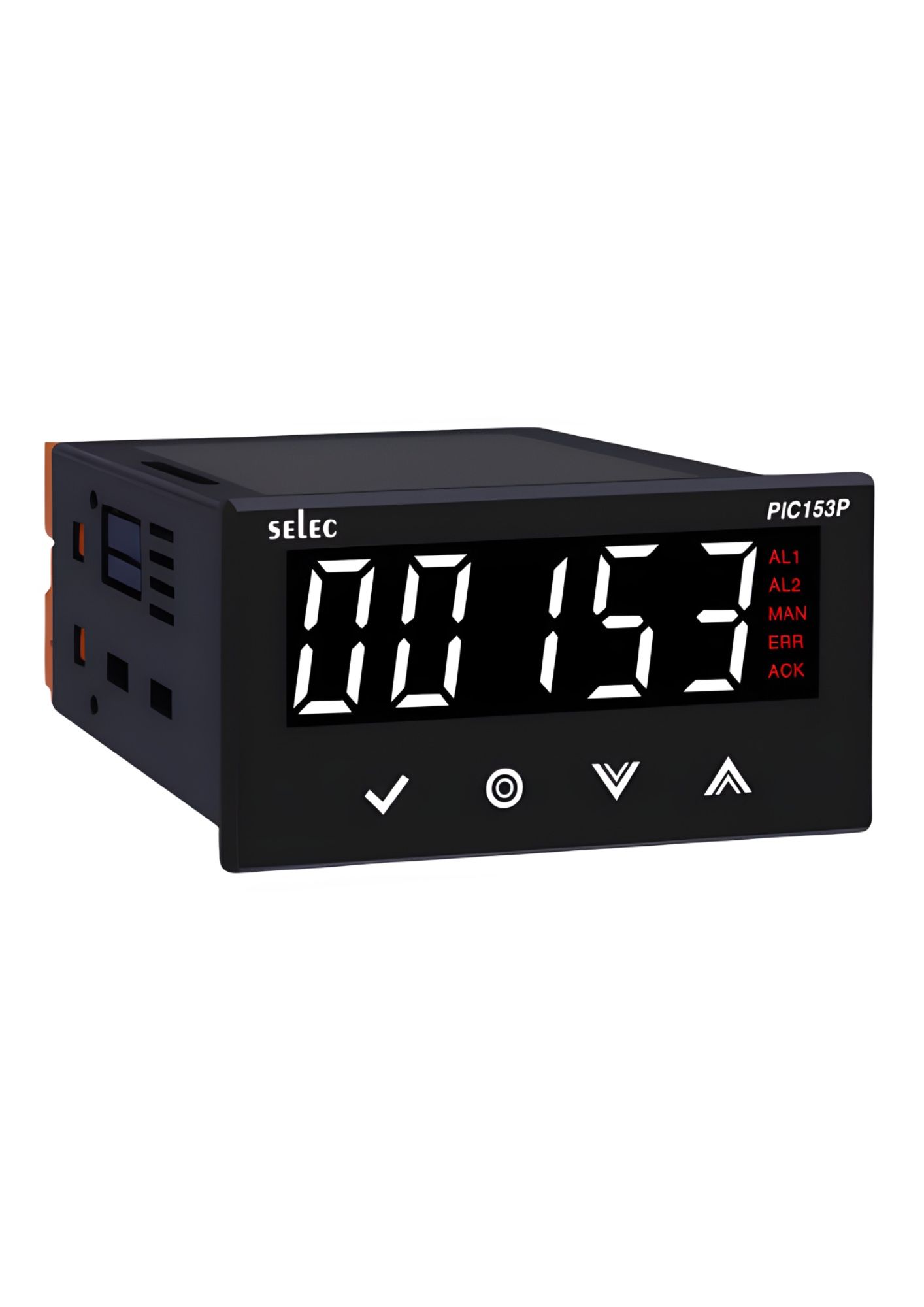

Selec PIC153-P-C-1, 5 Digits, 7 Segment LED Single Display, Universal Input, 48x96mm, Panel Mount
In stock
SKU
PIC153-P-C-1
Special Price
₹4,800.00
Regular Price
₹10,000.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Display | 5 Digits 7 Segment LED single display |
| LED indication |
AL1 & AL2 : Alarm output MAN : Indication for manual output & standby mode ACK : Latch alarm acknowledgment request ERR : Indication for error |
| Inputs |
Thermocouple : J, K, T, R, S, C, E, B, N, L, U, W, Platinel II RTD : PT100, PT1000 Signal Inputs : -90 to 90mV, -10 to 10V DC, -20 to 20mA DC (Programmable scale type) |
| Resolution |
For TC / RTD : 1 / 0.1° For Analog Input : 1 / 0.1 / 0.01 / 0.001 / 0.0001 (only for high resolution output) |
| Indication accuracy |
TC Input : 0.1% of span at 25°C R & S Input : 0.25% of span at 25°C RTD Input : 0.1% at 25°C Voltage : 0.1% at 25°C Current : 0.1% at 25°C |
| Sampling time | 40 msec |
| Digital filtering | Off, 1 to 99 sec |
| Relay Output (RLY1, RLY2) |
Relay contact (SPDT) NO: 10A 250 VAC / 28 VDC NO / NC: 5A / 5A 250 VAC / 28 VDC |
| Retransmission resolution | 1mV for AOV & 1µA for AOI |
| Retransmission | 0 / 4 to 20 mA DC, 0 to 5V DC, 0 to 10V DC |
| Sensor supply | 24V DC, 100mA |
| Alarm | 2 |
| Alarm modes | High Alarm, Low Alarm, Band Alarm, Serr |
| Hysteresis | Programmable |
| Annunciator | Programmable |
| Reset action | Automatic or Latched |
| Supply voltage | 85 to 270V AC / DC |
| Power consumption | 8VA max |
| Temperature | Operating : 0°C to 55°C, Storage : -20°C to 75°C |
| Storage humidity | 85% max. RH (non-condensing) from 0 to 50°C |
| Mounting | Panel |
