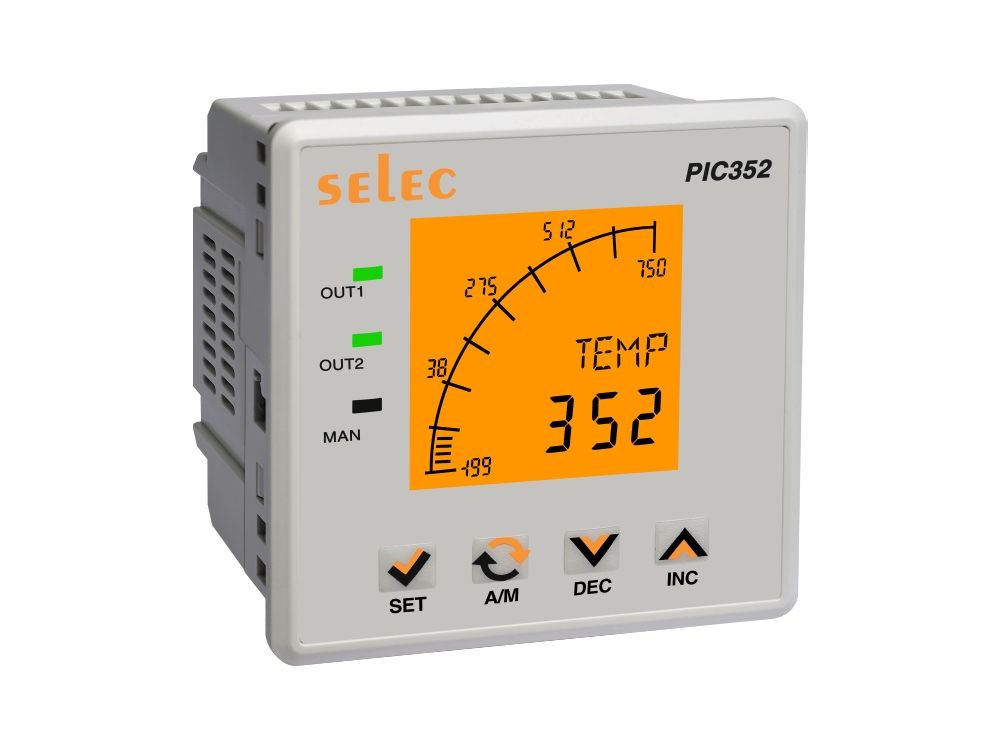

Selec PIC352-11-U-0-1, 4+4 Digit Dual LCD Display Universal Input Indicator with Graphical Representation, 2 Alarm Relay Output, Size 96x96mm, Panel Mount
Selec PIC352-11-U-0-1, 4+4 Digit Dual LCD Display Universal Input Indicator with Graphical Representation, 2 Alarm Relay Output, Size 96x96mm, Panel Mount

Selec PIC352-11-U-0-1, 4+4 Digit Dual LCD Display Universal Input Indicator with Graphical Representation, 2 Alarm Relay Output, Size 96x96mm, Panel Mount

In stock
SKU
PIC352-11-U-0-1
Special Price ₹4,800.00 Regular Price ₹10,000.00
(18% GST Extra)
Add to Wish List
  • 4 digit Dual LCD Display with Graphical Representation
  • 24 bit low drift ADC Universal Input
  • Led Indication: Out 1, Out 2, MAN (Manual) indication
  • 2 x Alarm Relay Output
  • Retransmission Analog Output
  • Red, Orange, Green & White Backlight Indication
  • 4 Digital Inputs, IDM Applicable
  • RS485 MODBUS Communication
  • CE & RoHS certified
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: 4 Digits Dual LCD display with Graphical Representation
  • Type of Input: Thermocouple: (J, K, T, R, S, C,E, B, N, L, U, W, Platinel II.) RTD: (PT100, PT1000) Signal Inputs:(DC) (-5 to 90mV, 0 to 5/10V, 0/4 to 20mA) (Programmable Scale Time)
  • Digital Input: 4 DI’s
  • Resolution: 24 bit resolution at Analog Input / 1/0.1 for TC/RTD / 1/0.1/0.01/0.001 for Analog Input
  • Accuracy: For TC Input: ( 0.1% of full scale at 25°C ) For R & S input: ( 0.25% of full scale at 25°C ) For RTD: ( 0.1% of full scale at 25°C ) For Current: ( 0.1% of full scale at 25°C ) For Voltage: ( 0.1% of full scale at 25°C )
  • Alarm Modes: Alarm High, Alarm Low, Band, Serr
  • Sensor Supply: 24V DC, 30mA
  • Supply Voltage: 85 to 270V AC / DC
  • Size: 96 x 96mm
  • Mounting Type: Panel Mount
  • Certification: CE, RoHS
