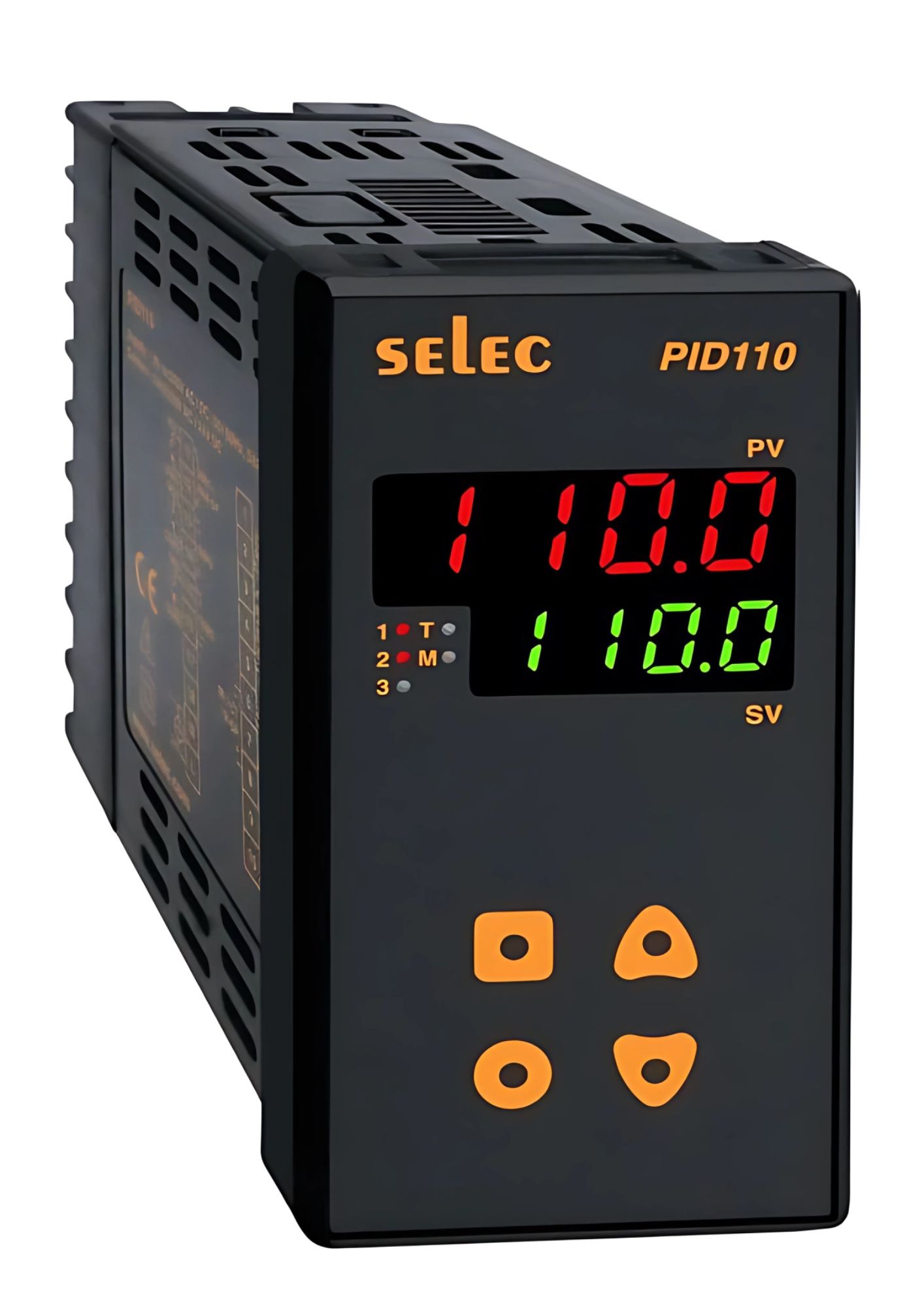

Selec PID110-2-0-04, 4+4 Digit Dual Display PID Temperature Controller, 4~20mA, 2 Relay Output With RS485 Communication, Size 96x48mm, Panel Mount
Selec PID110-2-0-04, 4+4 Digit Dual Display PID Temperature Controller, 4~20mA, 2 Relay Output With RS485 Communication, Size 96x48mm, Panel Mount

Selec PID110-2-0-04, 4+4 Digit Dual Display PID Temperature Controller, 4~20mA, 2 Relay Output With RS485 Communication, Size 96x48mm, Panel Mount

In stock
SKU
PID110-2-0-04
Special Price ₹3,078.72 Regular Price ₹6,414.00
(18% GST Extra)
Add to Wish List
  • 4 digit Dual bright display Advance PID temperature controller
  • Universal Input (TC: J, K, T, R, S/ RTD: PT100)
  • Signal input: (-5 to 56mV, 0 to 10V DC, 0 to 20 mA DC)
  • ON-OFF/Auto tune PID control
  • 3 set point
  • 5A relay control output
  • Dual Auxiliary 5A Relay output
  • 96 mm x 48 mm size
  • Single step Ramp-Soak functions
  • Panel mount
  • 90 to 270V AC/DC supply voltage.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: 7 Segment LED Dual Display
  • Display Configuration: 4+4 digits
  • Type of Inputs: Thermocouple: (J, K, T, R, S, C, B, N, L, U, W, Platinel II) RTD: (PT100) Single Input (DC) (-5 to 56mV, 0 to 10V, 0 to 20mA) (Selectable)
  • Resolution: TC / RTD : 1/ 0.1 Analog input : 1 /0.1/ 0.01/ 0.001
  • Accuracy: For TC (J, K, T) inputs: (0.25% of F.S. ±1) For R & S inputs: (0.5% of F.S. ±2) (20min of warm up time) For RTD inputs: (0.1% of F.S ±1)
  • Control Output: Relay and Current : 4 to 20mA DC (max load 500E)
  • Auxiliary Output: Relay
  • Control Mode: Autotune PID / ON-OFF
  • Feature: Single step ramp soak
  • Supply Voltage: 90 to 270V AC/DC
  • Size: 96 x 48mm
  • Mounting Type: Panel Mount

No specifications available for this product.
